Installation To Wood Joist Finished Ceilings,
Exposed Wood Joists, or Wood Beam Ceilings

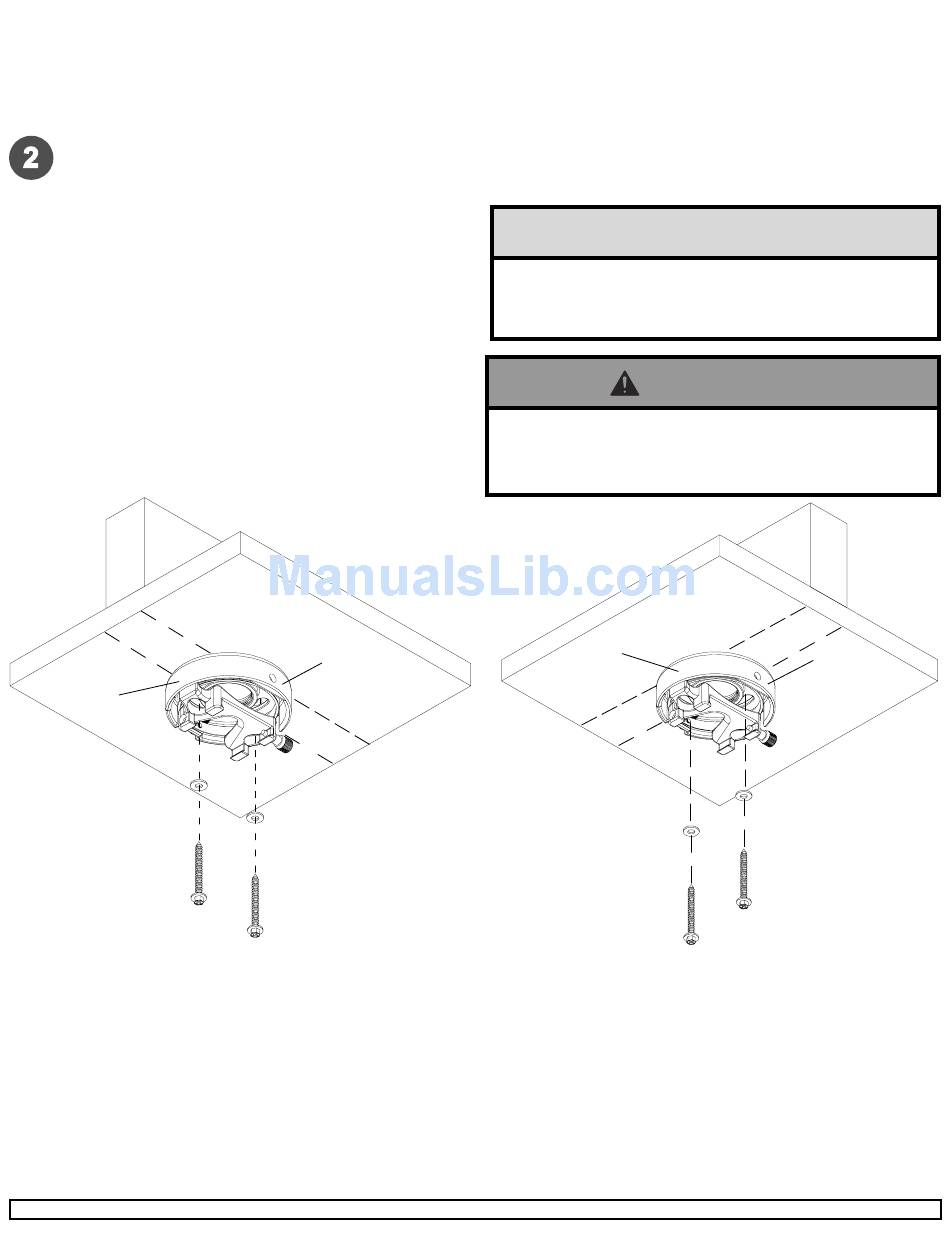

Drill two 5/32" (4 mm) dia. holes to a minimum depth of 2.5" (64 mm). Attach projector mount assembly (A) with two
#14 x 2.5" (6 mm x 65 mm) wood screws (F) and two flat washers (E) as shown in figure 1 or figure 2 depending
on joist orientation. Tighten wood screws (F) using 3/8" (10 mm) socket wrench until projector mount assembly (A)
is firmly attached.
Note: Be sure to drill holes into the joist CENTER!
Skip to step 6.
WOOD JOIST
A
Visit the Peerless Web Site at www.peerlessmounts.com
FRONT OF
MOUNT
E
F
figure 1
CAUTION
• Do not tighten screws with excessive force.
Overtightening can cause damage to mount. Tighten
screws to 40 in. • lb (4.5 N.M.) maximum torque.
• Installer must verify that the ceiling will safely support
the combined load of equipment and all attached
hardware and components.
A
3 of 7
For customer service call 1-800-729-0307 or 708-865-8870.
WARNING
FRONT OF
MOUNT
E
F
figure 2
ISSUED: 10-13-05 SHEET #: 055-9445-2 03-31-06
WOOD JOIST
