Summary of Contents for NextBase SDV285-SD

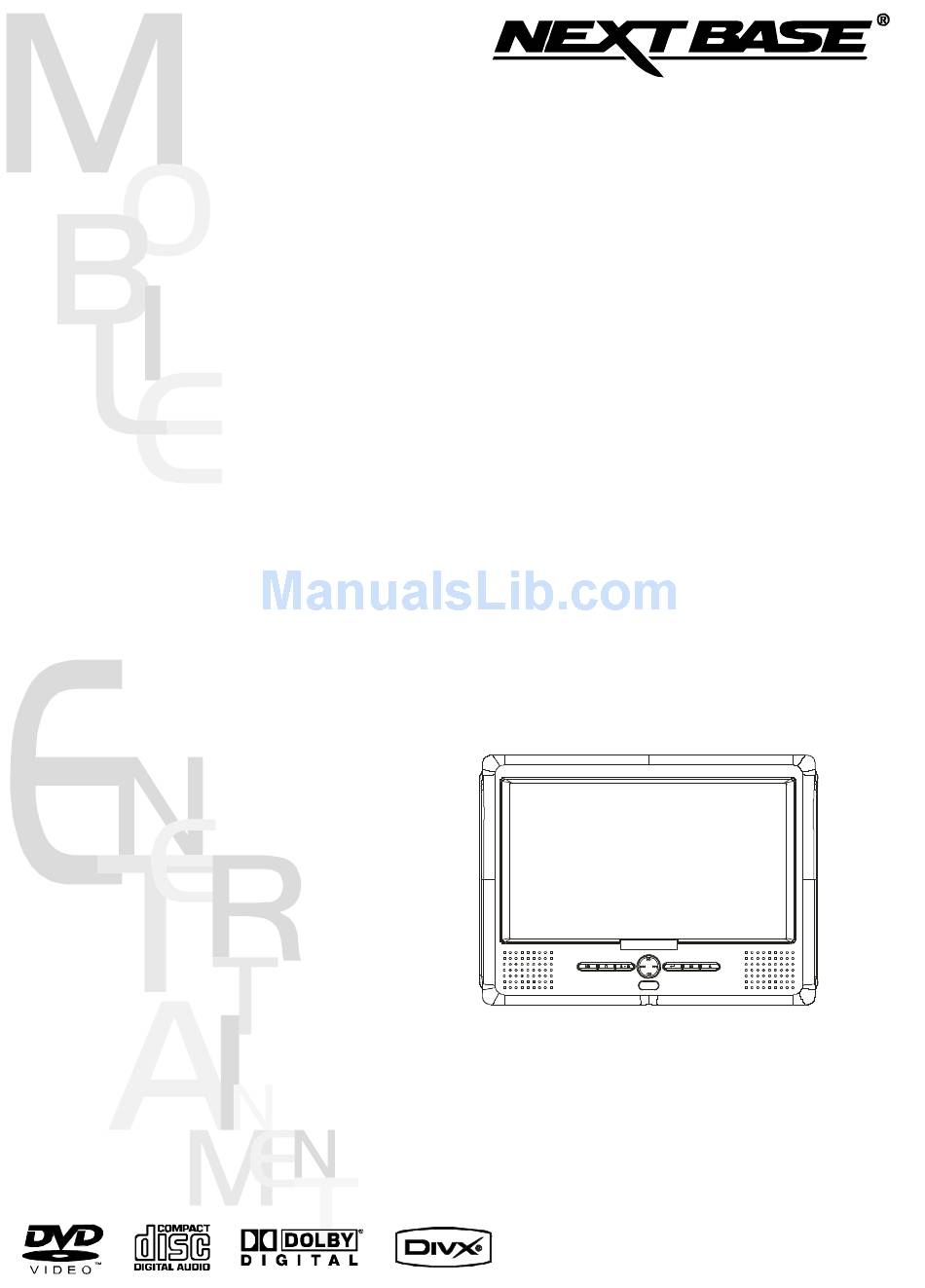

- Page 1 MODEL NO. SDV285-SD O P E R AT I N G I N S T R U C T I O N S...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Page 3 PRECAUTIONS Thank you for purchasing this Portable DVD player. Please read this manual carefully before operating and reserve it for future reference. It will be helpful to you if you encounter any operational problem. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, WARNING: DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED...
- Page 4 PRECAUTIONS CA UTION : These servicing instructions are for use by qualified service personnel only.To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. WA RNING: CA UTION : CAUTION...
- Page 5 PRECAUTIONS MACROVISION: This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
-
Page 6: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS PRECAUTIONS............... TABLE OF CONTENTS TABLE OF CONTENTS........... CAUTIONS ON USING CAUTIONS ON USING THIS PLAYER......THIS PLAYER DISCS PLAYABLE TYPES OF DISCS PLAYABLE ON THIS PLAYER..PACKAGE CONTENTS PACKAGE CONTENTS........... PARTS AND FUNCTIONS LIQUID CRYSTAL DISPLAY........... MAIN UNIT CONTROL SECTION........ - Page 7 TABLE OF CONTENTS THE AV IN/OUT FUNCTION CHANGING FROM AV OUT TO AV IN......BASIC OPERATIONS TURNING ON THE POWER.......... TURNING OFF THE POWER........LOADING............... PLAYBACK..............STOP PLAYBACK............PAUSE PLAYBACK............PLAYING AT FAST SPEED..........PLAYBACK IN SLOW MOTION........A-B/REPEAT PLAYBACK..........ZOOM FUNCTION............
-
Page 8: Cautions On Using
CAUTIONS ON USING THIS PLAYER CAUTIONS ON USING THIS PLAYER 1. DO NOT MOVE THE PLAYER DURING PLAYBACK During playback, the disc spins at high speed. So do not lift or move the player. Doing so may damage the disc. 2. - Page 9 CAUTIONS ON USING THIS PLAYER 7. WHEN USING WITH CAR POWER CABLE IN CARS Please turn on the engine and then connect with the car power cable for using. 8. WHEN PUSHING IN AND DRAGGING OUT THE TRAY The pick up and tray of the player are precise components and are designed to be exposed outside.
-
Page 10: Discs Playable
DISCS PLAYABLE TYPES OF DISCS PLAYABLE ON THIS PLAYER The discs listed on the table below can be played on this player without an adapter. The marks shown on the table below are indicated on the disc's label, package or jacket. Note: Do not support 8 cm discs. -
Page 11: Package Contents
PACKAGE CONTENTS PACKAGE CONTENTS After unpacking, first check the contents of your DVD player package as listed below: Operating manual Main unit AC / DC adapter Audio and video cables C ard -typ e remote control unit Bat ter y C ar p ower cable A ccessories bag C ar b ag... -
Page 12: Parts And Functions
PARTS AND FUNCTIONS LIQUID CRYSTAL DISPLAY The portable DVD player is equipped with a liquid crystal display. 1. Liqu id cr y stal display 2. Spea kers 3. Cont rol se ction Control buttons 4. Remote contro l sen sor The remote control signals are received from here. - Page 13 PARTS AND FUNCTIONS 4. L eft / p revio us button Press it to move left at MENU and SETUP status. Press it to locate at the previous track or chapter when playing. 5. R ight / next butt on Press it to move right at MENU and SETUP status.
-
Page 14: Main Unit Left Side
PARTS AND FUNCTIONS MAIN UNIT LEFT SIDE 1. P hone jack For connecting a stereo earphone or an amplifier. 2. V ideo in/ou t jac k Input or output video signals to connected device by setting AV IN/OUT mode value. The included AV cable is connected here. 3. -
Page 15: Main Unit Rear Side
PARTS AND FUNCTIONS MAIN UNIT REAR SIDE 1 . Sup por t The unit can stand with this device. HOW TO STAND Pull out the support. Draw out the support to a proper position . Pull down the button to lock it. U NL O UNL OCK L O C K... -
Page 16: Remote Control Unit (Frequently Used Buttons)
PARTS AND FUNCTIONS REMOTE CONTROL UNIT (FREQUENTLY USED BUTTONS) : Fast forward AUDIO SUBTITLE EJECT : Fast backward SETUP ANG E L 4. PLAY/PAUSE b utton Use this button to play or pause SEARCH playback. PREV NEXT STOP 5 . MENU bu tton Press this button to display the PLAY/PAUSE FW D... -
Page 17: Remote Control Unit (Other Buttons)
PARTS AND FUNCTIONS REMOTE CONTROL UNIT (OTHER BUTTONS) button to play tracks or the entire disc repeatedly. AUDIO SUBTITLE EJECT 7. Num ber b utton s Press these buttons to input numbers. SETUP ANG E L Pressing the SHIFT button to switch from function to number if necessary. -
Page 18: Notes On Using The Remote Control Unit
PARTS AND FUNCTIONS NOTES ON USING THE REMOTE CONTROL UNIT Do not drop or step on the remote control unit or subject it to shocks. Note that the remote control unit may not work if there are obstacles between it and the remote sensor. -
Page 19: Names Of Battery Parts And Their Functions
PARTS AND FUNCTIONS NAMES OF BATTERY PARTS AND THEIR FUNCTIONS 1. D C IN connector Connect the power adapter to recharge. 2. B atter y kno b Twist it to tighten/detach the battery pack. 3. B atter y indicator LED When the battery is discharging, LED is off. -
Page 20: Operation Of The Battery Pack
PRECAUTIONS FOR BATTERY PACK OPERATION OPERATION OF THE BATTERY PACK Charge the battery pack fully before using it for the first time. When the surrounding temperature is high, the battery pack may sometimes be unusable due to activation of protection circuitry. When the portable DVD player is used with the battery pack and has no disc or stops for about 10 minutes with power on, it will turn off automatically. -
Page 21: Connecting The Player To A Tv Set
CONNECTIONS CONNECTING THE PLAYER TO A TV SET AUDIO VIDEO yellow black yellow white MOBILE ENTERTAINMENT... -
Page 22: Connecting Adapter To The Dc 12V In Socket
CONNECTIONS CONNECTING ADAPTER TO THE DC 12V IN SOCKET USING THE EARPHONE 1. Set the volume control to minimum sound level. 2. Connect the plug of earphone to the player's " " jack. 3. Adjust the volume control to the preferred sound level. MOBILE ENTERTAINMENT... -
Page 23: Connecting To A Dolby Digital / Dts / Mpeg
CONNECTING THE PLAYER TO OTHER DEVICES CONNECTING TO A DOLBY DIGITAL / DTS / MPEG DECODER OR AN AMPLIFIER WITH BUILT-IN DECODER With this player, you can enjoy powerful Dolby Digital, DTS or MPEG sound. Output the digital signals from the player's digital output to a decoder or amplifier with built-in decoder. -
Page 24: Connecting To A Digital Amplifier That Is
CONNECTING THE PLAYER TO OTHER DEVICES CONNECTING TO A DIGITAL AMPLIFIER THAT IS NOT DOLBY DIGITAL / DTS / MPEG COMPATIBLE Output the digital signals from the player's digital output to a digital amplifier that is not Doby/DTS/MPEG compatible. For instructions of audio settings, refer to AUDIO OUT of AUDIO SETUP. -
Page 25: Connecting To Active Speaker Systems
CONNECTING THE PLAYER TO OTHER DEVICES CONNECTING TO ACTIVE SPEAKER SYSTEMS Main unit left side Black Video/audio cable Yellow (Included) : Signal flow To audio input jacks To video input jacks Active speaker systems MOBILE ENTERTAINMENT... -
Page 26: Recharging The Battery Pack
USING THE BATTERY RECHARGING THE BATTERY PACK Connect the output plug of AC/DC adapter to the battery pack. Connect the AC/DC adapter to the power outlet. When recharging starts, the recharge LED lights is red. The recharge LED turns off when recharging completes. Remove the power cord from battery pack. -
Page 27: Notes For Recharging
USING THE BATTERY NOTES FOR RECHARGING When the battery pack is hot, it may take longer time than usual for recharging or may sometimes be unable to be recharged. Wait for the battery pack to cool down before retrying recharging. If the recharge LED can not be lit, check whether the AC adapter and battery pack are connected firmly to have perfect contact. -
Page 28: Ac Power Operation
USING THE BATTERY If the power is switched on while the battery pack is not fully charged, the player operation may sometimes become unstable. Be sure to charge the battery pack fully before using. The battery pack is being recharged slowly while the player is playing with AC/DC adapter connected. - Page 29 THE AV IN/OUT FUNCTION CHANGING FROM AV OUT TO AV IN You can change the player from AV OUT(Output AV signal to TV, etc) to AV IN(Input AV signal from other device)and use the player as a TFT monitor. The default setting is AV OUT.
-
Page 30: Turning Off The Power
BASIC OPERATIONS TURNING ON THE POWER Connect the AC/DC adapter to power outlet. Connect the DC output plug of the adapter to the DC input jack on the main unit. Keep pressing the ON button on the main unit for about 1.5 seconds. -
Page 31: Loading
BASIC OPERATIONS LOADING Tur n on the player. Push the disc into disc window and the disc will be slotted in automatically. No tes: Set the disc securely. Failure to set it securely could result in damage. Do not use cracked or warped discs. Doing so could result in damage. -
Page 32: Basic Operations
BASIC OPERATIONS PLAYBACK 1. Turn on the power of the player. PLAY/PAUSE 2. Insert a disc correctly. 3. The player will load the disc and play automatically. If the disc cannot be played, push the (PLAY/PAUSE) button. STOP PLAYBACK 1. Press on the key board or STOP button on STOP the remote control while playing... -
Page 33: Playing At Fast Speed
BASIC OPERATIONS PLAYING AT FAST SPEED 1. Press button on the key board or FWD / REV on the remote control during playback. 2. The playback speed will be changed each time you pressing the The speed will be changed to 2X, 4X, 8X, 20X, 1X. -
Page 34: Zoom Function
BASIC OPERATIONS ZOOM FUNCTION 1. Press ZOOM on the remote control during playback. The picture on the screen will be zoomed. ZOOM 2. The zooming rate will be changed each time the zoom button is pressed. The sequence is 2X, 3X, 4X, 1/2X, 1/3X, 1/4X, 1X. SEARCHING FOR A SPECIFIC SCENE 1. -
Page 35: Using The On-Screen Display
BASIC OPERATIONS USING THE ON-SCREEN DISPLAY 1. This DVD video player allows you to view the operational status and disc information on screen. 2. Press OSD button on the remote control during playback. The disc information will be displayed on screen. 3. -
Page 36: Playing A Mp3 Format Disc And Jpeg Cd
BASIC OPERATIONS PLAYING A MP3 FORMAT DISC AND JPEG CD [1 23] 00 8.M P3 0 1 . 1 2 3 0 0 1 . 0 0 8 0 0 2 . 0 1 0 0 3 . 0 5 0 0 4 . -
Page 37: Playing Divx Files
BASIC OPERATIONS PLAYING Di vX FILES Your player is an Official DivX Certified product that plays DivX.5, DivX.4, DivX.3 and DivX.VOD video content, in compliance with DivX Certified technical requirements. NOT E: To guarantee playback of DivX files the audio must be MP3 format. Divx Certified devices can play any interleaved MP3 audio at any bitrate, both CBR and VBR. -
Page 38: Setup The Player
SETUP THE PLAYER GENERAL STEPS OF SETUP 1. Press the SETUP button on the remote control, the main setup menu appears. SYSTEM SE TU P T V SY STE M SC REEN S AVER TV TYP E PAS SW OR D R ATING D E FAU LT E XIT S ET UP... -
Page 39: Screen Saver
SYSTEM SETUP The system setup options are illustrated below: TV SYSTEM If you want to connect the player to a TV, please choose a correct TV system first. AUTO: Choose this setting if your DVD player is connected to a multi-system TV. NTSC: Choose this setting if your DVD player is connected to a NTSC TV. -
Page 40: Tv Type
SYSTEM SETUP SY S TEM S ETUP TV S YS TEM SC RE EN S AV ER TV TY PE PAS S WOR D RATIN G DEFA ULT EX IT SE TUP TV TYPE 16 : 9 (Wide Screen): Choose this setting if your DVD player is connected to a wide screen TV. -
Page 41: Password
SYSTEM SETUP PASSWORD 1. The player is locked with a default password 0000 and you can not change the rating. In order to change the rating, choose th password option and input the correct password to unlock the player. 2. After the player is unlocked, you can choose the rating option and change it, then you can choose password option and change it to a new password with 4-digit numbers and press ENTER button to lock it again. -
Page 42: Osd Language
LANGUAGE SETUP The language setup options are illustrated below: OSD LANGUAGE Highlight OSD LANGUAGE option, and press LEFT/RIGHT/UP/DOWN to choose the OSD language you prefer. Press ENTER to confirm, then the OSD will be displayed in that language. There are 5 optional OSD languages : English, German, Spanish, French and Italian. -
Page 43: Subtitle Language
LANGUAGE SETUP SUBTI TLE LANGUAGE Highlight the SUBTITLE LANGUAGE option, and press LEFT/RIGHT/UP/DOWN to choose the subtitle language you prefer. Press ENTER to confirm. If the disc you are playing has that language available, it will displays subtitles in that language. There are 7 optional subtitle languages: Chinese, English, Japanese, French, Spanish, Italian and German. -
Page 44: Audio Out
AUDIO SETUP AUDIO OUT Highlight the AUDIO OUT option, and press LEFT/RIGHT/UP/DOWN to choose the audio output mode you prefer. Press ENTER to confirm: There are 3 optional audio output modes: SPDIF/OFF, SPDIF / RAW and SPDIF/ PCM. SPDIF/OFF: Choose this setting to output analog signal, and there will be no signal outputted from optical jack. -
Page 45: Brightness
VIDEO SETUP The video setup options are illustrated below: BRIGHTNESS Use the UP and DOWN buttons to move the scroll and adjust the brightness. VID EO S ETU P BR IGH TNES S CON TR AS T SATU RATION EX IT SE TUP CONTRAST Use the UP and DOWN buttons to move the scroll and adjust the contrast. -
Page 46: Hue
VIDEO SETUP Use the UP and DOWN buttons to move the scroll and adjust the hue. VIDEO SETU P BR IGH TNESS CON TRAS T SATURATI ON EX IT SE TUP SATURATION Use the UP and DOWN buttons to move the scroll and adjust the saturation. VIDEO SETU P BR IGH TNESS CON TRAS T... -
Page 47: Dynamic Range
DIGITAL SETUP The digital setup options are illustrated below: DYNAMIC RANGE Choose this setting to adjust the line out compressing ratio and get different effects. If adjusting to FULL, the audio signal peak value will be compressed to be minimum; while adjusting to OFF, to be maximum. -
Page 48: Divx Vod
DIGITAL SETUP DivX VOD DivX VOD files are downloaded after paying a rental from certain commercial websites. Prior to downloading a VOD you need to input the registration number of your DVD player on the purchase form on the site. Write down the VOD 8-character registration number so that you can fill in the form on the website you purchase your DivX VOD files from. -
Page 49: Size And Parameter
OTHERS SIZE AND PARAMETER Product name: PORTABL E DVD playe r Power: DC1 2V Consumption: <10W Audio out: R/L 2ch,OPTICA L Video out: Com posite 231 X 170 X 26m m Size: Weight: 73 0 g (W /O bat tery) MOBILE ENTERTAINMENT... -
Page 50: Trouble Shooting
OTHERS TROUBLE SHOOTING Symptoms Possible causes Remedies Load the disc with the Load the disc label side up, and firmly incorrectly. pressed into center. The disc does Make sure the disc is Disc is dirty or not play free from scratches or scratched. - Page 51 SDV285-SD-PS830N-S-ENG-NB-B0...
