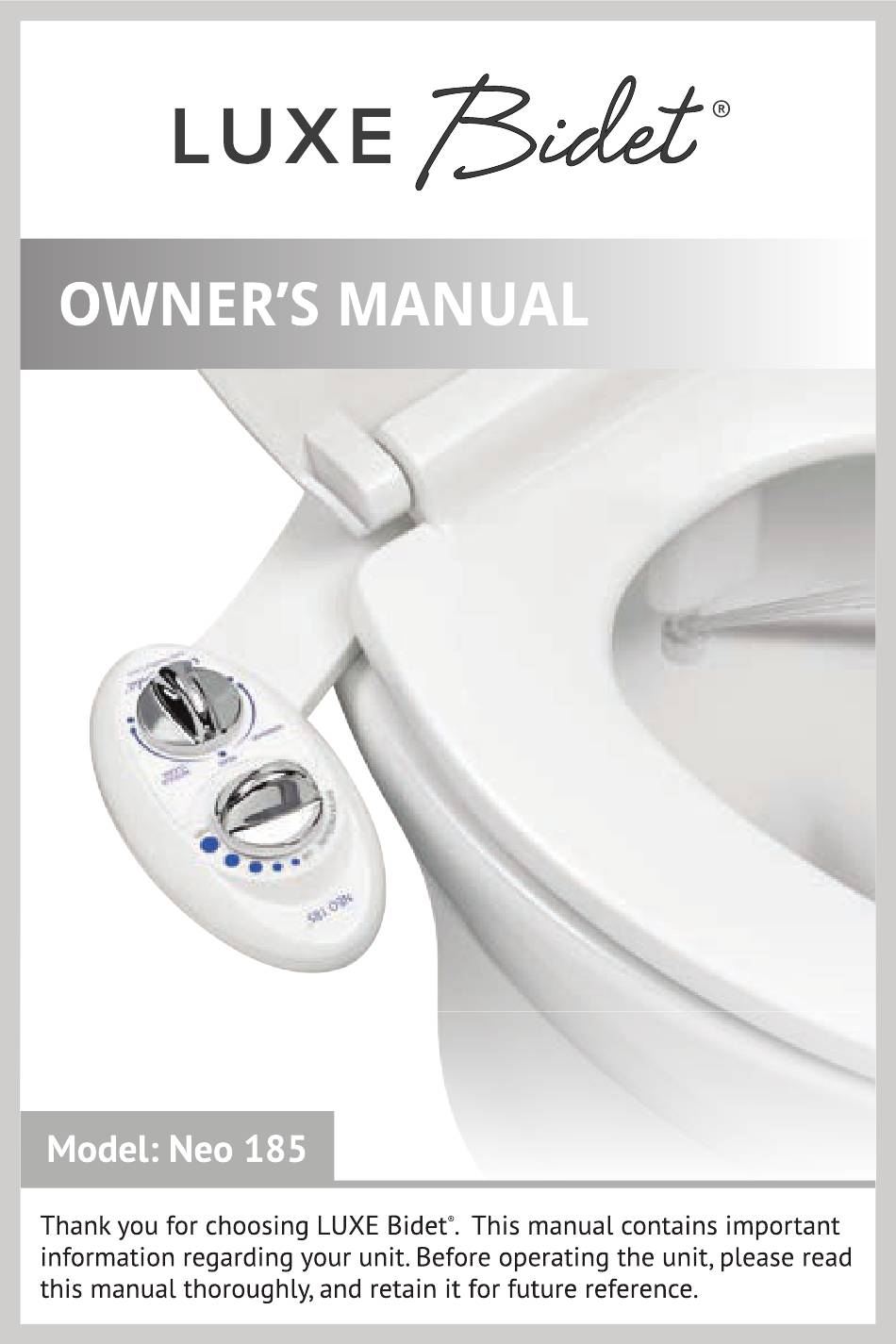

- Page 1 L x E/3dcZ OWNER'S MANUAL Model: Neo 185 Thank you for choosing LUXE Bidet'. This manual contains important information regarding your unit. Before operating the unit, please read this manual thoroughly, and retain it for future reference.
- Page 3 LUXEBéclet TABLE OF CONTENTS PRODUCT INFORMATION Product Features page 1 Why LUXE Bidet?..page 2 Specifications page 3 Product Dimensions page 3 Parts List page 4 PRODUCT INSTALLATION Before Installation . page 5 Installation page 7 PRODUCT OPERATION Troubleshooting...
- Page 4 PRODUCT INFORMATION PRODUCT FEATURES Dual Nozzle Design The LUXE Bidet Neo 185 is equipped with dual nozzles rear and frontal wash. The frontal or feminine wash gentler than the rear spray. It can be useful for monthly cycles and is highly...
- Page 5 PRODUCT INFORMATION LUXE BIDET? Protects & Restores Forests Bidets axe zero trees. Help protect our forests! EasyOn Your Skin Water cleans better and more gently than paper. Saves the Septic System With bidets, septic tanks would need to be emptied much less. Good Bottom Line...
- Page 6 PRODUCT INFORMATION SPECIFICATIONS UPC: 850625005153 Retail Size: 17.6 x 7.1 x 4" Retail Package Weight: 2.00 lbs Connection Type: Cold water Water Control: Chrome-plated dial Mode Selection Control: Chrome-plated dial Nozzles: Dual-nozzle Bidet Body Material: ABS resin, plastic bidet inlet Parts Material: 7/8"...
- Page 7 PRODUCT INFORMATION PARTS LIST Bidet Attachment Rubber Washer Note:The 7/8" Plastic connection can sometimes referred to as Metal Body 15/16"but they Connections are the exact same Size. Hybrid Cold Water T-adapter Circular Adjustment Plates (2) (7/8" x 7/8" x 1/2") with Rubber Gaskets (2) SKIJ Code: Hybridu SKU Code: NeoAdjustmentPlote...
- Page 8 (such as those with a curved inner lip) may result in a gap between the toilet seat and bowl after the bidet is installed. If you have a gap that is under I inch, you can install toilet seat bumpers to alleviate the gap. We would recommend the LUXE Bidet@ Toilet Seat Bumpers which can be purchased on www.LuxeBidet.com...
- Page 9 (as pictured below), NOT at the cold water supply valve coming from the wall. Toilet Tank If you do not have access to the fill valve under the Toilet Tank Fill Valve toilet tank, contact LUXE Bidet Customer Support at Cold Water T-adapte 858-360-7780 or customercare@luxebidet.com alternative installation options.
- Page 10 Step 3 - Mount Your LUXE Bidet on the Toilet Place the bidet attachment on the toilet. The adjustment plates will need to line up with the holes on the toilet bowl.
- Page 11 PRODUCT INSTALLATION INSTALLATION (cont.) Step 5 - Disconnect the Water Supply Hose Make sure you have turned off the toilet tank water supply and flushed the toilet to empty the toilet tank if you have not done so already. Place a towel or bucket underneath toilet tank connection to catch any residual water, then disconnect the water supply hose from the toilet tank.
- Page 12 Step 9 -Turn on the Toilet Tank Water Supply Turn on the toilet tank water supply. Step 9 Congratulations! You are ready to use the LUXE Bidet for the first time. Gently turn the water pressure control knob to reach your desired spray pressure. ASSEMBLED...
- Page 13 PRODUCT OPERATION TROUBLESHOOTING Problem Possible Causes Possible Solutions 1. The toilet seat has outer After installing the bidet, 1. f the extra space is 1" or less, install toilet seat bumpers toilet seat does hinge tabs. (available on luxebidet.com). rest flat on the toilet...
- Page 14 PRODUCT OPERATION TROUBLESHOOTING (cont.) Problem Possible Causes Possible Solutions The toilet tank is filling The water supply valve Turn the water supply slower than normal after may not be fully opened. valve clockwise to allow installing the bidet. more water to flow to the toilet.
- Page 15 PRODUCT OPERATION TROUBLESHOOTING (cont.) Problem Possible Causes Possible Solutions Some toilet seat bolts toilet seat bolts Install longer bolts from not properly affix to the shorter than required to toilet seat manufacturer toilet after installing the accommodate bidet. accommodate extra bidet.
- Page 16 PRODUCT OPERATION Do the nozzle(s) always stay out when not in use? The nozzle is retractable and only comes out when the water is turned on. What kind of material is the bidet body made from? LUXE Bidets are made from very strong (yet light and flexible) plastic.
- Page 17 PRODUCT OPERATION FAQ (cont.) What is the purpose of the guard gate? Is it supposed to open automatically? The guard gate shields the nozzle(s) from debris and should remain closed at all times. During use, the nozzle(s) will drop down below the gate and spray water. When you turn off the bidet, the nozzle(s) will automatically retract behind the gate.
- Page 18 Therefore, the owner hereby releases 2Go Products, LLC, the manu- facturer, and sellers of LUXE Bidet@ products from any and all claims for bodily and property damage resulting from such conditions. (6) The owner hereby releases 2Go Products, LLC from any and all claims against...
- Page 19 CONTACT CONTACT If you have any questions or comments, please contact our customer care at any time and we will be able to assist you further. Thank you for choosing LUXE Bidet@. Website: www.LuxeBidet.com Email: customercare@luxebidet.com Phone: 858-360-7780 Fax: 858-876-1559 LUXE Bidet HQ 7770 Regents Rd.
- Page 20 Ver. 22.03.01 Website: www.LuxeBidet.com Email: customercare@luxebidet.com Phone: 858-360-7780 Fax: 858-876-1559 LUXE Bidet HQ 7770 Regents Rd. 113-632 San Diego, CA 92122 United States 0 2Go Products,...
