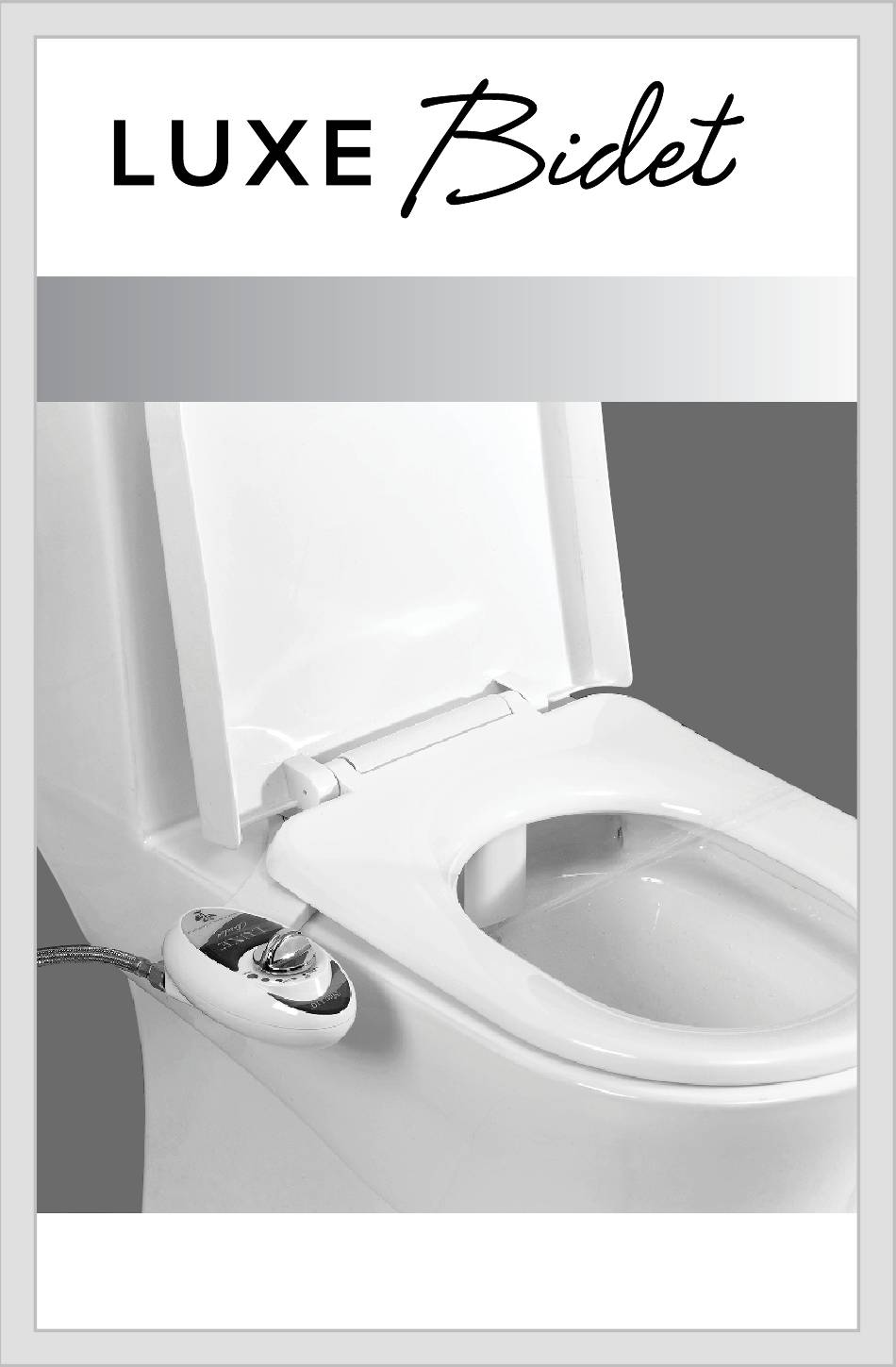

- Page 1 ® OWNER’S MANUAL Model: Neo 110 Thank you for choosing Luxe Bidet . This manual contains important ® information regarding your unit. Before operating the unit, please read this manual thoroughly, and retain it for future reference.
-
Page 2: Table Of Contents
® TABLE OF CONTENTS PRODUCT INFORMATION Product Features page 1 Why Luxe Bidet? page 2 Specifications page 3 Product Dimensions page 3 Parts List page 4 PRODUCT INSTALLATION Before Installation page 5 Installation page 6 PRODUCT OPERATION Troubleshooting page 9... -
Page 3: Product Information

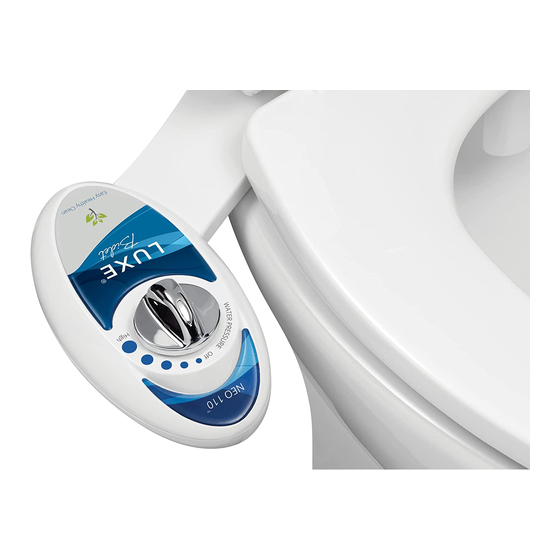

PRODUCT INFORMATION PRODUCT INFORMATION PRODUCT FEATURES PRODUCT FEATURES Single Nozzle Design The Luxe Bidet Neo 110 features a regular wash nozzle that is hygienic and reduces the use of toilet paper. Nozzle Guard Gate The bidet features a convenient, hygienic nozzle guard gate for added protection and easy maintenance. -
Page 4: Why Luxe Bidet
PRODUCT INFORMATION WHY LUXE BIDET? Women Sanitary Needs Very beneficial and relieving solution during that time of month, pregnancy, UTI’s. Privacy, Comfort, and Dignity Improves autonomy and increases bathroom independence for seniors and those with restricted mobility or other medical needs. -
Page 5: Specifications
PRODUCT INFORMATION SPECIFICATIONS UPC: 895063002777 (blue), 850625005092 (white) Retail Box Size: 17.6 x 7.1 x 4” Retail Package Weight: 1.65 lbs Connection Type: Cold water Water Control: Chrome-plated dial Mode Selection Control: None Nozzles: Single-nozzle Bidet Body Material: ABS resin, plastic bidet inlet Parts Material: 7/8”... -
Page 6: Parts List
PRODUCT INFORMATION PARTS LIST Neo 110 Bidet Attachment Cold Water T-adapter Circular Adjustment Plates (2) (7/8” x 7/8” x 1/2”) with Rubber Gaskets (2) 1/4” 1/2” 15” Cold Water Bidet Hose (1/4” x 1/2”) 1/4” 1/2” Wrench Teflon Tape (1/4” x 1/2”) -
Page 7: Product Installation
(as pictured below), NOT at the cold water supply valve coming from the wall. If you do not have access to the fill valve under the toilet tank, contact Luxe Bidet Customer Support at 858-360-7780 and we may be able to provide alternative installation options. -
Page 8: Installation
Remove the toilet seat and toilet seat bolts and nuts and set them aside. Step 2 Step 3 - Mount Your Luxe Bidet on the Toilet Place the bidet attachment on the toilet. The adjustment plates will need to line up with the holes on the toilet bowl. - Page 9 PRODUCT INSTALLATION INSTALLATION (cont.) Step 5 - Disconnect the Water Supply Hose Make sure you have turned off the toilet tank water supply and flushed the toilet to empty the toilet tank if you have not done so already. Place a towel or bucket underneath the toilet tank connection to catch any residual water, then disconnect the water supply hose from the toilet tank.
- Page 10 Step 9 - Turn on the Toilet Tank Water Supply Turn on the toilet tank water supply. Step 9 Congratulations! You are ready to use the Luxe Bidet for the first time. Gently turn the water pressure control knob to reach your desired spray pressure. ASSEMBLED UNIT...
-
Page 11: Product Operation
PRODUCT OPERATION TROUBLESHOOTING Problem Possible Causes Possible Solutions After installing the bidet, 1. The toilet seat has outer 1. If the extra space is 1/2” the toilet seat does not hinge tabs. or less, install toilet seat rest flat on the toilet bowl. 2. - Page 12 PRODUCT OPERATION TROUBLESHOOTING (cont.) Problem Possible Causes Possible Solutions The toilet tank is filling up The water supply valve Turn the water supply slower than normal after may not be fully opened. valve clockwise to allow installing the bidet. more water to flow to the toilet.
- Page 13 PRODUCT OPERATION TROUBLESHOOTING (cont.) Problem Possible Causes Possible Solutions The toilet seat bolts do Some toilet seat bolts are Install longer toilet seat not properly affix to the shorter than required to bolts that will accomodate toilet after installing the accomodate the bidet.
-
Page 14: Faqs
PRODUCT OPERATION Do the nozzle(s) always stay out when not in use? The nozzle is retractable and only comes out when the water is turned on. What kind of material is the bidet body made from? Luxe Bidets are made from very strong (yet light and flexible) plastic. The smooth, high quality plastic is easy to clean and looks great on any toilet. - Page 15 PRODUCT OPERATION FAQ (cont.) What is the purpose of the guard gate? Is it supposed to open automatically? The guard gate shields the nozzle(s) from debris and should remain closed at all times. During use, the nozzle(s) will drop down below the gate and spray water. When you turn off the bidet, the nozzle(s) will automatically retract behind the gate.
-
Page 16: Warranty
flooding. Therefore, the owner hereby releases the manufacturer and sellers of Luxe Bidet from any and all claims for bodily and property damage resulting from such conditions. -
Page 17: Contact
CONTACT CONTACT US If you have any questions or comments, please contact our customer care at any time and ® we will be able to assist you further. Thank you for choosing Luxe Bidet Website: www.LuxeBidet.com Email: customercare@luxebidet.com Phone: 858-360-7780... - Page 18 Website: www.LuxeBidet.com Email: customercare@luxebidet.com Phone: 858-360-7780 Fax: 858-876-1559 Luxe Bidet HQ 7770 Regents Rd. 113-632 San Diego, CA 92122 United States...
