LUXE BIDET Neo250 Assembly Instruction

LUXE
Assembly Instruction
LUXE

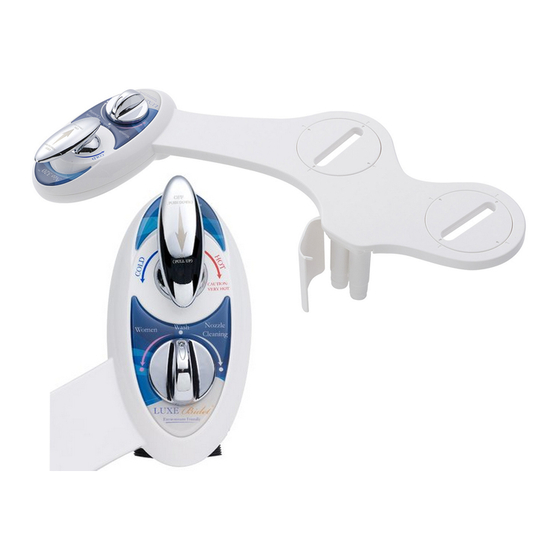

NAMES AND FUNCTIONS OF PARTS
*Please note: illustrations may vary depending on the model
Water Flow Control Handle
Nozzle Mode Knob
Cold & Hot Water Inlet
LUXE
LUXE
Installation Tools
You May Need
Wrench
Screwdriver(flat)
PARTS
LUXE
Flexible Metal Braided Hose Plastic T-Adapter
(Cold Water)
1/2" T-Adapter Connection
Rubber Washer
15/16"
22" Length
1/4" Bidet Connection
15/16"
Polyurethane Hose
Metal T-Adapter
LUXE
(Hot Water)
3/8"
Sink Hose
Bidet Hose
Connection
Connection
8 mm
Metal T-Adapter
Wing
Sink Water
Nut
Connection
3/8"
(Wall Outlet)
Rubber Washer
Bidet
Bidet
R
Bidet
Bidet
Adjustable Plates
Bidet
Femine Nozzle
Wash nozzle
Nozzle Guard Gate
OPTIONAL PARTS
Flexible Water Supply Hose
(Cold Water)
Bidet
15/16" Toilet Tank Connection
Note: You may not need to
Toilet Tank Connection
use this part from the kit since
a typical water connection is a
flexible metal hose with a15/16"
Bidet Hose
toilet tank connection and 9/16"
1/2"
Connection
toilet water supply connection.
9/16" Toilet Water
Toilet Hose Connection
Supply Connection
Hot Water Inlet Cap
(Hot Water)
with Rubber Washer
1/4"
Bidet
Metal
Connection
Wing Nut
8 mm
Connection
Note: You only need this part if you
do not connect the hot water. See
troubleshooting for more details.
10' Length
LUXE
LUXE
NEO250 & NEO320
Toilet
Water LUXE
Supply
Valve

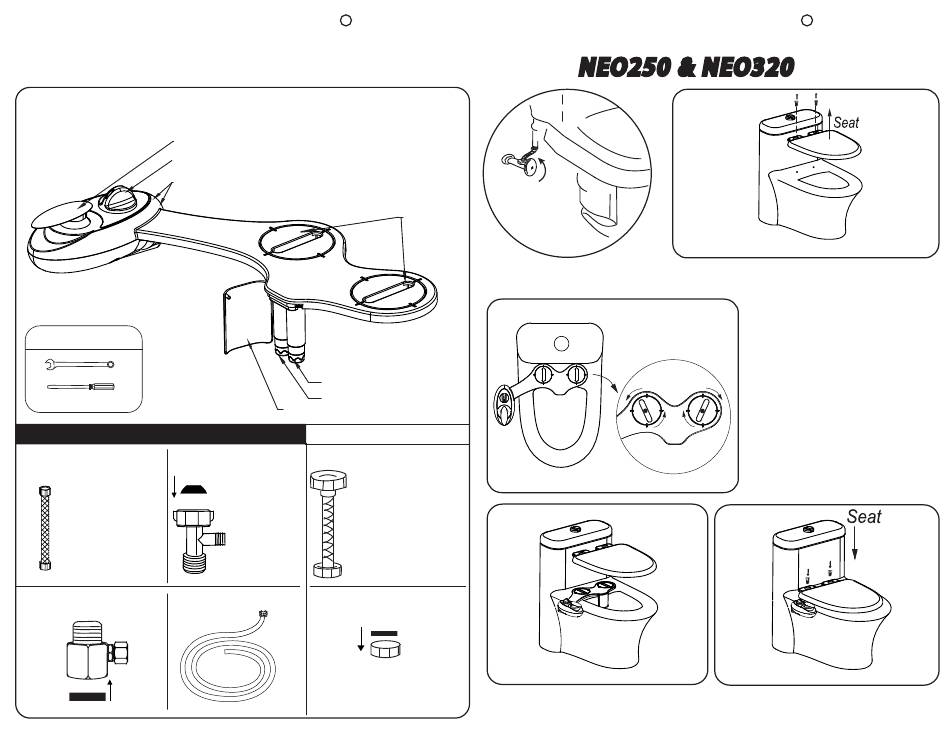

1
Shut off the toilet water supply.
Flush toilet to empty the tank.
Top View of Toilet
LUXE
LUXE
3
LUXE
4
Bidet should now be aligned with
the coupling holes.
Bidet
R
TM TM
2
Remove the seat by unscrewing the seat.
Place the bidet on the toilet.
Plates may be adjusted
depending on where the two
holes in the back of the toilet are.
5
Screw the seat back on to the bidet
and the toilet.
