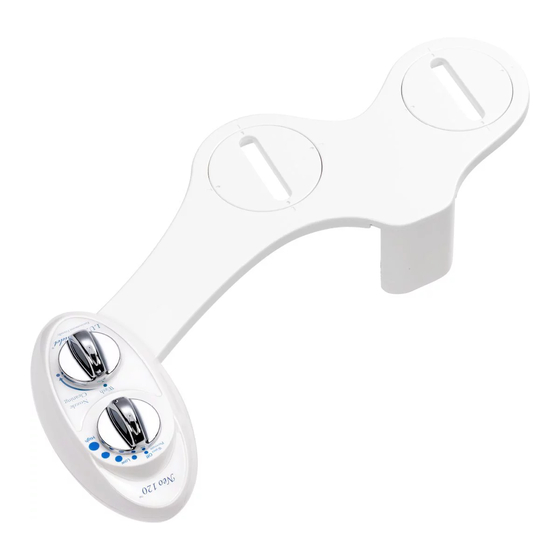

LUXE BIDET NEO110 Assembly Instruction

LUXE
Assembly Instruction
LUXE

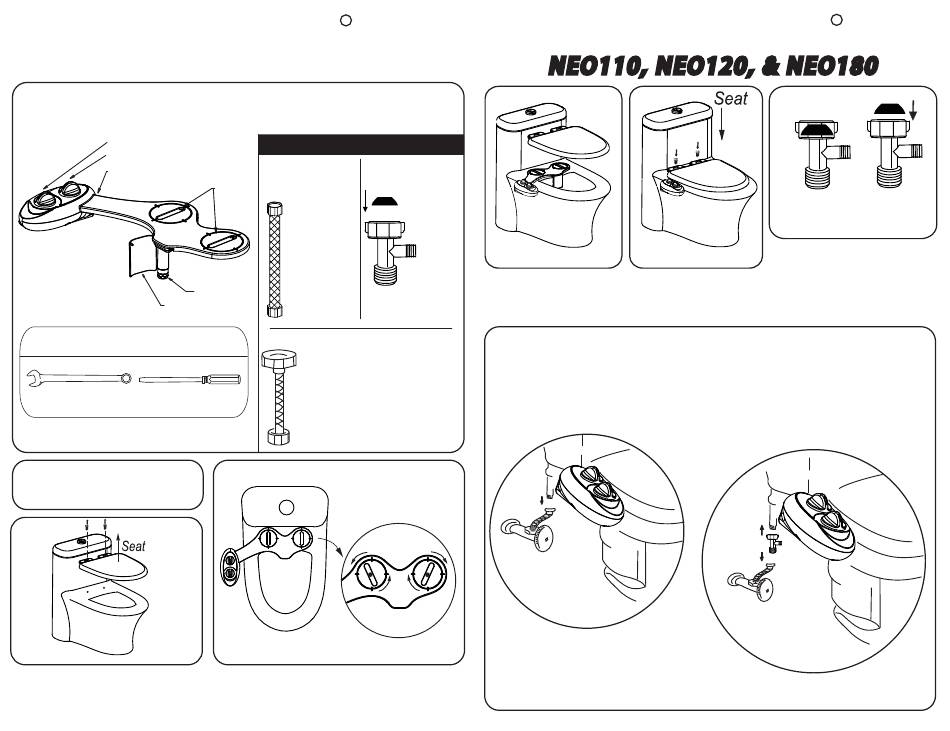

NAMES AND FUNCTIONS OF PARTS
*Please note: illustrations may vary depending on the model
Water Flow Control Knob
Nozzle Mode Knob
Water Inlet
LUXE
Nozzle Guard Gate
LUXE
Installation Tools You May Need
Screwdriver(flat)
Wrench
LUXE
1
Shut off the toilet water supply.
Flush toilet to empty the tank.
LUXE
2
Remove the seat by
unscrewing the seat.
Bidet
Bidet
R
Bidet
PARTS
Flexible Metal
Adjustable Plates
Braided Hose
Bidet
1/2" T-Adapter
Connection
22" Length
Wash Nozzle
1/4" Bidet
Connection
Bidet
Flexible Water Supply Hose
15/16" Toilet Tank Connection
Note: You may not need to use this
part from the kit since a typical water
connection is a flexible metal hose with
a15/16" toilet tank connection and
9/16" wall connection.
9/16" Toilet Water Supply Connection
Bidet
Top View of Toilet
3
Place the bidet on the toilet. Plates may be
adjusted depending on where the two holes
in the back of the toilet are.
Plastic T-Adapter
Rubber Washer
Toilet Tank
15/16"
Connection
4
1/2"
Bidet Hose
Connection
Bidet should now be
15/16" Toilet Hose aligned with the
Connection
coupling holes.
7
Connecting Water Supply
7a: Make sure you have shut off the toilet water supply and flushed the
toilet to empty the tank. Disconnect the water connection from the tank.
7b: Connect the plastic T-adapter to the water supply as shown in figure 7b.
Toilet
Water
Supply
Valve
Tip: Do not use excessive force while tightening the connection. Hand tighten
then use a wrench to gently tighten one quarter or half-turn more.
Bidet
LUXE
LUXE
TM
NEO110, NEO120, & NEO180
LUXE
5
Screw the seat back
on to the bidet and
the toilet.
LUXE
LUXE
7a LUXE
R
TM TM
6a
6b
6a: Make sure that there is a
black rubber washer inserted
at the top of the t-adapter.
6b: If it is not already there,
insert it as shown in figure 6b.
The top of the t-adapter
connects with the water tank.
Toilet
Water
Supply
Valve
7b
