Summary of Contents for HIMO Z16

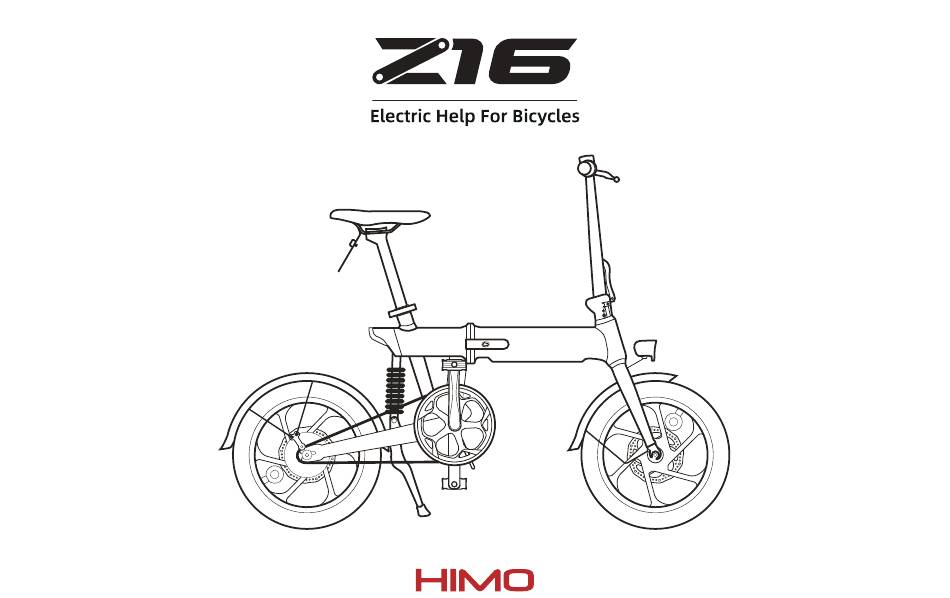

- Page 1 Electric Help For Bicycles...
- Page 2 Precautions Comply with traffic regulations and safety tips Prepare before riding People under the age of 16 are forbidden to drive e ectric bicycles on the road; Power suppy circuit,lighting ghting is good themaxmumspeed of an e bike shall not exceed 15km/h in the non motorized lane Whetherthe front and rear brakes are working...
- Page 3 Electrical schematic diagram Specification S'ze(lengthxwidthxheight) 1400 x 550 x 1050mm Fo ding 840 x 410 x 640rnm Motor Booster sensor Max weight 970mm Power si nal Max weight 22 5kg The cathode Maximum design speed s 25km/h Controller The cathode Assisting rang 80kr-n Brake...
- Page 4 Operation and using Folding step The handle switch is pushed up Turn handlebars to one side The hand e opens outwards Push the pedal inward Flip the pedal up to fold...
- Page 5 Operation and using Folding step push the lever safety to the right The body folds to one side The hand e opens outwards Safety switch Backward flip of handle...
- Page 6 Dashboard ride mode Introduction dashboard Open key,mode key speed 88.8 . The mi eage Total mi eage km/h 558.8 Mile Real-time power Subtotal mileage TRIP Headlight switch,shift up key Shift down key Cycling mode (power/medum/high speed)
- Page 7 Human riding • Power cycling • Long press "M" button • Long press the "M" button for 00.0 start the electric vehicle for 3 3seconds shut down jäl seconds; electric " "to adjust to • Pedal cycling is 0k Press "ECO"...
- Page 8 Battery instructions Battery charging The power supply plug of the charger IS inserted into the charging port of the battery,and the other end of the power supply plug is connected to the power supply; Charging plug When charging,the charger status light is red; When the battery is ful y charged, the charger status light is green and the charge is finished;...
- Page 9 Battery instructions Battery removal and installation nsert the key and turn it to the end in the direction indicated by the arrow Release the battery ock and pull back to take out the battery pool The battery latch Push the battery into the bottom slowly a ong the predetermined...
- Page 10 Parts information Knob Saddle Licence Seat Foldin stem R of seat Foldin Tail Batter Headli Rear disc brak Motor Kickstand Foldable adel Front disc brake...
- Page 11 The battery Instructions before use of lithium battery Before use, confirm that the battery model is the original battery, do not use inother brand battery at w Check the appearance of the lithium battery is n good condition and there is no obvious phenomenon such as damage, liquid leakage, hot water and smoke...
- Page 12 Charging environment • Use the battery to suppot the original factory charger manufacturing line charge, do not use other brand or model charger who line charge • Charge the battery at —400 to ensure that there are no flammable substances around and good ventilation •...
- Page 13 Maintenance and repair Maintenance and cleaning instructions Do not flush with water to avoid potential accidents caused by wetting of internal electronic parts and wiring; Please use neutral cleaner, gently wipe the dirt on the surface of paint or plastic parts with a cloth, and then wipe it clean with a dry cloth Please use lubricating oil to clean the metal parts of the car body for maintenance Do not oil the brake parts to avoid brake failure and danger...
- Page 14 Trouble shooting Solution way Issue Reason Whether the power supply t is oose or not, and Turn on the power whether the power switch is on or not No power supply for vehicles power Battery under voltage, charge the battery Turn on the power n the braking state Whether the brake handle is in the braking state...
- Page 15 RoHS Electric help for bicycles Bike name The name and content of harmful substances in the product Hazardous substance Parts name (Cr(VI)) (PBB) (PBDE) Display Head lamp Tail lamp >< Battery >< Controller C arger INThis form is prepared in accordance with the provisions of SJ/T 1136 O:lndicatesthat the content of the hazardoussubstance in all homogeneous materials of the part is below the limit set by GB/T26572.
- Page 16 The principa . Shang hai HIMO Electric Technology Manufacturers: Tianjin Fuji-ta Technology Co LTD Producer Tianjin Fuji-ta Technology Co LTD Manufacturer add : Taan road and AIMA road, south distr deve opment zone, tianjin Service number: 182-9808...
