Summary of Contents for HIMO C20

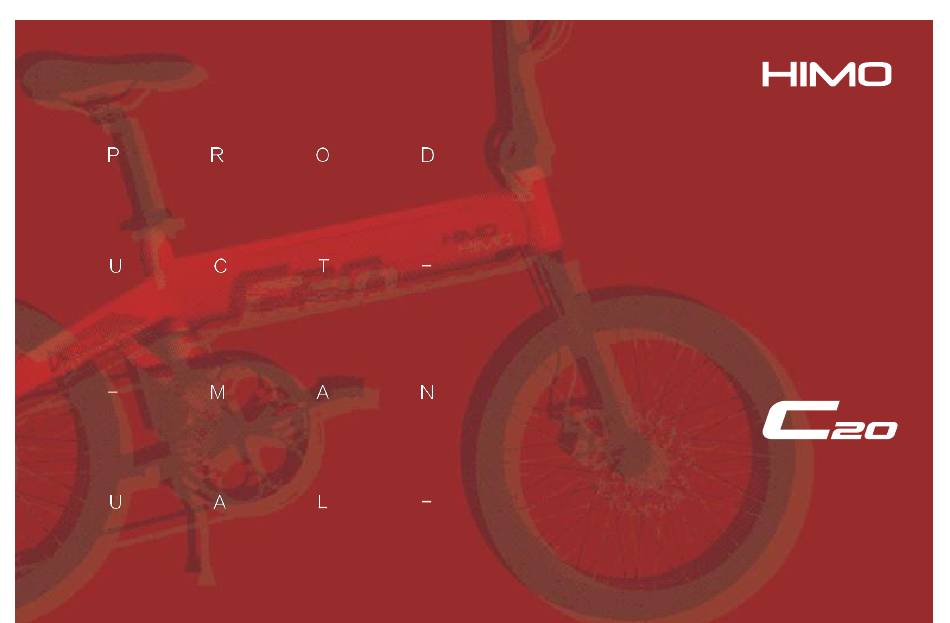

- Page 1 User Manual Please read this manual carefully before riding your bike, do not use it without fully understanding its functions, Sales in mainland China Keep this manual properly.
-
Page 2: Precautions For Usage
◼ Learn how to use the charger and warnings, use the original Precautions for usage authentic charger. ◼ When adjusting the position of the saddle, be careful not to expose the safety marking line of the saddle tube. Strictly obey local traffic rules ◼... -
Page 3: Electrical Schematic
Main technical spec Electrical schematic Dimension(L*W*H) 1470×610×1095MM Front and rear wheel center distance 960MM Max weight 21.6KG Speed 25KM/H ≈ 80KM Assisting distance range Electricity consumption(100KM) 0.72KWH ≤100KG Loading weight This assisting distance range is tested in the condition of full power, loading capacity 75kg, temperature about 25°C, flat road, no wind environment. -
Page 4: Operation And Use
Operation and use Folding steps 1.Push up the handle switch, move it outward. 2.Turn the handle bar to the side. 3.Press the pedal inward. 4.Flip the pedal up and fold it up. Steps of using the pump 1.Take apart the seat 2.Unscrew the riser cap and 3.Align the nozzle tightly with 4.Flip the fixed buckle 90°, hold... -
Page 5: Change Battery
Tail light use and maintenance Change battery ◼ Prepare a suitable cross screwdriver, 2 AAA batteries. Tail light ◼ Remove the tail light, unscrew the front panel screws, open the rear casing and replace the battery. Rear reflector ◼ Fasten the rear casing, tighten the screws, install on the cross screwdriver fixing plate, finish battery changing. - Page 6 Speedometer & riding modes Introduction of speedometer speed power button cumulative mileage(switch) odometer real-time power subtotal mileage(switch) mode button riding mode(assist/middle speed/high speed)
-
Page 7: Normal Riding
Electric assist riding Normal riding ◼ Press the power button for 3s ◼ Press the power button for 3s to start the e-bike; to turn off the e-bike; ◼ The initial gear is the “ECO” ◼ Ride with pedals. assisting riding mode; ◼... - Page 8 Speed transmission instructions Power Speed A diagram of the speed Gears transmission Relaxed Slow Moderate Moderate Gear down Hard Fast Gear up To speed up, start at a lower gear and shift to a higher gear as the speed increases. When going uphill, the speed will decrease, and gear will be lowered to maintain a certain pedal strength.
-
Page 9: Battery Removal And Installation
Charging port Buckle Instructions for Battery Use Battery Removal and Installation After turning the key, the battery will bounce and the battery can be removed. Firstly, place one end of the battery in the Plug battery tank in the direction of the bicycle head. Body charging port The other end of the battery is aligned with the charging port, press it gently and lock it. -
Page 10: About Batteries
About batteries Notes before use of lithium batteries Be sure to confirm that the battery model is the original battery of the vehicle before use. Do not use other brands of batteries at will. Check that the appearance of lithium batteries is intact, and there are no obvious phenomena such as damage, leakage, heating, soaking and smoking. In order to ensure the safety of transportation, the battery capacity is about 30%. -
Page 11: Storage Environment
Charging environment Use the original battery charger for charging, do not use other brands or models of chargers for charging. Please charge the battery at an ambient temperature of 10℃ to 40℃，and ensure that there are no flammable materials around and good ventilate. -
Page 12: Description Of Components
Description of components Meter Variable Speed Dial Saddle Folding handle License plate integrated taillight Battery Sit upright pump Headlight Rear disc brake Controller Motor Folding pedal Front disc brake Speed transmission system... - Page 13 Solutions of trouble Problems Reasons for the problem Solutions When the power is turned on, Vehicles cannot be powered 1.Check whether the plug of the battery is properly connected. vehicle cannot be powered on 2.If the battery is under-voltage, try to charge the battery. Turn the handlebar, but the 1.Vehicle is in braking state 1.Check whether the brake is in braking state...
-
Page 14: Maintenance
MAINTENANCE Regular Checking The locking part and joint part： The tyre wear situation/tyre pressure/driving system Braking system Storage Please avoid keeping the bike outdoor/with strong light or temperature below zero for long period if not using, keep away from fire and strong heat Please store in dry, clean, drafty indoor area with temperature between 10℃～... -
Page 15: After Sales Service
According to《Product quality law of the People's Republic of China》&《Law of the People's Republic of China on the protection of users' rights and interests》and the regulation of after sales service, the after sales service for HIMO electric scooter is as below:... -
Page 16: Warranty Policy
HIMO official customer service center will provide you with paid after-sales service. If the product you purchased cannot be driven due to quality problems, HIMO official customer service center will provide you with repair service. - Page 17 The three-guarantee period has been exceeded; the invoice is missing or changed; the damage caused by force majeure Repair, misuse, collision, neglect, abuse, accident & modification without the approval of HIMO, improper use of this product, or the frame serial number is destroyed The model number of the “Three Guarantees”...
- Page 18 Responsibilities And Obligations Three-guarantee policy standard for components Item Warranty period Depreciation rate Warranty Battery 24 months Frame,front fork 24 months Wheel hub, flywheel, sprocket wheel, crank, center shaft, accordance with 12 months cross, folding riser, seat tube, conditions scooter Battery 3‰...
- Page 19 Based on the "HIMO Electric Scooter Parts Three Guarantees Standard" as the benchmark, exceeding the prescribed service period and scope The user has not complied with the HIMO electric scooter instruction manual, and the product is faulty or damaged due to proper use, driving, maintenance and adjustment.
- Page 20 HIMO Official QR code Design by: Shanghai HIMO Electric Technology Co., Ltd Manufacture by: Tianjin Leizhi Electric Vehicle Co., Ltd. Location: No. 37, Fufa Road, Beijing-Tianjin Technology Valley Industrial Park, Wuqing District, Tianjin Hotline: 400-182-9808...
