- Page 1 Use Manual Please read the instruction manual carefully before using your bike Do not use the bike until you know its performance. Please keep the instruction manual properly...
-
Page 2: Notes For Using
Notes for using Obey traffic rules strictly Preparation before riding According to the regulations on the implementation of the road traffic safety law of the People's Republic Whether the power circuit and lighting are good. of China, e-bike rider must be at least 16 years old. Whether the front and rear brake lever are When driving in the non-motorized lane, the maximum speed shall not exceed 15km/h;On roads good. - Page 3 Electrical schematic Main technical parameters of the bike Dimensions L*W*H 1470×610×1095mm Front and rear wheel center distance 965mm Max weight 21.6kg Maximum design speed 25km/h Motor Assisting rang ≈80km Electric range ≈55km Power signal The cathode Consumes electricity（100KM） 0.654kW・h/100km The controller Booster sensor Loading weight ≤100kg...
-
Page 4: Operation And Use
Operation and use Folding steps 1.Push the handle switch upward and 2.Turn the handlebar to one side 3.Press the pedal inward 4.Flip the pedal and fold up open the handle outwards Steps of using the pump 1. Open the seatclamp, pull out the 2.Unscrew the cap and extract the 3.Put the air nozzle firmly at the 4.Flip the clasp 90 degrees hold the... -
Page 5: Change Battery
Taillight opening and maintenance Change battery Tail light Prepare 1 suitable phillips screwdriver, 2 no. 7 batteries. Remove the tail light, unscrew the front panel screw, open the rear housing, and replace the batt R/reflector Buckle the rear shell, screw well, install it on the fixing ery. Cross screw driver plate, and finish replacing the battery. -
Page 6: Dashboard Introduction
Display and riding mode Dashboard introduction Switch button Speed Mileage accumulated (switching) The speedometer Subtotal mileage (switching) Real-time power Mode button Riding mode (assist/medium speed/high speed) -
Page 7: Normal Riding
Normal riding Electric assist riding Long press the switch for 3 seconds Long press the switch for 3 seconds to shut down the electric car; to start the bike; The first default gear is "ECO" Ride with pedal assisted riding mode; This mode can be started by pedaling for two laps. - Page 8 Transmission using Transmission diagram Gear Power Speed Relaxed Slow - Shift down Moderate Moderate Hard Fast Shift up To speed up, start with a lower gear and shift to a higher gear as you speed up When going uphill, the speed will decrease and the gear will be lowered to maintain a certain pedal strength Gear pointer Downwind will speed up, increase gear to maintain a certain degree of pedal strength...
-
Page 9: Battery Instructions
Battery instructions Charging port Battery removal and installation Buckle Turn the key, the battery pops up, and the battery is taken out First place one end of the battery in the Plug slot Aim the other end of the battery at the charging port, press it gently and fasten Frame charging port the latch... -
Page 10: About Batteries
About batteries Note before use of lithium battery Before use, confirm that the battery model is the original battery of the whole bike, do not use any other brand of battery. Check the appearance of lithium battery intact, no damage, leakage, heat and water, smoke and other obvious phenomena. In order to ensure the safety of transportation, the battery's output power is about 30%. -
Page 11: Storage Environment

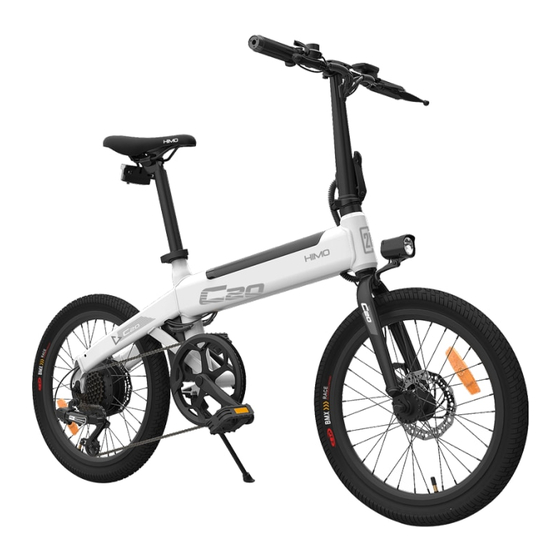

Charger port of the battery Use the original charger to charge the battery. Do not use other brand or model charger to charge the battery. Please charge the battery at the ambient temperature of 10℃ ~ 40℃ to ensure that there are no flammable substances around and good ventilation. - Page 12 Description of component Display Variable speed indicator Saddle License plate integral tail light Folding stem Battery seat upright pump Head light Rear disc brake Controller Motor folding pedal Front disc brake Gear system...
- Page 13 Solutions of trouble Problems Reasons for the problem Solution way 1.Check whether the battery plug is properly inserted When the power is turned on , Bike is not powered the bike can not be powered on 2. Battery undervoltage, charge the battery 1.The bike is in the brake status 2.In the parking status Turn on the power and turn on 1.Whether the brake lever is on the brake 2.Remove P mode...
-
Page 14: Maintenance And Repair
Maintenance and repair Regular bike inspection Whether the fastener is locked or not, whether the joints of all parts are normal: Whether the tread pattern of the tire is worn and cracked, whether the front and rear tire pressure is appropriate, Whether the drive system is smooth;... -
Page 15: Maintenance And Cleaning Instructions
According to <Product quality of the People's Republic of China>&<Law of the People's Repulic of China on the protection of user's right and interests>and the regulation of after sales service,the after sales service for HIMO electric scooter is as below: Free reason in return within 7 days If the goods are rejected or intercepted due to non-quality reasons after shipment, the user shall bear the round-trip freight. - Page 16 The warranty policy During the warranty period, HIMO official customer service center will provide you with free after-sales service.If the service period and scope of "three guarantees" are exceeded, HIMO official customer service center will provide you with paid after-sales service according to the local market situation and maintenance price.
- Page 17 The following circumstances are not within the scope of warranty service, we will provide you with paid after-sales service. Three guarantees of validity have been issued;Missing or changed invoice;Damage caused by force majeure. Repair, misuse, collision, negligence, abuse, accident, modification, incorrect use of this product without HIMO's approval, frame serial number destroyed.
- Page 18 Responsibilities and obligations Three guarantee policy Item Allowance for depreciation The warranty period From the date of receipt and signature, the HIMO authorized after-sales service center will provide after-sales service for Battery 24 month you within the warranty period Natural open welding, off welding, fracture, deformation, paint off...
- Page 19 The HIMO guarantee service standard for electric vehicle parts exceeds the specified service period and scope. Failure or damage of the HIMO electric vehicle product caused by the user's failure to properly use, drive, maintain and adjust the HIMO electric vehicle product according to the instructions.
- Page 20 HIMO official public number The principal:Shang hai HIMO Electric Technology Co. LTD Manufacturers:Tianjin Fuji-ta Technology Co. LTD Manufacturer add:Taian road and AIMA road, south distr development zone, tianjin Service number:400-182-9808...
