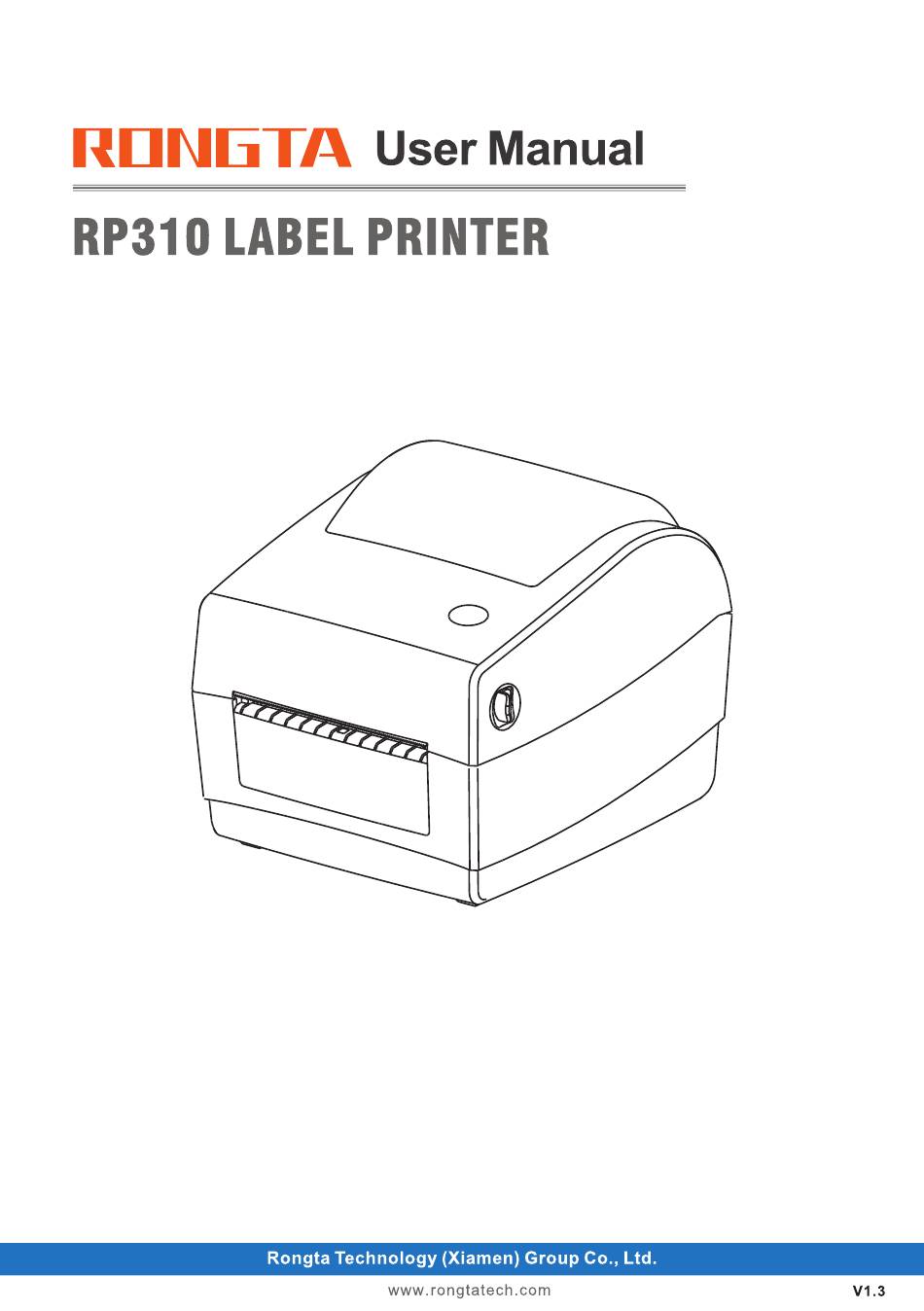

- Page 1 User Manual RP310 LABEL PRINTER Rongta Technology (Xiamen) Group Co., Ltd. www.rongtatech.com...
- Page 2 Driver..........7.3 Label Learning..........11 VIII.Cleaning the Printer.......... 8.1 Cleaning the Printer Head........... 8.2 Cleaning the Sensor............8.3 Cleaning the Printing Rubber Roller........IX. Troubleshooting........ 14 Copyright O Rongta Technology (Xiamen) Group Co., Ltd. All Rights Reserved...
- Page 3 Thank you for purchasing the label printer produced by our company. This label printer provides you with safe, reliable and efficient printing quality at a reasonable economic price. At the same time, RP310 is widely used in supermarkets, catering industry , clothing industry , warehousing industry , etc.due to its super...
- Page 4 II. Safety Instructions Before operating and using the printer, please carefully read the following items and strictly observe the use rules. Please install the printer on a stable surface to avoid printer suffered from any vibration shocks. Do not use and store the printer in places with high temperature, high humidity and high pollution.
- Page 5 Ill. Appearance and Components Front View Rear View FEED Button Upper Cover Paper Feed Port Power Switch Paper Exit Cover lever Power Interface @ USB Interface Inside View Thermal Head Piece Roll Holder - -S Roll Holder Paper Guide L @ Paper Guide R Rubber Roller...
- Page 6 IV. Technical Parameters 4.1 Printing Parameters Model RP310 Thermal line printer printing method 180mm/s Printing speed 40—85 mm(Backingpaper) Paper width Effective resolution 203 dpi Paperthickness 0.05-0.18mm Print width MAX80mm Character size ASCII Font A: 1204 ASCII Font B: 9x17 Chinese...
- Page 7 V. Installation and Operation of Printer 5.1 Printer Unpacking Check the parts: Before use, make sure the accessories are included in the package(the following picture is an example). If any thing is missing, contact the supplier or manufacturer. The specific accessories may not be included depending on the printer model.
- Page 8 PC host 5.3 Loading Paper The RP310 series thermal receipt printer uses 85mm thermal paper rolls and adopts an easy paper loading mechanism, which is very convenient for paper loading. The Installation Method of Thermal Paper is as Follows: (1) Pull out the roll holder, confirm that the print side of paper roll faces upward, and load the paper roll.
- Page 9 (only valid for printers with Bluetooth) The RP310 Bluetooth printer needs to be paired with the main device driving the printer before working, and the pairing process is initiated by the main device. The general pairing method is as follows: (1) Turn on the printer.
- Page 10 VI. The Switch, Key and Indicator Light of Printer Power Switch The power switch controls the flow of power to the printer. The power switch is located on the front side of the printer. When the "-"switch is pressed, the printer is turned on;...
- Page 11 VII. Printer Test 7.1 Print Self-Test Page When the printer is initially installed or there are any problems with the printer, you can run self-test program to confirm the following status: firmware version, printer parameter setting status, print quality, and related setting information of external devices, etc.
- Page 12 7.3 Label Learning Note: In the following cases, the user can perform label positioning learning so that the printer can better position the label: Install and use the printer for the first time. First use of printer after sensor cleaning. Reuse the printer after it is not used for a long time.
- Page 13 VIII.Cleaning the Printer 8.1 Cleaning the Printer Head Clean the print head when one of the following conditions occurs to the printer: (1) Printing is not clear. (2) A vertical column of the printed page is not clear. (3) The paper feeding noise is high. The print head cleaning steps are as follows: (I) Turn off the power supply of the printer, open the upper cover and remove...
- Page 14 8.3 Cleaning the Printing Rubber Roller When one of the following conditions occurs to the printer, the printing rubber roller should cleaned: (1) Printing is not clear. (2) A vertical column of the printed page is not clear. (3) The paper feeding noise is high. The printing Rubber Rollers cleaning...
- Page 15 IX. Troubleshooting The table below shows common problems and solutions for operators. If you have followed the simple troubleshooting methods but the printer is still not functioning properly, please contact the customer service department of your dealer assistance. Solution Cause Fault Phenomenon a.
- Page 16 Rongta Technology (Xiamen) Group Co., Ltd. ADD: No.88, Tonghui South Road, Tongan, Xiamen, China. WEB: www.rongtatech.com TEL: 0086-592-5666129 FAX: 0086-592-5659169...
