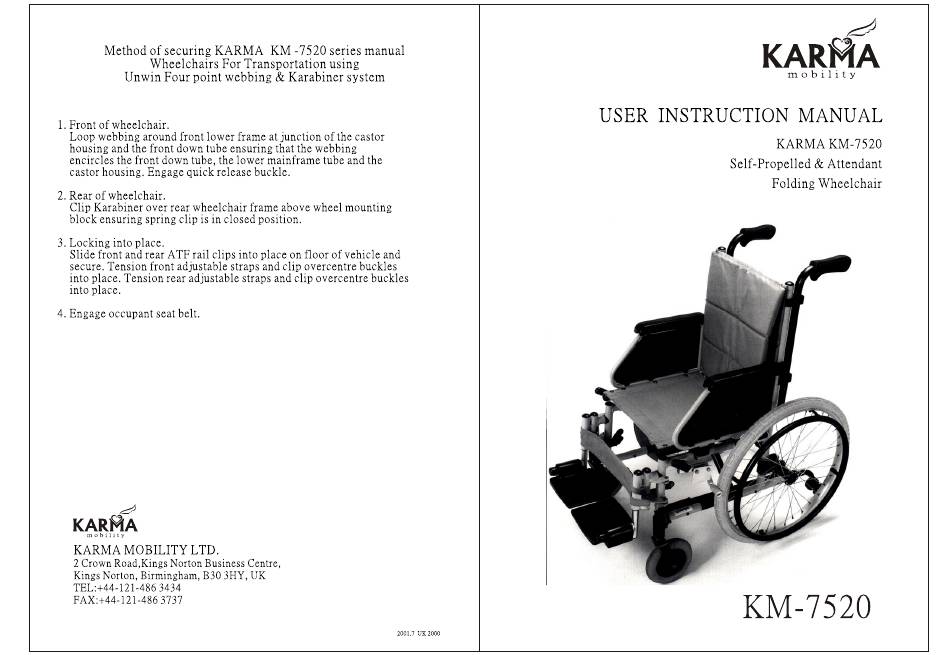

Method of securing KARMA
Wheelchairs For Transportation
Unwin Four point webbing
l. Front
of wheelchair.
Loop webbing around front lower frame at junction
housing and the front down tube ensuring that the webbing
encircles the front down tube, the lower mainframe tube and the
castor housing. Engage quick release buckle.
2. Rear
of wheelchair.
Clip Karabiner over rear wheelchair
block ensuring spring clip is in closed position.
3. Locking into place.
Slide front and rear ATF rail clips into place on floor of vehicle and
secure. Tension front adjustable straps and clip overcentre buckles
into place. Tension rear adjustable straps and clip overcentre buckles
into place.
4. Engage occupant seat belt.
KARMA
mob
i I i t Y
KARMA
MOBILITY
LTD.
2 Crown Road,Kings
Norton Business Centre,
Kings Norton, Birmingham,
B30 3HY, UK
TEL-:+44-121-486
3434
FAX.+44-121-4863737
KM -7520 series manual
using
& Karabiner
system
of the castor
frame above wheel mounting
2001.7 UK2000
KARMA
USER
INSTRUCTION
KARMA
Self-Propelled
Folding
KM-7520
mobility
MANUAL
KM-7520
& Attendant
Wheelchair
Advertisement
Related Manuals for Karma KM-7520
Summary of Contents for Karma KM-7520
- Page 1 KARMA Method of securing KARMA KM -7520 series manual Wheelchairs For Transportation using mobility Unwin Four point webbing & Karabiner system USER INSTRUCTION MANUAL l. Front of wheelchair. Loop webbing around front lower frame at junction of the castor KARMA...
- Page 2 Contents Introduction Model KM-7520 Wheelchair ....Parameters ..1 Safety and Consumer Information General Using the KM-7520 Notes for attendants and patients General 'Mis-use' Specifications Description and features ....Dimensional specifications ......4 . Wheelchair Operation Preparing for Use Getting In and Out •...
- Page 3 Never stand on the footplates when getting in or out of the for stowing in vehicles. Model KM-7520 has quick-release for both chair. rear wheels.
- Page 4 3.2 Dimensional Specifications l. Seat widths available 31 cm 34cm 28cm 2. Seat depth available 2.4 General 'Mis-Use' 3. Seat height at front Please note that our "USER GUIDE" contains a number 4. Overall length 84.5 cautions, any vehicle can cause injury, if misused but will be 5.
- Page 5 Step 4: Folding is completed by releasing the sprung levers and folding down the push handles. 4.1.3 Adjustments To adjust height of armrest pad for KM-7520 To adjust footplate height: Step l: Pull the locking buttons, raise or lower the pad to...
- Page 6 4.2.2 Getting out: 4.3 General Step l: Make sure that the chair is near your final destination. 4.3.1 Attendant pushing and self propulsion Step 2: Back the chair sufficiently to ensure that the castors are Do ensure that the brakes are always on when the chair is not pointing forward, i.e.
- Page 7 Step l: Back the chair to the kerb edge and be careful that the Step 6: Pull back with both hands and push down and forwards back wheels are equally near the edge. with your foot. This will bring the chair onto the back step 2 : Grasping the push handles, gently lower the rear wheels wheels.
- Page 8 Checks should be carried out every week. Fault checkin & maintenance • Examine brake assemblies for wear, damage or misalignment. The brake can be adjusted on the KM-7520 by loosening Maintaining the chair in its correct working order is always round head screw M8x 30 with a small 5mm allen key.
