Adjusting The Angle - Eclipse CB1 Installation Manual

5
Install the wire to the speaker.
6
Install the speaker to the speaker base.
(For TD508 II only)
Caution
• • TD508 II speakers only: Use the screw (binding M5 x
8) that is included with the bracket as the screw
marked 6 .
• • Use the screws (binding M4 x 8)
speaker.
Make sure that the screw installation holes are correct.
• • Be sure to attach the wire securely to the speaker and
the ceiling so that the speaker does not fall down.

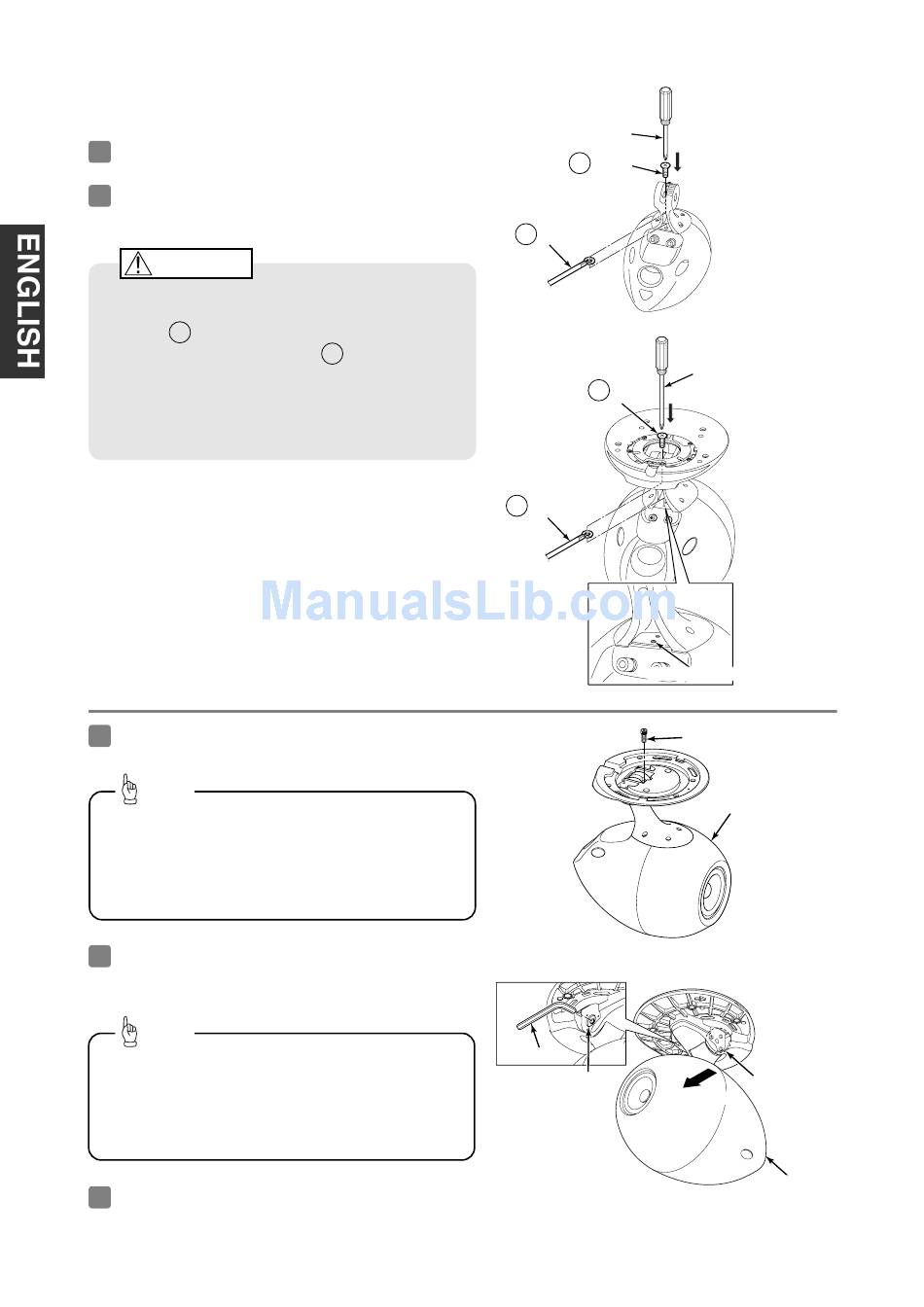

– Adjusting the angle –
7
Remove the neck holding bolt at the base of the
speaker.
Tip
• • The removed neck holding bolt will not be re-used.
• • The neck holding bolt limits the angle of the speaker
when the speaker is set up on the floor, and it
prevents the speaker from tipping over. After
removing it, give it to the customer to keep safely.
8
Use the Allen key which is supplied with the speaker to
loosen the angle adjustment screw underneath the
speaker.
Tip
• • Turn the speaker upside-down when adjusting the
angle of the speaker.
• • The right side in the instructions signifies the right side
of the speaker when looking at it from the front when it
is in its normal position.
9
Slide the speaker to the right slightly to disengage the
tabs of the joint.
For the TD508 II
For the TD510
for the TD510
5
– 6 –
Screwdriver
Screw
6
Wire
3
5 Screw
3 Wire
Screw mounting hole
Neck holding bolt
Allen key
Angle adjustment
screw
Move slightly
[Right side]
Screwdriver
Speaker
Joint
[Left side]
Speaker
