Eclipse CB1 Installation Manual page 12

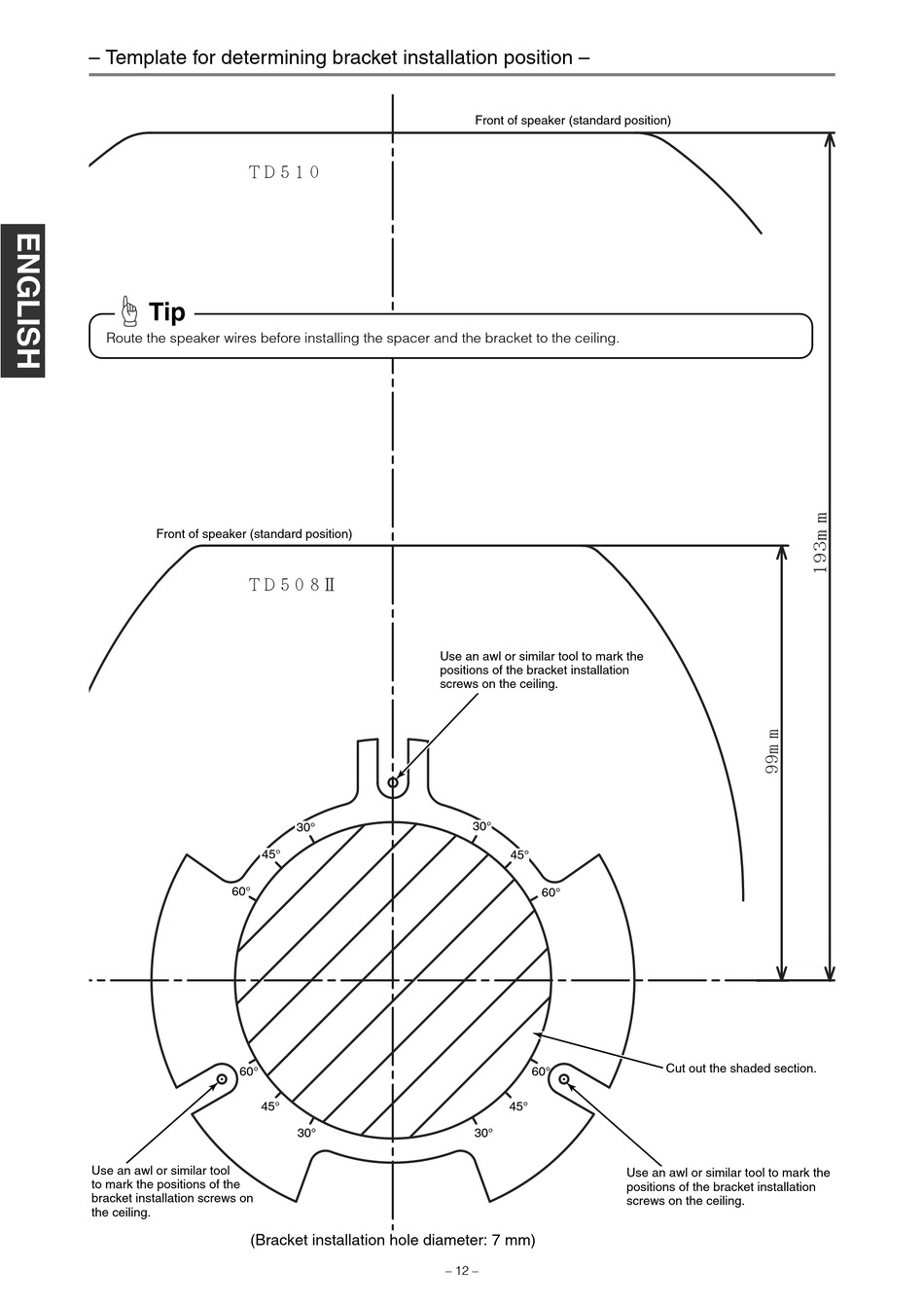

– Template for determining bracket installation position –
Tip
Route the speaker wires before installing the spacer and the bracket to the ceiling.
Front of speaker (standard position)
45°
60°
60°
45°
Use an awl or similar tool
to mark the positions of the
bracket installation screws on
the ceiling.
(Bracket installation hole diameter: 7 mm)
Use an awl or similar tool to mark the
positions of the bracket installation
screws on the ceiling.
30°
30°
– 12 –
Front of speaker (standard position)
30°
45°
60°
60°
45°
30°
Use an awl or similar tool to mark the
positions of the bracket installation
screws on the ceiling.
Cut out the shaded section.
