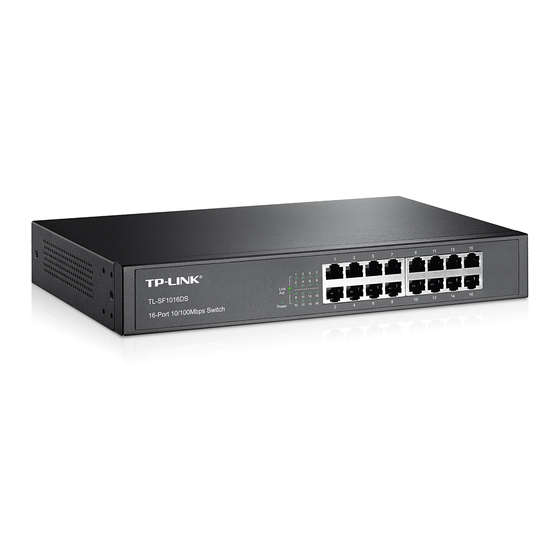

TP-Link TL-SF1016DS User Manual
16/24/48-port 10/100mbps fast ethernet switch
Hide thumbs
Also See for TL-SF1016DS:
- Installation manual (28 pages) ,
- User manual (63 pages) ,
- Installation manual (24 pages)
Related Manuals for TP-Link TL-SF1016DS
Summary of Contents for TP-Link TL-SF1016DS
-
Page 1: User Guide
User Guide TL-SF1016 TL-SF1016DS TL-SF1024 TL-SF1024D TL-SF1048 16/24/48-port 10/100Mbps Fast Ethernet Switch Rev: 2.0.1 7106503501... - Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
-
Page 3: Fcc Statement
Note: As for TL-SF1016DS, TL-SF1016, TL-SF1024D and TL-SF1024, a fuse resistor is used in the “F1” position on the PCB of the power module. The fuse resistor... -
Page 4: Table Of Contents
CONTENTS Package Contents ....................1 Chapter 1 Product Introduction............... 2 Product Overview .....................2 Features ......................2 Chapter 2 Identifying External Components ..........3 Front Panel .......................3 Rear Panel......................3 Chapter 3 Installation ..................5 Precautions.......................5 Installation ......................6 3.2.1 Desktop Installation.................6 3.2.2 Rack Installation..................6 Connect to Ground ...................8 Power on ......................9 Appendix A: Specifications ................ -
Page 5: Package Contents
Mounting screws and two “L” planks Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. TL-SF1016DS and TL- SF1024D do not include mounting screws and two “L” planks. -
Page 6: Chapter 1 Product Introduction
Chapter 1 Product Introduction This chapter describes the features of the model of TL-SF1016/TL-SF1016DS/TL- SF1024/TL-SF1024D/TL-SF1048 16/24/48-port 10/100Mbps Fast Ethernet Switch. TL-SF1016, TL-SF1024 and TL-SF1048 just differ in the size, the number of LED indicators and ports, and all figures in this guide are of TL-SF1016. -
Page 7: Chapter 2 Identifying External Components
100Mbps speed. Not lit indicates working on 10Mbps speed. Note: Because of the difference among the mode of switch, some switches don’t include the 100Mbps indicator, such as TL-SF1048, TL-SF1016DS, TL-SF1024D and a few of TL-SF1016 switch. 2.2 Rear Panel... - Page 8 Grounding Terminal: TL-SF1016 already comes with Lightning Protection Mechanism. You can also ground the Switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detail information, please refer to section 3.3 Connect to Ground. AC Power Socket: Connect the female connector of the power cord here, and the male connector to the AC power outlet.
-
Page 9: Chapter 3 Installation
Chapter 3 Installation 3.1 Precautions To ensure a long-term and stable performance of the Switch, please pay attention to the following before the installation. 1) Safety Requirements • Before cleaning the Switch, cut off the power supply. Do not clean it by the waterish cloth, and never use any other liquid cleaning method. -
Page 10: Installation
3.2 Installation This Switch can be either installed on the standard 19-inch mountable rack or located on the desktop. Caution: Please unplug the power cord before installing or removing the Switch. 3.2.1 Desktop Installation To install the Switch on the desktop, please follow the steps: 1) Set the Switch on a flat surface strong enough to support the entire weight of the Switch with all fittings. - Page 11 Figure 3-3 Mounting Switch 3) Connect the Switch to network devices. 4) Supply power to the Switch with the provided power cord. Note: TL-SF1016DS and TL-SF1024D do not support rack installation.
-
Page 12: Connect To Ground
3.3 Connect to Ground Connecting the Switch to ground is to quickly release the lightning over-voltage and over-current of the Switch, which is also a necessary measure to protect the body from electric shock. In different environments, the Switch may be grounded differently. The following will instruct you to connect the Switch to the ground in two ways, connecting to the Grounding Bar or connecting to the Ground via the power cord. -
Page 13: Power On
3.4 Power on The TL-SF1016/TL-SF1016DS/TL-SF1024/TL-SF1024D/TL-SF1048 16/24/48-port 10/100Mbps Fast Ethernet Switch is powered by an AC Power Supply. Connect the Switch and power outlet by power cord. Powering on the Switch, it will be... -
Page 14: Appendix A: Specifications
Appendix A: Specifications General Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX Topology Star Protocol CSMA/CD Ethernet: 10Mbps (Half Duplex) 20Mbps (FullDuplex) Data Transfer Rate Fast Ethernet: 100Mbps (Half Duplex) 200Mbps (Full Duplex) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) Network Media (Cable) 100Base-TX: UTP category 5, 5e cable (maximum... -
Page 15: Appendix B: Troubleshooting
Appendix B: Troubleshooting The Power LED is not lit Make sure the AC power cord connected the Switch with power source properly. Make sure the power source is ON. The Link/Act LED is not lit when a device is connected to the corresponding port Make sure that the cable connectors are firmly plugged into the Switch and the device.
