Renesas RA Series Quick Start Manual

Renesas RA Family
FPB-RA0E1 Fast Prototyping Board
1. Introduction
The FPB-RA0E1 Fast Prototyping Board provides an entry point for evaluation, prototyping and development
with the RA0E1 MCU. Moreover, since this board incorporates an emulator circuit, you can use it for
designing your own applications without needing to make further investments in tools. This product includes
through-holes for pin headers that allow access to all MCU signal pins, allowing easy prototyping with a
breadboard.
2. Package Contents
- FPB-RA0E1 Fast Prototyping Board (RTK7FPA0E1S00001BJ)
- Quick Start Guide (this document)
- USB cable (type-A male to type-C male)
- Information for China RoHS
3. Board Specifications
Item Specification
Evaluation MCU Part No: R7FA0E1073CFJ; package: 32-pin LQFP
On-chip memory: 64 KB ROM, 12 KB SRAM, 1 KB data flash memory
Board size Size: 53 mm × 85 mm; thickness: 11.5 mm
Power-supply voltage Board supply: 5 V. VCC: 3.3 V. MCU operation voltage range 1.6 V to 5.5 V
Power-supply circuit USB connector: VBUS (5 V input); VBUS is converted to 3.3 V by LDO
2-pin external power-supply header*
Push switch Reset switch x 1; user switch x 1
LED Power indicator: green x 1, user: green x 2, On-board Debugger ACT LED: yellow x 1
USB connector Connector: USB Type-C
Pmod™ connector Connector: angle type, 12-pin x 2
Arduino™ connector Connector: 6-pin x 1, 8-pin x 2, 10-pin x 1
The interface is compatible with Arduino™ UNO R3
*1
MCU header Header: 16 pins x 2
Emulator J-Link On-Board programmer / debugger
*1
This part is not mounted
4. Board Layout
MCU header J1
TM
Pmod 2
Type 6A
User switch
RA0E1 MCU
TM
Pmod 1
Type2A/3A
MCU header J2
R20QS0064EJ0100 Rev.1.00
Jan.16.24
1

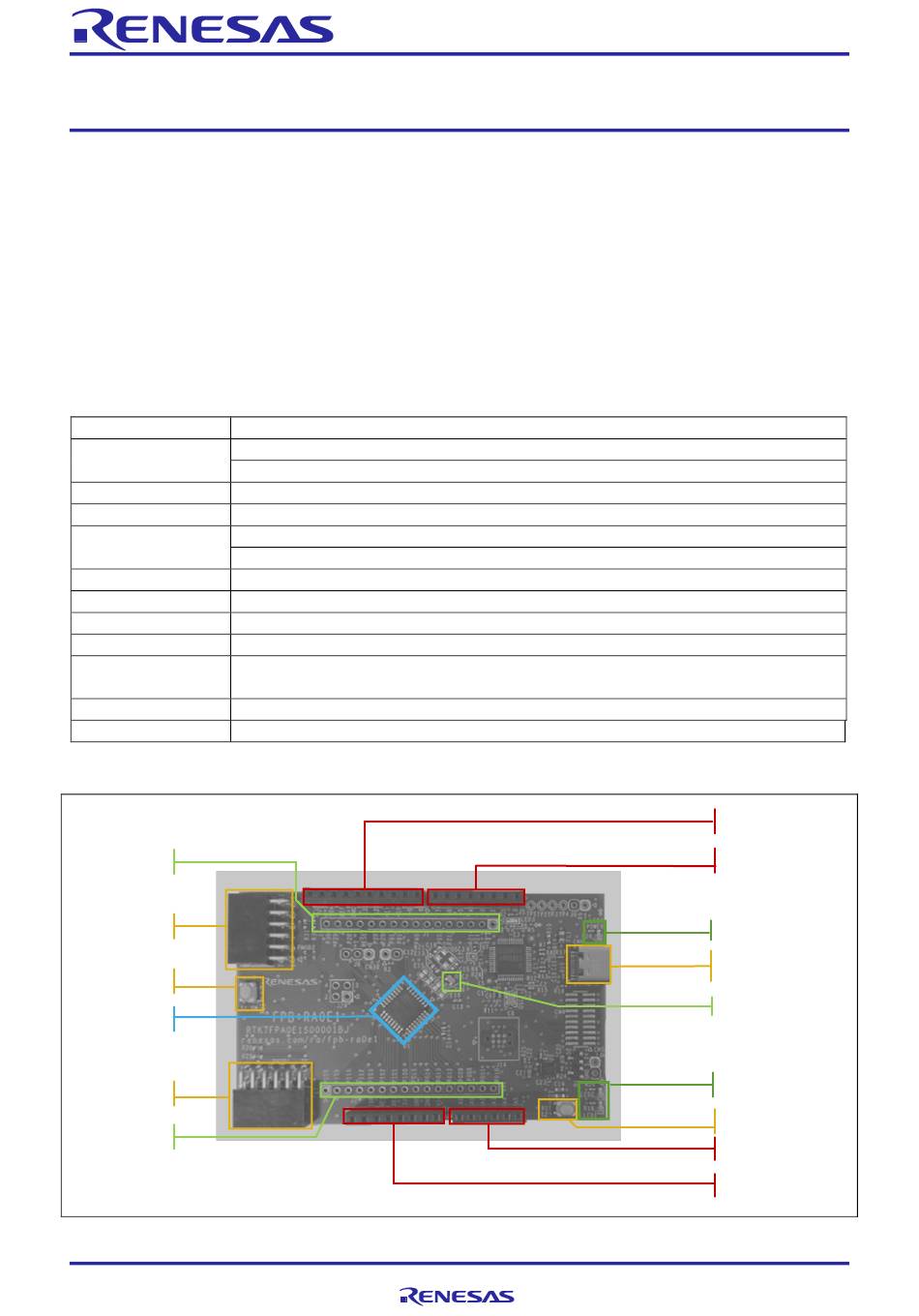

Figure 1. FPB-RA0E1 Board Layout
Quick Start Guide
Ten digital pins for
TM
Arduino UNO
Eight ditital pins for
TM
Arduino UNO
Power LED
USB Type C
connector
Sub-clock
User LED x 2
Reset switch
Six analog pins for
TM
Arduino UNO
Eight power pins
TM
for Arduino UNO
