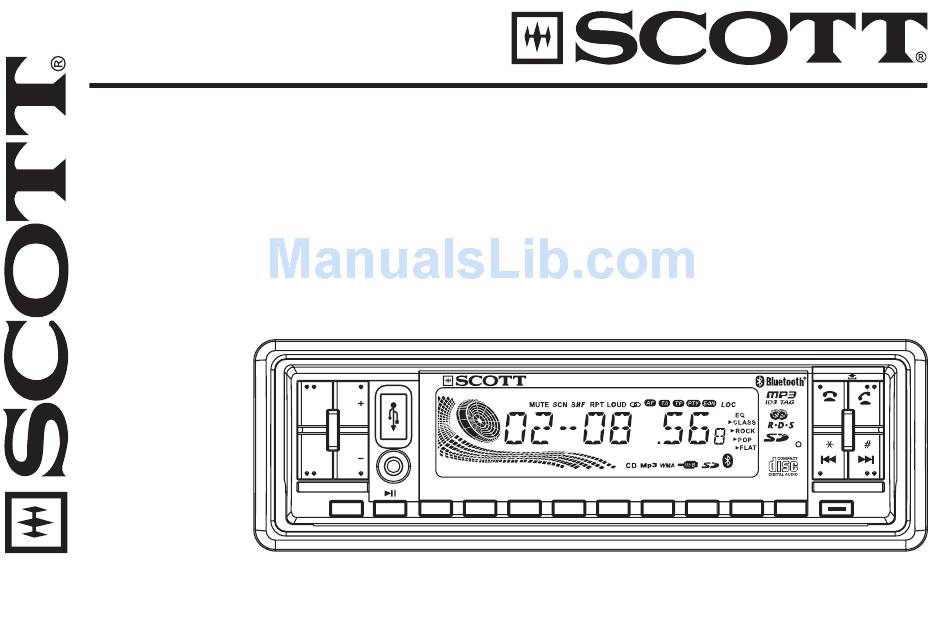

- Page 1 XRB300 CD/MP3/WMA/SD/USB/AUX CAR RADIO FM Stereo Radio RDS (Radio Data System) Function Anti-Shock Mechanism Bluetooth Function 40 W X 4 High Power Output XRB300 OPEN SD/MMC/USB/ CD/MP3 PLAYER TA/PTY AF/REG DISP BAND MENU USER MANUAL AND INSTALLATION INSTRUCTIONS...
-
Page 2: Table Of Contents
CONTENTS CONTENTS ....................................GB-1 ACCESSORIES ..................................GB-2 PRECAUTION ................................... GB-3 INSTALLATION ..................................GB-4 USING THE DETACHABLE FRONT PANEL ........................... GB-7 WIRING DIAGRAM ................................... GB-8 OPERATIONS ................................... GB-9 LOCATION AND FUNCTION OF KEYS ........................... GB-9 GENERAL OPERATIONS ..............................GB-10 RADIO OPERATIONS ................................GB-14 RDS (RADIO DATA SYSTEM) OPERATIONS ........................ -
Page 3: Accessories
ACCESSORIES Spring Washer Mounting Bracket Removable Trim Ring Small metal Strip Plain Washer (Half Sleeve) equipped on the unit Tapping Screw Mounting Bolt Release Key Screw Hex Nut XRB300 XRB300 OPEN CD/MP3/WMA/SD/USB/AUX CAR RADIO FM Stereo Radio RDS (Radio Data System) Function Anti-Shock Mechanism Bluetooth Function 40 W X 4 High Power Output... -
Page 4: Precaution
PRECAUTION This unit is designed and manufactured with the users safety in mind, however any improper use or operation may result in certain dangers. It is therefore highly recommended to read this manual thoroughly and adhere to the following precautions. SAFETY PRECAUTIONS To prevent an electrical shock, do not open the housing of the unit. -
Page 5: Installation
Installation Notes: - Choose the mounting location where the unit will not interfere with the normal driving function of the driver. - Before finally installing the unit, connect the wiring and make sure that the unit works properly. - Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle. - Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop. -
Page 6: Using The Detachable Front Panel
Installing the unit Be sure you test all connections first, and then follow these steps to install the unit. 1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal. 2. Disconnect the wire harness and the antenna. 3. - Page 7 This metal strap also helps ensure proper electrical grounding of the unit. Ensure that you install the short part of the mounting bolt to the back of the unit and the other long part to the dashboard. 10. Reconnect the cable to the vehicle battery's negative (-) terminal. Then replace the outer trim ring and install the unit's front panel (see the steps of 'to install the front panel').
- Page 8 USING THE DETACHABLE FRONT PANEL REMOVING AND PROTECTING DETACHABLE FRONT PANEL The front panel of the unit may be removed as a theft deterrent. After removing the front panel, use the case provided to keep the front panel from getting damaged. 1 Press the OPEN button (4) to flip down the front panel.
-
Page 9: Wiring Diagram
Wiring Diagram FUSE ISO connector: Part A: No Connect No Connect ISO CONNECTOR No Connect Battery B+ (Yellow) Antenna (Blue) No Connect Accessory (Red) Ground B- (Black) Part B: Rear Right + (Violet) Rear Right - (Violet/Black) Front Right + ( Grey) Front Right - (Grey/Black) Front Left + (White) Front Left - (White/Black) -
Page 10: Operations
Operations Location and Function of Keys Descriptions of Function Controls Front panel : PWR(Power)/Mute Button LCD display VOL +/- and SEL(MENU/ENTER) Button OPEN ( ) Button XRB300 OPEN Disc slot Eject ( ) key SD/MMC Memory Card Slot USB Port MOD(Mode) / Pairing Button (10) DISP(Display) / 9 Button... -
Page 11: General Operations
General Operations Reset the unit Operating the unit for the first time, after replacing the car battery or changing the connections, you must reset the unit. 1.Turn off the unit power. 2.Press the OPEN ( ) button and remove the front panel, then press the RESET button with a ballpoint or similar object to restore the unit to the original factory settings. - Page 12 - TA SEEK mode: When newly tuned station does not receive TP information for 5 seconds, the radio retunes to next station which is not the same station (PI) as the last station, but has the TP information. When TP information gets lost at the current station for retune time which is set by RETUNE SHORT (30 sec.) or RETUNE LONG (90 sec.), the radio start to retune to next same PI station.
- Page 13 -RETUNE L mode: Automatic search for new frequencies takes place after 90 seconds. -RETUNE S mode: Automatic search for new frequencies takes place after 60 seconds. EQ MODE: The car audio device is equipped with 4 preset equalization modes. After entering this mode by pressing the button, ress the VOL +/ -...
- Page 14 Mute on/off In power on mode, short press the PWR/ MUTE button to toggle mute on or off. The muted state will be also released when SEL MOD VOL+ VOL - is pressed To select playback mode In power on mode, press button repeatedly to select the different modes in the following sequence: RADIO, CD(with a disc inside the disc slot) , USB(with USB device inserted), CARD(with SD/MMC card inserted), AUX or BT AUDIO (Bluetooth) mode.
-
Page 15: Radio Operations
Radio Operations Press the button to select the radio mode. To select a radio band In radio mode, Press the BAND button repeatedly to select one of the three radio broadcasting bands: ->FM 1-> FM 2 -> FM 3 ->. Auto/ Manual tuning( FM 50KHz/step) - Automatic search mode: Press the... -
Page 16: Rds (Radio Data System) Operations
- Auto store: Press the button for more than 2 seconds to start auto store. The radio will scan from the lowest frequency, and automatically store the 6 strongest stations into the preset memories. When auto store is complete, the radio will start preset scan to the stored 6 station RDS (Radio Data System) Operations To replace the current frequency with the alternative frequency... - Page 17 HINT: When you the select PTY MUSIC GROUP, the preset station buttons are categorized as follows: Preset station button POP M, ROCK M EASY M, LIGHT M CLASSICS, OTHER M JAZZ M, COUNTRY NATION M, OLDIES M FOLK M When you select the PTY SPEECH GROUP, the preset numbered buttons is shared as follows: NEWS, AFFAIRS, INFO SPORT, EDUCATE, DRAMA CULTURE, SCIENCE, VARIED...
-
Page 18: Cd/Mp3/Wma Disc Operations
CD/MP3/WMA Disc Operations Press the button to select the disc mode. Loading/Removing a Disc 1. Press the OPEN ) button on the front panel to flip down the front panel and then insert a disc into the disc slot with the printed side facing upward;... - Page 19 Repeat playback - In CD/MP3/WMA files playback, briefly press the button to continuously play the current track. Press again to stop repeat playback and resume normal playback. For MP3/WMA files, press the button for longer than 2 seconds to continuously play all the tracks in the current folder . “RPT FOLD”...
- Page 20 Folders/Files Navigation search mode: a) Press the button twice to access the file search mode, the “FILE-SCH” will appear on the LCD display. b Press the , or VOL+ VOL- button to confirm the selection of this search mode. “FOLD001” will appear on the LCD display, and “001”...
-
Page 21: Sd/Mmc Memory Card Operations
SD/MMC Memory Card Operations Using the SD/MMC card: When you insert a SD/MMC card into the memory card slot, the player will read the SD/MMC card automatically. If you insert a disc into the disc slot while reading the SD/MMC card, the unit will play the disc. You can press button to select card mode. -
Page 22: Usb Operations
USB Operations Using the USB stick: When you insert a USB stick through the port, the unit will search for the MP3/WMA files and start to play them automatically. If you insert a disc into the disc slot while reading the USB stick, the unit will play the disc. You can press button to select USB mode. -
Page 23: Bluetooth Function Tipwizard
BLUETOOTH FUNCTION TIPWIZARD 1. Pairing Long press the MODE button to access pairing mode. During pairing, please activate the Bluetooth function on your mobile phone and search for a Bluetooth device. When your mobile phone prompts you, enter the pairing code “1234” and confirm in your mobile phone. If pairing succeeds, the “PAIROK”... - Page 24 4. Accept / Reject / End call 4.1 Accept call When a ring comes, press the “ ” button to accept call. 4.2 Reject call When a ring comes, press the “ ” button to reject the coming call. 4.3 End call When you are talking, press the “...
- Page 25 - Press 0~9, # or * to edit phone number, simultaneously , the inputted number will display on the LCD display. If a number is wrongly input, press the “ ” button to delete the incorrect number. - After the entire phone number has been input, press the button to save the phone number.
-
Page 26: Disc Notes
DISC NOTES A. Notes on discs: 1. Attempting to use non-standard shape discs (e.g. square, start, and heart) may damage the unit. Be sure to use round shape CD discs only for this unit. 2. Do not stick paper or tape, etc, onto the label side or the recording side of any discs, as it may cause a malfunction. Dirt, dust, scratches and warping discs will cause disoperation. - Page 27 3. Near car heaters. 4. On the seats or dashboard. Disc Cleaning Use a dry soft cloth to wipe the surface. If the disc is quite dirty, Use a soft cloth slightly moistures with isopropyl (rubbing) alcohol. Never use solvents such as benzene, thinner or conventional record cleaners as they may mar the surface of the disc. Note: A disc may become somewhat scratched (although not enough to make it unusable) depending on the way it is handled and conditions in the usage environment.
-
Page 28: Specifications
Specification 1. GENERAL Power Supply Requirements......DC 12 Volts, Negative Ground Unit Dimensions...........178(W)x160(D)x 50(H) mm Tone Controls............- Bass (at 100 Hz) ±10 dB - Treble (at 10 KHz) ±10 dB Maximum Output Power..............4x40 watts Current Drain..............15 Ampere (max.) 2. CD PLAYER Signal to Noise Ratio.................>... -
Page 29: Troubleshooting
Trouble Shooting Symptom Cause Solution The car ignition switch is not on. Turn the ignition key to “ACCESSORY” in order to switch the unit on. No power The connections are not correct. Check the connections. A fuse has blown in the vehicle Check the vehicle fuses. - Page 30 If at any time in the futrue you should need to dispose of this product, please note that waste electrical product should not be disposed of with household waste. Please recycle where facilities exist. Check with Your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
