Summary of Contents for Scott RXI 400 WL

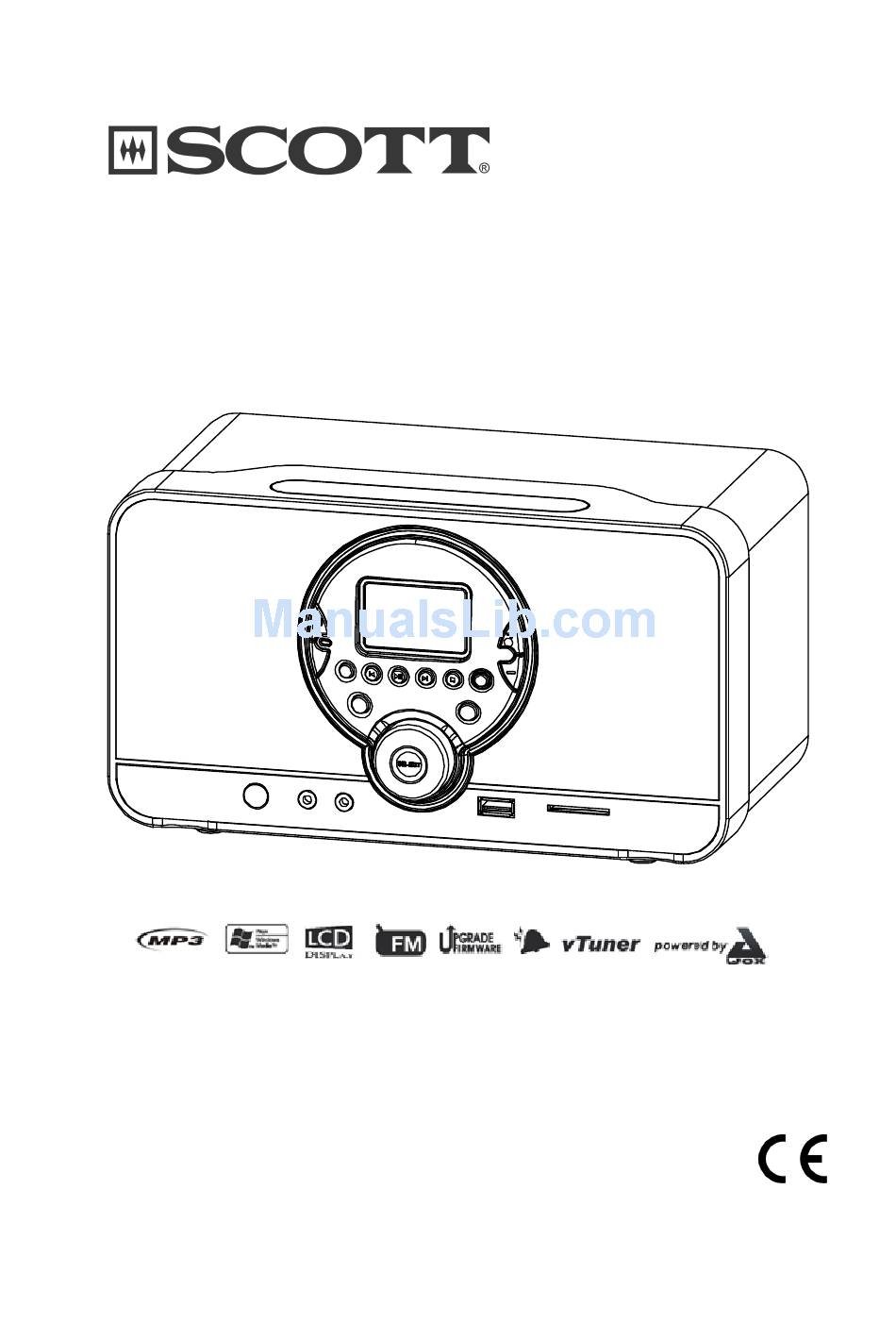

- Page 1 RXi 400WL Wi-Fi Internet / Ethernet/ FM PLL Radio Instruction Manual...
-
Page 2: Precautions
PRECAUTIONS Follow the advice below for safe and appropriate operations. ON PLACEMENT . Do not use the unit in places, which are extremely hot, cold, dusty, or humid. . Place the unit on a flat and even surface. . Do not restrict the airflow of the unit by placing it in a place with poor airflow, by covering it with a cloth, or by placing it on a carpet. -
Page 3: Table Of Contents
Note: Due to continuous improvements, the features may be subject to change without notice. You should upgrade the firmware regularly by browsing through the menus: Main menu à Settings à System à Upgrade. Please download latest update instruction manual http://www.awox.com/scott. GB- 2... -
Page 4: Location Of Controls
LOCATION OF CONTROLS Unit back view 1. Bass reflex hole 2. FM antenna 3. Time back up battery cover 4. Ethernet jack 5. DC IN 12V jack Unit front view 1. Speakers 9 10 11 1 ALARM OFF button 3. ( ) ON/STANDBY button 4. -
Page 5: Remote Control
Remote control 1. ( ) ON/STANDBY button 2. BACK button 3. DOWN button 4. Preset P1 button 5. Repeat/Shuffle button 6. Preset/Previous P2/ button 7. SNOOZE button ALARM OFF button 9. VOLUME +/- buttons 10. SELECT button 11. UP button 12. -
Page 6: Prerequisites For Internet Radio
PREREQUISITES FOR INTERNET RADIO First of all, you will need a broadband Internet connection and a wireless access point (Wi-Fi) connected to the broadband Internet via a router and a modem (cable/DSL). You can choose between a wired connection (Ethernet) and a wireless connection (Wi-Fi). -
Page 7: Installing Batteries
Connecting the power supply Insert the AC/DC adapter plug into an AC mains outlet with a 230V AC ~ 50Hz power source, and the other end to the DC IN 12V jack at the back of the unit. Connecting an external audio device (e.g. MP3 player) Connect the line out or headphones jack on an external audio device (such as a MP3 player) to the unit’s AUX IN jack with the AUX IN cable (supplied). -
Page 8: Basic Operations
BASIC OPERATIONS ON/ STANDBY mode After connecting the power supply (refer to previous section - CONNECTIONS), press the ( ) ON/STANDBY button to turn on the unit or go to standby mode. Navigation and number/character entry Using the buttons on the unit Turn the SCROLL/SELECT/SNOOZE knob to scroll through the menu and press it to enter the highlighted item. - Page 9 TIME set Set the clock 1. Select Settings àTime. The clock time is displayed. 2. Turn the SCROLL/SELECT/SNOOZE knob to adjust the hour and press it to confirm. 3. Repeat the step (2) to adjust the minutes. Set the alarm time 1.
-
Page 10: Fm Radio Operation
FM RADIO OPERATION This mode allows you to listen to local FM radio stations. Listen to FM radio 1. Press the ON/STANDBY ( ) button to turn on the unit. 2. Select FM Radio àTune. 3. To search automatically, turn the SCROLL/SELECT /SNOOZE knob on the unit (or the UP or DOWN button on the remote control) and release to tune to a... -
Page 11: Internet Radio Operation
INTERNET RADIO OPERATION Your unit can be connected to a wireless network (Wi-Fi) or an Ethernet. This allows you to enjoy the vTuner live Internet radio service. Note: Before operating this mode, make sure that you have read and understood the instructions in “PREREQUISITES FOR INTERNET RADIO”... - Page 12 Listening to a web radio station After successfully connecting to the Internet, you can enjoy the vTuner live internet radio service by selecting “Internet Radio”. The following options are available: Options Descriptions The unit can automatically detect the country in which the unit Country is located and display the web radio stations in that country.
-
Page 13: Usb Device And Sd/Mmc Card Operation
USB DEVICE AND SD/MMC CARD OPERATION This unit allows you to listen to files on a USB device or SD/MMC card. You can also copy files from your USB device to your SD/MMC card and vice-versa. You can also record web radio and FM radio to a USB device or SD/MMC card. Playback 1. -
Page 14: Record Function
RECORD FUNCTION You can record a web radio or FM radio broadcast on a USB device or SD/MMC card for private usage only, or record an audio file read by an appliance connected via the AUX IN jack. Recording web and FM radio station broadcasts 1) Insert a USB device and/ or SD/MMC card into the unit and listen to the desired web or FM radio station. -
Page 15: Trouble Shooting Guide
8.4 The press and hold button operation works on the unit only. Note: Should the problem persist, please download the firmware for this Internet radio from http://www.awox.com/scott and place it on a USB device. Unplug the AC/DC adapter and insert the USB device into the unit. Plug the AC/DC... -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS Amplifier Output power……………………………. 6 W (2 x 3W) Speakers.………………………………… 3” 4 Ohm FM Radio Tuning range…………………………….. 87.5 – 108 MHz Number of stations that can be stored... 5 FM antenna…………………………..Telescopic type, external Internet Radio Wired connection……………………….. Network 10/100 RJ 45 Ethernet jack Wireless (Wi-Fi) connection……………...
