PRECAUTIONS Follow the advice below for safe and appropriate operations. ON PLACEMENT . Do not use the unit in places, which are extremely hot, cold, dusty, or humid. . Place the unit on a flat and even surface. . Do not restrict the airflow of the unit by placing it in a place with poor airflow, by covering it with a cloth, or by placing it on a carpet.
Note: Due to continuous improvements, the features may be subject to change without notice. You should upgrade the firmware regularly by browsing through the menus: Main menu Settings System Upgrade. Please download the latest update of the instruction manual at http://www.awox.com/scott. GB- 2...

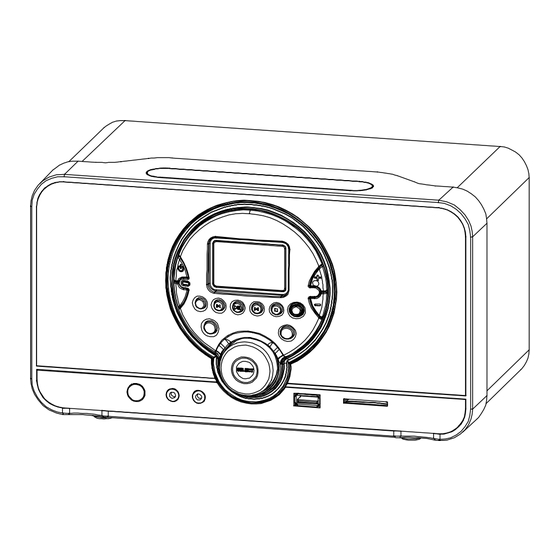

LOCATION OF CONTROLS Unit back view 1. Bass reflex hole 2. FM antenna 3. Time back up battery cover 4. Ethernet jack 5. DC IN 12V jack Unit front view 1. Speakers 9 10 11 1 ALARM OFF button 3. ( ) ON/STANDBY button 4.
PREREQUISITES FOR INTERNET RADIO First of all, you will need a broadband Internet connection and a wireless access point (Wi-Fi) connected to the broadband Internet via a router and a modem (cable/DSL). You can choose between a wired connection (Ethernet) and a wireless connection (Wi-Fi).
Connecting the power supply Insert the AC/DC adapter plug into an AC mains outlet with a 230V AC ~ 50Hz power source, and the other end to the DC IN 12V jack at the back of the unit. onnecting an external audio device (e.g. MP3 player) Connect the line out or headphones jack on an external audio devic e (such as a MP3 player) to the unit’s AUX IN jack with the AUX IN cable (supplied).
BASIC OPERATIONS ON/ STANDBY mode After connecting the power supply (refer to previous section - CONNECTIONS), press the ( ) ON/STANDBY button to turn on the unit or go to standby mode. Navigation and number/character entry Using the buttons on the unit Turn the SCROLL/SELECT/SNOOZE knob to scroll through the menu and press it to enter the highlighted item.
Page 9
TIME set Set the clock 1. Select Settings Time. The clock time is displayed. 2. Turn the SCROLL/SELECT/SNOOZE knob to adjust the hour and press it to confirm. 3. Repeat the step (2) to adjust t he minutes. Set the alarm time 1.
FM RADIO OPERATION This mode allows you to listen to local FM radio stations. ten to FM radio . Press the ON/STANDBY ( ) button to turn on the unit. 2. Select FM Radio Tune. 3. To search automatic ly, turn the SCROLL/SELECT /SNOOZE knob on the unit (or the UP or DOWN button on the remote control) and release to tune to a...
ERNET RADIO OPERATIO our unit can be connected to a wireless network (Wi-Fi) or an Ethernet. This allows you to enjoy the vTuner live Internet radio service. ote: Before operating this mode, make sure that you have read and understood the instructions in “PREREQUISITES FOR INTERNET RADIO”...
Page 12
Listening to a we b radio station After successfully connecting to the Internet, you can enjoy the vTuner live internet radio service by selecting “Internet Rad io”. The following options are available: Options Descriptions The unit c an automatically detect the country in which the unit untry is located and display the web radio stations in that country.
USB DEVICE AND SD/MMC CARD OPERATION This unit allows you to listen to files on a USB device or SD/MM C card. You can also copy files from your USB device to your SD/MMC card and vice-versa. You can also record web radio and FM radio to a USB device or SD/MMC card.
RECORD FUNCTION You can record a web radio or FM radio broadcast on a USB device or SD/MMC card for private use only, or record an audio file read by an appliance connected via the AUX IN jack. Recording web and FM radio sta n broadcasts 1) I nsert a USB device and/ or SD/MMC card into the unit...
2. In the Media Sharing dialogue box, select Share my media check box. 3. Check the “share my media to” box. In the list, click your Radio*, click Allow, the selected device will now show a green tick and then click OK. If your device does not appear in the list of devices, perform the following steps;...
Note: Should the problem persist, please download the firmware for this Internet radio from http://www.awox.com/scott and place it on a USB device. Unplug the AC/DC adapter and insert the USB device into the unit.
TECHNICAL SPECIFICATIONS Amplifier tput power……………………………. 6 W (2 x eakers.………………………………… 3” 4 Ohm FM Radio ing range…………………………….. 87.5 – 108 MHz Number of stations that can be stored... 5 FM antenna…………………………..Telescopic type, exter Internet Radio Wired co nnection…… ………………….. Network 10/100 RJ 45 Ethernet jack Wireless (Wi-Fi) connection……...
