EQUALIZER 2 SHOCK AND TWINLOC
REMOTE CONTROL LEVER

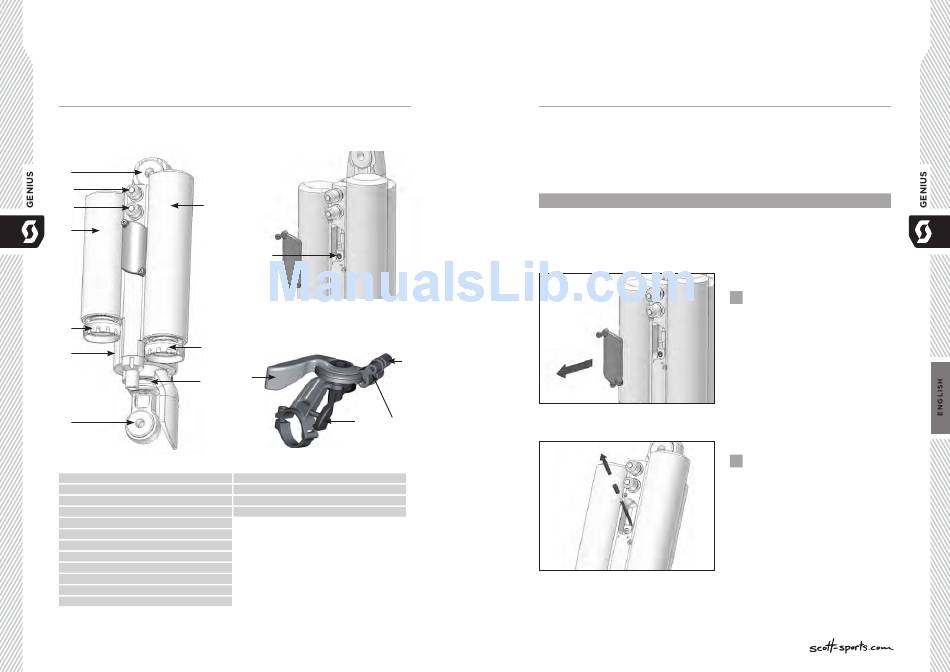

In the drawing of the shock and remote lever, shown below, you will see the parts
indicated with numbers which will be used in the manual for the adjustment and set-up.
S1
S8
S3
S9
S4
S6
S7
S5
S12
S2
S1 Top eyelet/ Shock Bolt
S2 Down eyelet/ Shock Bolt
S3 Traction Mode Chamber
S4 Full Mode Chamber
S5 Shock Housing
S6 Rebound- Screw
S7 Rebound- Screw
S8 Positive Chamber Valve
S9 Negative Chamber Valve
S10 Remote Control Cable
S11 Cable fixing Screw (hidden behind dust protector plate)
S12 Shock Piston
14
2011 SCOTT BIKE OWNERS MANUAL
S11
L4
L1
L2
L3
L1 Remote Lever
L2 Release Button
L3 Remote Control Cable
L4 Cable Tension Screw
BASIC SET-UP OF THE TWINLOC
REMOTE CONTROL OF EQUALIZER 2 SHOCK
To ensure perfect function of the Equalizer 2 shock it is very important to follow the
steps shown below exactly.
Please note that the following explanation shows a complete exchange/replacement
of the cable, so in case you just want to double check e.g. the cable tension please see
only steps 1, 7, 8 and 9.
Important:
For all following actions the TWINLOC lever needs to be in "ALL TRAVEL-MODE"
position!
Remove the cap of the cable
1
housing window on the shock
by turning the screws counter
clockwise using a 1.5 mm allen key
remove the end cap of the cable
2
with pliers
