Lutron Electronics Athena A-WN-D01-OCC Installation Instructions Manual

Athena Wireless Node
Part of the Athena System
041931 Rev. A
Please read before installing
02/2025
A-WN-D01-OCC SELV / NECR Class 2
9.5 – 28.8 V-
A-WN-E01-OCC UL2043 Plenum Rated
46 mA max
A-WN-D01-RF
A-WN-E01-RF
Important Notes:
• Install in accordance with all local and national electrical codes.
• Use copper conductors only.
• Check to see that the device type and rating is suitable for the application.
• DO NOT install if product has any visible damage.
• If moisture or condensation is evident, allow the product to dry
completely before installation.
• Operate between 32 °F and 131 °F (0 °C and 55 °C), ambient.
• 0% to 90% humidity, non-condensing.
• For indoor use only.
• Athena wireless node with Sensor should be mounted to fixture in
orientation that makes it parallel to the floor when fixture is installed in
the ceiling.
• Clean only with soft, damp cloth; no chemical cleaners.
• DO NOT paint.
• Disconnect power at the breaker before servicing.
Athena Wireless Node Types
PIR and daylight sensor lens
Status LEDs
(not active during
normal operation)
OR
Athena wireless node (RF only)
Athena wireless node with Sensor
(A-WN-D01-OCC and (A-WN-D01-RF and A-WN-E01-RF)
A-WN-E01-OCC) Note: Neither daylighting functionality
nor occupancy sensing is available in
A-WN-D01-RF or A-WN-E01-RF
Wiring Guide
DALI Function DA DA N/C
N/C
DA N/C
DA
AUX - SIG +
AUX + SIG -
0-10 V Function AUX + AUX - SIG +
Note: Torque the Athena wireless node terminals to 2 in-lbs (0.23 N•m).
Lutron Electronics Co., Inc. 7200 Suter Road
Coopersburg, PA 18036-1299 USA
Start Here

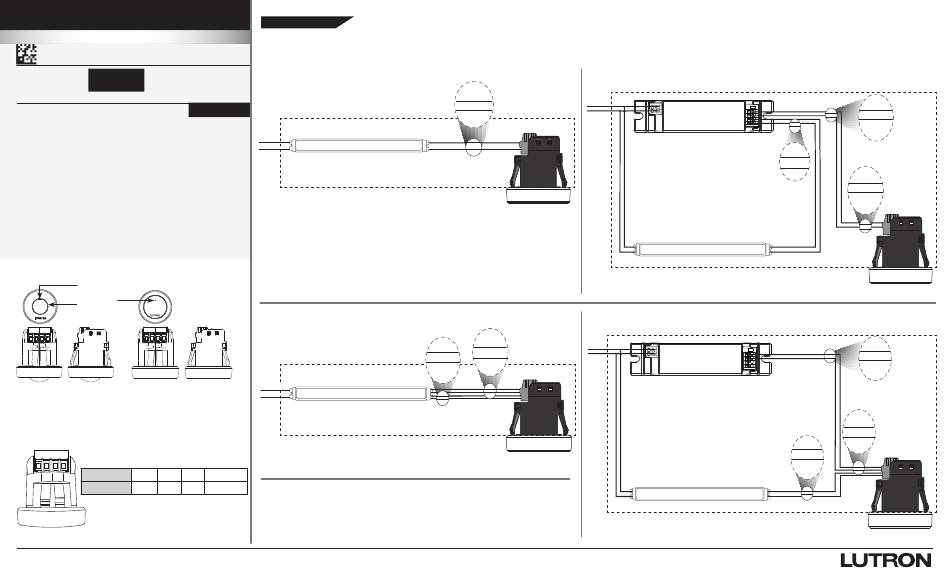

1. Connect Wires Using One of the Diagrams Below
DALI Driver with Self-Powered DALI Link
English
D4i driver
Neutral
Line
0-10 V- Driver with Built-In Auxiliary Supply
0-10 V- driver
Neutral
Line
N/C
Notes:
SIG - / DGND
- Athena wireless node controls up to 5 drivers.
- For multiple drivers with integrated bus supplies, the "+" terminals from the drivers must be
tied together and the "-" terminals from the drivers must be tied together. Do NOT mix "+"
and "-" when using multiple drivers that are supplying power maximum of 250 mA.
- IEC 62386 Part 250 requires a minimum guaranteed supply current of 50 mA with a
maximum of 250 mA.
Lutron, and Athena are trademarks or registered trademarks of Lutron Electronics Co., Inc. in the US and/or other countries. All other product names, logos, and brands are property of their respective owners.
©2025 Lutron Electronics Co., Inc.
DALI Driver without Self-Powered DALI Link
DA
DA Neutral
Dashed line = Fixture
polarity free
Line / Hot
Athena wireless node
0-10 V- Driver without Built-In Auxiliary Supply
AUX+
Neutral
SIG+
AUX-
Line / Hot
SIG-/DGND Dashed line = Fixture
Athena wireless node
DFC-OEM-DBI*
DA+
DA-
Non-D4i DALI-2 driver
DFC-OEM-DBI
SIG+
SIG-/DGND
0-10 V- driver
Dashed line = Fixture
S+
S-
polarity-free
DA
DA
polarity-free
Athena wireless node
Dashed line = Fixture
S+
S-
AUX+
AUX-
Athena wireless node
