MVVS 4.6-1120 SPORT - V1.4 User Manual

Warranty Information

The MVVS Company gives 36-month warranty applying to manufacture and material defects of the electric
motors.
Warranty does not apply to:
- Damages due to an accident.
- Damages due to unprofessional handling or disassembling the product.
- Damages due to use of an unbalanced or damaged propeller.
- Damages due to usage of unoriginal spare parts or accessories.
- Damages due to intaking foreign objects or substances, such as water, chemicals, dust, etc.
- Damages due to incorrect use, such as application of incorrect supply voltage.
- Damages due to incorrect assembly (provision of sufficient cooling).
Contact: MVVS, Ltd., Tř. Kpt. Jaroše 35, 60200 Brno, Czech Republic
Tel.: +420 545 211 683 Fax: + 420 545 211 418
E-mail: mvvs@mvvs.cz
Web: www.mvvs.cz
Certificate of Warranty
Sell-by date:
Seller: Buyer's name and address:
User's Manual

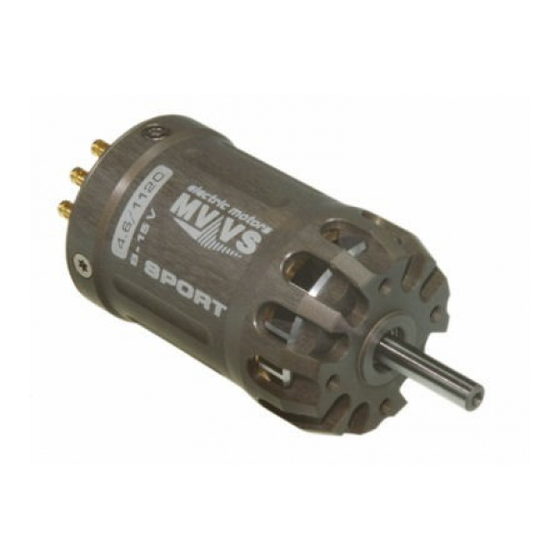

Congratulations on buying the MVVS series 4.6 AC sensor-free electric motor designed for driving aircraft
models. Owing to used materials, brand-name unified parts and high production precision this product features
high quality, long service life and top performance parameters.
This motor is intended, owing to used conception combining advantages of static motors and those with external
rotor, for direct driving the propeller and thus for all types of aircraft models including FUN – FLY and version
SPORT is possible to use also in Heli models. In addition, this conception is extremely suitable for glider models.

Specification

RPM per Volt
Stator diameter
Stator length
Shaft diameter
Nominal voltage
Number of poles
Working voltage
Recommended amperage loading
Maximum loading
Number of cells
Weight

Area of Application:

Motor Type Model
Glider 1,6 – 2m / 2 kg
Dynamic Glider 1,4 kg
FUN-FLY 1,5 kg
Acrobat 1,8 kg
4,6 / 840 Acrobat 2,3 kg
4.6 / 840 SPORT Glider 2,5 kg
Glider 3,0 kg
Dynamic Glider 1,8 kg
Quick model 1,4 kg
Slow model 2,5 kg
Slow model 3,0 kg
Quick model 2,3 kg
4,6 / 840 SPORT
Helicopter 1,5 - 2 kg
FUN-FLY 1,5 kg
FUN-FLY 1,7 kg
Acrobat 1,7 kg
Acrobat 2,2 kg
4,6 / 1120 SPORT
Glider 2,7 kg
Dynamic Glider 1,8 kg
Quick model 2,2 kg
Helicopter 1,5 - 2 kg
MVVS 4.6/840
MVVS 4.6/840 SPORT
MVVS 4.6/1120 SPORT
edition 1.4
4.6/840 and 4.6/840 SPORT 4.6/1120 SPORT
840 1120
26 mm 26 mm
26 mm 26 mm
5 mm 5 mm
14 V 12 V
12 12
8 – 18 V 8 – 15 V
25 – 37 A 35 – 45 A
45 A / 30 s 45 A / 60 s 55 A / 60 s
7 – 15 NiCd / 3 – 5 Li-xx 7 – 12 NiCd / 3 – 4 Li-xx
206g / 215g 215 g
Accumulator / Propeller
3 Li-xx / 11x7"
3 Li-xx / 11x8"
4 Li-xx / 12x6"
5 Li-xx / 11x5,5"
4 Li-xx / 12x8"
5 Li-xx / 10,5x7"
3 Li-xx / 14x9,5"
4 Li-xx / 12x8"
4 Li-xx / 12x8"
4xLi-xx / 8,5x6"
3 Li-xx / 14x10"
4 Li-xx / 12x8"
5 Li-xx / 10x8"
3 – 4 Li-xx
3 Li-xx / 12x6" – 13x6,5"
4 Li-xx / 11x5,5"
3 Li-xx / 11x8" – 12x8"
4 Li-xx / 10,5x7"
3 Li-xx / 12x6,5 – 8"
4 Li-xx / 10,5x6"
3 Li-xx / 12x6,5"
4 Li-xx / 10x8"
3 – 4 Li-xx
