Summary of Contents for TRENDnet TPE-224WS(C1)

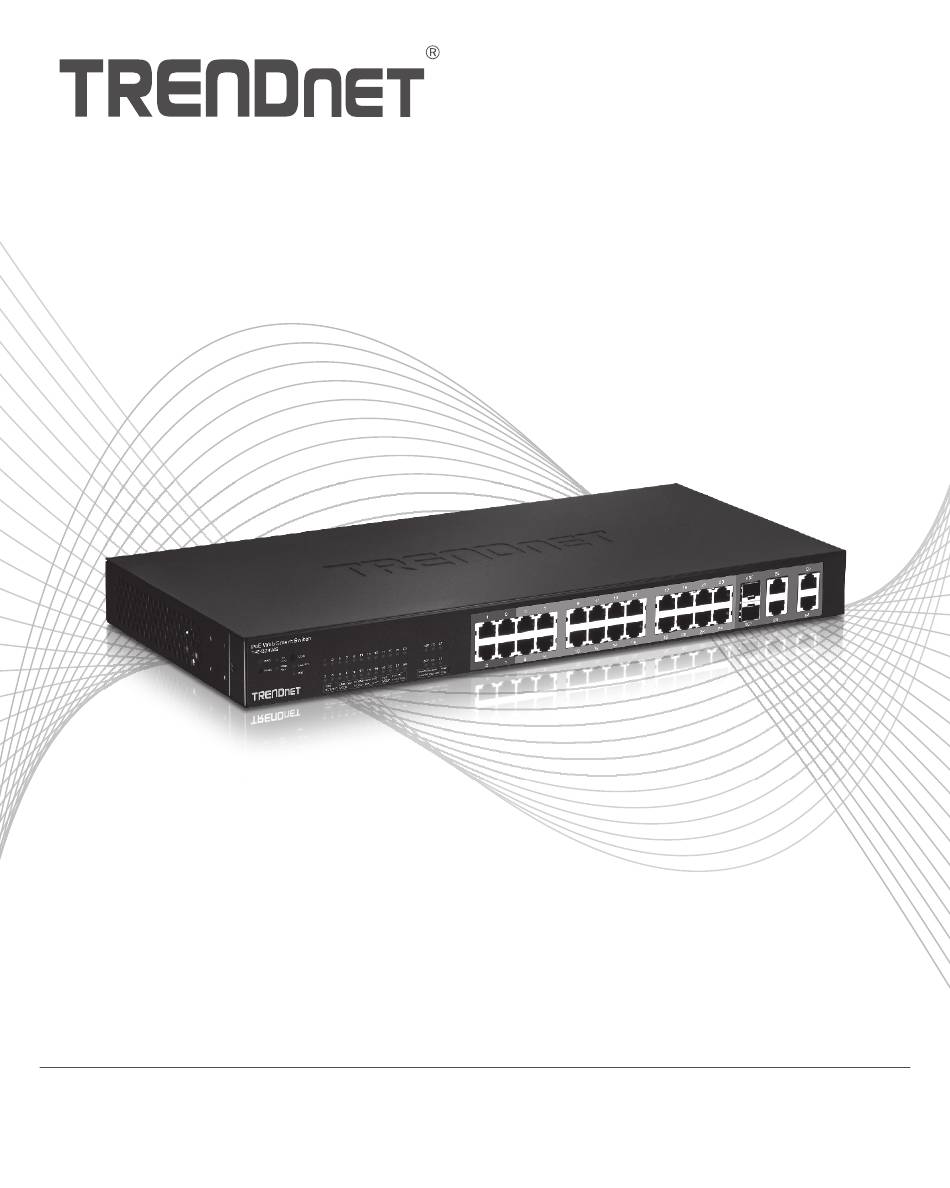

- Page 1 Quick Installation Guide TPE-224WS(C1)
- Page 2 Table of Content 1 English 1. Before You Start 2. Quick Reference 3. Hardware Installation and Configuration...
- Page 3 1. Before You Start Package Contents Ÿ TPE-224WS Ÿ Quick Installation Guide Ÿ CD-ROM (Utility and User's Guide) Ÿ Power cord Ÿ Rack mount kit Minimum Requirements Ÿ Computer with an Ethernet port and web browser Ÿ Network cable Optional Equipment Ÿ...
- Page 4 3. Hardware Installation and Configuration 3. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0. 4. Open your web browser, type the IP address of the switch in the address bar, and then press Enter.
- Page 5 5. Enter the User name and Password, and then click Login. By default: User Name: admin Password: admin Note: User Name and Password are case sensitive. 6. Click System and then click IPv4 Setup. 7. Configure the switch to match the requirements of your network. Then click Apply. 8.
- Page 6 9. Click Save Settings to Flash (menubar). 10. Click Save Settings to Flash (button). 11. Click OK. Note: If you would like to easily discover all the Web Management Switches on the network, assign IP Address, change the password, and upgrade new firmware, then install the Web Smart Switch Management Utility.
- Page 7 Product Name: Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013...
- Page 8 каждого продукта на сайте компании TRENDnet. Garantia Limitada A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e serviço. Os períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos no site da TRENDnet.
- Page 9 Safety notes Before using your TRENDnet device for the first time, it is essential to read and understand all safety and operating instructions. Keep instructions in a safe place for future reference. Some TRENDnet products are rated for outdoor applications and can sustain certain weather conditions.
- Page 10 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: Toll free US/Canada: 1-866-845-3673 www.trendnet.com/register Regional phone numbers available at www.trendnet.com/support...
