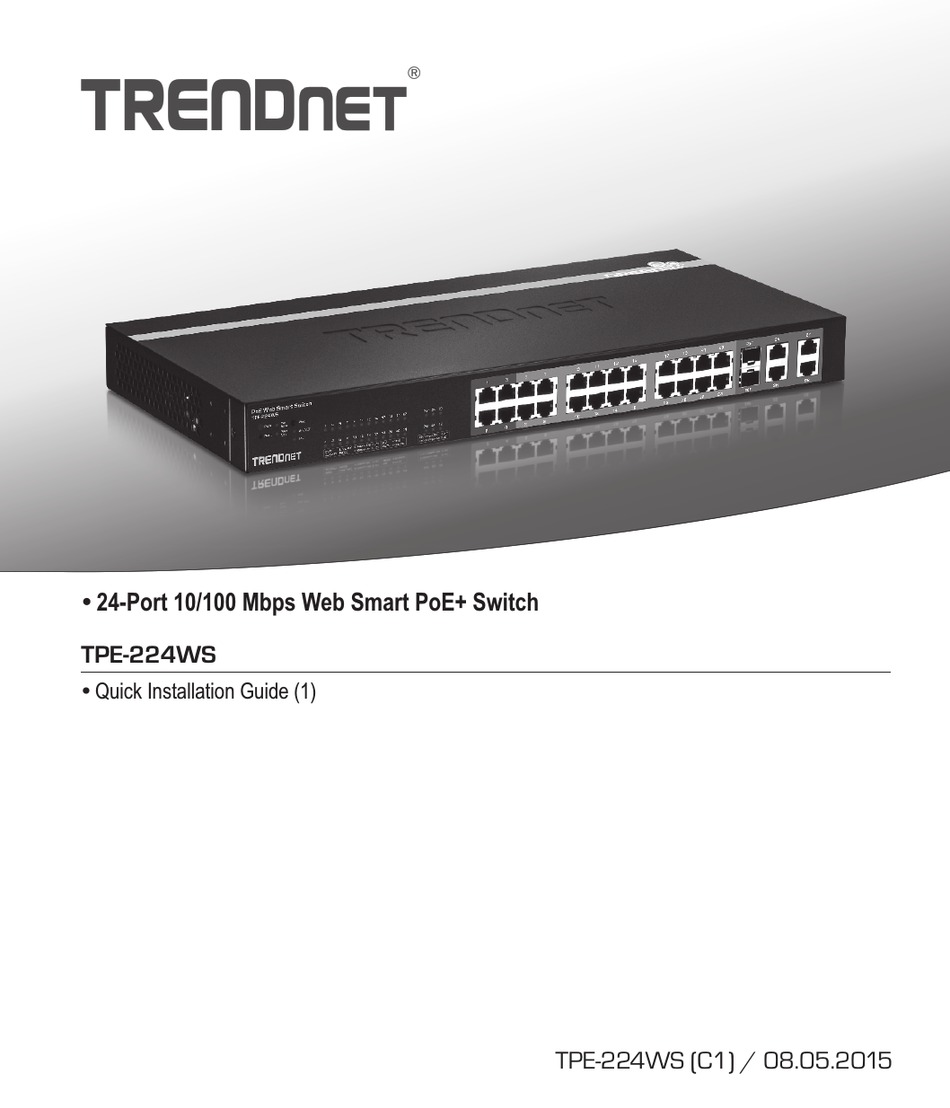

Ÿ 24-Port 10/100 Mbps Web Smart PoE+ Switch
TPE-224WS
Ÿ Quick Installation Guide (1)
TPE-224WS (C1) / 08.05.2015

Advertisement

loading

Related Manuals for TRENDnet TPE-224WS

Summary of Contents for TRENDnet TPE-224WS

  • Page 1 Ÿ 24-Port 10/100 Mbps Web Smart PoE+ Switch TPE-224WS Ÿ Quick Installation Guide (1) TPE-224WS (C1) / 08.05.2015...
  • Page 2 1. Before You Start Package Contents Ÿ TPE-224WS Ÿ Multi-Language Quick Installation Guide Ÿ CD-ROM (Utility and User's Guide) Ÿ Power cord Ÿ Rack mount kit Minimum Requirements Ÿ Computer with an Ethernet port and web browser Ÿ Network cable Optional Equipment Ÿ...

  • Page 3: Hardware Installation And Configuration

    3. Hardware Installation and Configuration 3. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0. 4. Open your web browser, type the IP address of the switch in the address bar, and then press Enter. The default IP address is 192.168.10.200.
  • Page 4 Address, change the password, and upgrade new firmware, then install the Web Smart Switch Management Utility. Follow the steps provided on the user's guide For detailed information regarding the TPE-224WS’s configuration and advanced settings, please refer to the User's Guide on the provided CD-ROM.
  • Page 5 24-Port 10/100 Mbps Web Smart PoE+ Switch TRENDnet Trade Name: TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011...
  • Page 8 Garantia Limitada A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e serviço. Os períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos no site da TRENDnet.
  • Page 9 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: Toll free US/Canada: 1-866-845-3673 http://www.trendnet.com/register Regional phone numbers available at www.trendnet.com/support...
