Summary of Contents for OLIGHT Seeker 4 Pro

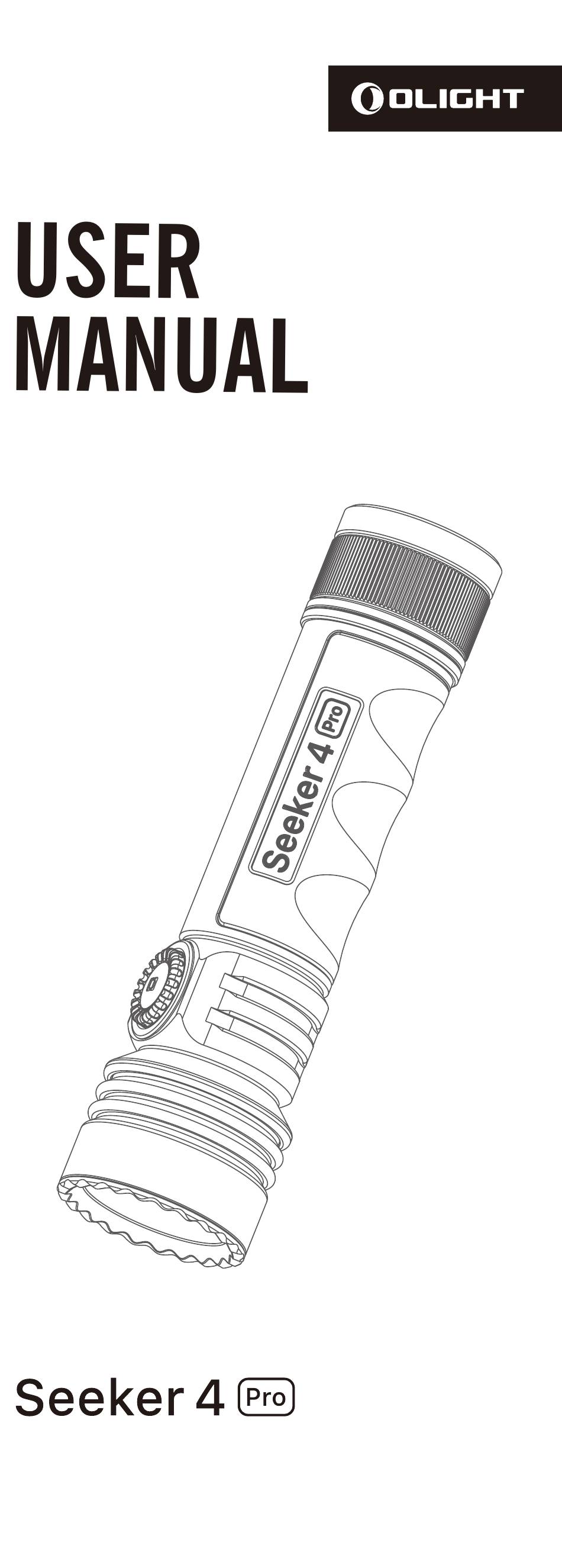

- Page 1 A powerful flashlight with a multifunctional holster.
- Page 2 100% 5 lumens MOONLIGHT 15days 100% 1.5m 16,895cd 260m 205g /7.23oz (L)133 *(D)35mm IPX8 (Including Battery) (L)5.24* (D)1.38in Rechargeable Li-ion Battery Working temperature: 0-40°C 5000 * Above data are tested per ANSI/NEMA FL 1-2009 standard in Olight's labs for reference.
- Page 3 5V/2A CC&CV 4.2V±0.05V 2.0A Output About 4.5 hours Time to fully charge Note: The MCC is not included in the package. If necessary, please purchase it from Olight Store. Figure 1 Remove the insulating film Unscrew Remove the insulating film...
- Page 4 Figure 2 Charging Battery Level Indicator Figure 3 × Lockout After being turned off, it will be locked out automatically if no operation is made within 10 seconds after the indicators are off. >10 sec...
- Page 5 Figure 4 Unlock Rotate the switch in any direction more than 90° to unlock. ＜1 sec Press and hold >1 sec...
- Page 6 Figure 5 On/Off Press Figure 6 Moonlight Press and hold ＞1 sec Moonlight...
- Page 7 Figure 7 Turbo Double press TURBO Figure 8 Strobe Triple press Strobe...
- Page 8 Figure 9 Change brightness level Press and hold Moonlight Turbo High Medium Figure 10-1 While off: Stepless increasing and decreasing Rotate clockwise, the memorized brightness level will increase steplessly. Rotate counterclockwise, the memorized brightness level will decrease steplessly. Stepless dimming...
- Page 9 Figure 10-2 While on: Stepless increasing and decreasing Rotate clockwise, the brightness level will increase steplessly. Rotate counterclockwise, the brightness level will decrease steplessly. Stepless dimming Figure 11 Timer Double press and hold Blink once : 3 min Blink twice : 9 min...
- Page 10 Figure 12 How to use the holster While off, remove the flashlight from the holster to unlock. While off, put the flashlight back to the holster to lock.
- Page 11 Figure 13 How to use the fixing bracket Use tools to punch holes in the wall or wooden board Insert the expansion screws Remove the 3M adhesive sticker on the back of the fixing bracket and align it with the hole on the wall （Note: Please stick the 3M adhesive sticker on a flat and smooth wall or car panel）...
- Page 12 Secure the bracket in place by screwing in the screws Hang the holster and flashlight...
- Page 13 Figure 14 How to take the vertical holster out of the fixing bracket Press the vertical holster against the fixing bracket Pull...
- Page 14 Figure 15-1 Brightness level indicators ≥50%(max) ≥10%(max) ≥5%(max) <5%(max) Figure 15-2 Battery Level indicators Green: ≥75% Green: 50%~75% Green: 25%~50% Green: 10%~25% Red: ＜10%...
- Page 15 （ EN ） English Multi-language dictionary, see Table 3. 1. Product parameters, see Table 1 and Table 2. 2. Operating instructions as below： 2.1 Remove the insulating film before use, see Figure 1. 2.2 Charging, see Figure 2. While charging, the battery level indicators on the dashboard will be dynamically illuminated.
- Page 16 See Figure 10-2. 3.7 Timer, see Figure 11. The Seeker 4 Pro has a long (9 minutes) and short (3 minutes) timer when the light needs to be automatically turned off. When the light is on, double press and hold the switch under the current brightness level to access the timer settings.
- Page 17 WARRANTY Within 30 days of purchase: Contact the original seller for repair or replacement. Within 5 years of purchase: Contact Olight for repair or replacement. Battery warranty: Olight offers a one-year warranty for all rechargeable batteries. Holster: One year. If you experience quality problems or damage with low-value fittings like lanyards or clips within 30 days of purchase under normal use conditions, please contact our after-sale service.
