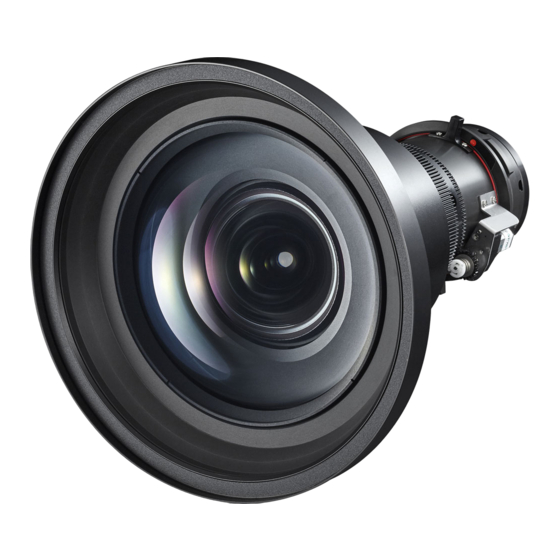

Panasonic ET-DLE060 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Camera Lens
  5. ET-DLE060
  6. Operating instructions manual
Panasonic ET-DLE060 Operating Instructions Manual

Panasonic ET-DLE060 Operating Instructions Manual

Hide thumbs Also See for ET-DLE060:

Advertisement

Quick Links

Download this manual
Thank you for purchasing this Panasonic product.
■ To ensure correct use of this lens, please read the operating instructions supplied

with the lens and the projector carefully.
■ Before using this product, be sure to read "Read this first!" (

■ Please save this manual for future use.

Operating Instructions
Zoom Lens 　　　　　　　　　
Model No.
Commercial Use
ET-DLE060
Page 3).
DPQX1249ZE/X1
ENGLISH
FRANÇAIS
日本語

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET-DLE060 and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic ET-DLE060

Summary of Contents for Panasonic ET-DLE060

  • Page 1 Model No. ENGLISH FRANÇAIS 日本語 Thank you for purchasing this Panasonic product. ■ To ensure correct use of this lens, please read the operating instructions supplied   with the lens and the projector carefully. ■ Before using this product, be sure to read “Read this first!” (  ...
  • Page 2 █ Contents Read this first! ..................3 Before Use.....................4 Attaching the Lens / Detaching the Lens ...........4 Before replacing the projection lens ............4 Attaching the Lens................... 5 Detaching the Lens ................. 6 Focus Adjustment ..................7 Projection relationships...............8 Lens shift ranges ................10 Specifications ..................12 Dimensions ..................12 Projected image size and Projection distance..Appendix / Annexe / 付録...
  • Page 3 Read this first! Always follow these precautions WARNING: Do not look at or place your skin into the light emitted from the lens while the projector is being used. Doing so can cause burns or loss of sight. z Strong light is emitted from the projector’s lens. Do not look at or place your hands directly into this light.
  • Page 4 Before Use ■ Supported projectors PT-RZ970 / PT-RW930 / PT-RX110 / PT-RZ770 / PT-RW730 / PT-RZ660 / PT-RW620 / PT-DZ870 / PT-DW830 / PT-DX100 / PT-DZ780 / PT-DW750 / PT-DX820 Note z This manual omits the alphabets at the end of projector model numbers. z Models other than the above may also be supported.
  • Page 5 Attaching the Lens / Detaching the Lens (continued) Attaching the Lens Attention z Before attaching the Projection Lens, remove the lens hole cover (only lens options models) and the two lens covers attached to the Projection Lens. The illustrations in this procedure depict use of the PT-RZ970 series as an example.
  • Page 6 Attaching the Lens / Detaching the Lens (continued) (i) Insert the tab on the lens Slot position Lens cover tab mount cover through the slot on the projector, and (ii) turn clockwise to secure lens mount cover. Attention z After attaching the projection lens, turn on the projector and perform lens calibration. Detaching the Lens The illustrations in this procedure depict use of the PT-RZ970 series as an example.
  • Page 7 Attaching the Lens / Detaching the Lens (continued) Focus Adjustment The focus balance of the center of the projected image and that of the peripheral areas differs depending on the size of the image. This lens is equipped with a function for adjusting the peripheral focus balance. ■...
  • Page 8 Projection relationships The dimensional relationship between the screen and the projector is shown below. ■ Dimensional relationship diagram Projected image L (LW/LT) Screen L (LW/LT) Note z This diagram assumes that the size and position of the projected image will be adjusted so that the image fills the entire screen.
  • Page 9 Projection relationships (continued) Attention z To prevent obstruction of the intake and exhaust vents, install the projector with a clearance at least 500 mm (1 ft. 7 in.) from walls and objects. If you are installing the projector in a sealed space, be sure to provide additional air conditioning equipment and ventilation equipment.
  • Page 10 Lens shift ranges If you perform lens calibration after attaching the projection lens, the projection lens moves to the home position after calibration is complete. Using the position of the projected image at the home position (i.e., the standard projection position) as a basis, you can use the lens shift adjustment function on the projector to adjust the position of the projected image within the respective lens shift ranges.
  • Page 11 Lens shift ranges (continued) Standard projection position PT-DZ870 0.10H 0.10H Projected image width H Standard projection position PT-DW830 0.10H 0.10H Projected image width H Standard projection position PT-DX100 0.10H 0.10H Projected image width H Note z The home position of the projector a point of origin position for the lens shift (i.e., vertical and horizontal positions of the lens) based on the results of lens calibration.
  • Page 12 Specifications F value 1.85 - 2.32 Focal Length (f) 9.16 mm (3/8") - 12.1 mm (15/32") Width 172 mm (6-25/32") Dimensions Height 172 mm (6-25/32") Depth 225 mm (8-27/32") Net Weight Approx. 1.3 k g (2.9 lb) Dimensions (Unit: mm) 225 (8-27/32") 12-ENGLISH...
  • Page 13 2-15 Matsuba-cho, Kadoma City, Osaka 571-8503, Japan Importer: Panasonic Connect Europe GmbH English Hagenauer Strasse 43, 65203 Wiesbaden, Germany Authorized Representative in EU: Panasonic Connect Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany Производител: Panasonic Projector & Display Corporation 2-15 Matsuba-cho, Kadoma City, Osaka 571-8503, Япония...
  • Page 14 2-15 Matsuba-cho, Kadoma City, Osaka 571-8503, Japón Importador: Panasonic Connect Europe GmbH Español Hagenauer Strasse 43, 65203 Wiesbaden, Alemania Representante Autorizado para la UE: Panasonic Connect Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburgo, Alemania Fabriqué par : Panasonic Projector & Display Corporation...
  • Page 15 2-15 Matsuba-cho, Kadoma City, Osaka 571-8503, Japan Importeur: Panasonic Connect Europe GmbH Nederlands Hagenauer Strasse 43, 65203 Wiesbaden, Duitsland Bevoegde vertegenwoordiger in de EU: Panasonic Connect Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Duitsland Produsert av: Panasonic Projector & Display Corporation 2-15 Matsuba-cho, Kadoma City, Osaka 571-8503, Japan Importør: Panasonic Connect Europe GmbH...
  • Page 16 2-15 Matsuba-cho, Kadoma City, Osaka 571-8503, Japão Importador: Panasonic Connect Europe GmbH Português Hagenauer Strasse 43, 65203 Wiesbaden, Alemanha Representante Autorizado na UE: Panasonic Connect Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburgo, Alemanha Fabricat de: Panasonic Projector & Display Corporation...
  • Page 17 MEMO ENGLISH-17...
  • Page 18 Manufactured by: Panasonic Projector & Display Corporation 2-15 Matsuba-cho, Kadoma City, Osaka 571-8503, Japan Importer: Panasonic Connect Europe GmbH Hagenauer Strasse 43, 65203 Wiesbaden, Germany Authorized Representative in EU: Panasonic Connect Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany Importer for UK:...
  • Page 19 Appendix / Annexe / 付録  z When the screen aspect ratio is 16:10 z Lorsque le rapport dʼaspect de l'écran est 16:10 z アスペクト比 16:10 （Unit / Unités / 単位 : m） PT-RZ970 / PT-RZ770 / PT-RZ660 / PT-DZ870 / PT-DZ780 Throw ratio / Rapport de projection / スローレシオ : [0.60 - 0.80:1] (for models other than the PT-DZ870) (for the PT-DZ870) (pour les modèles autres que le PT-DZ870)
  • Page 20 Appendix / Annexe / 付録  （continued / suite / つづき） z When the screen aspect ratio is 16:9 z Lorsque le rrapport dʼaspect de l'écran est 16:9 z アスペクト比 16:9 （Unit / Unités / 単位 : m） PT-RZ970 / PT-RZ770 / PT-RZ660 / PT-DZ870 / PT-DZ780 Throw ratio / Rapport de projection / スローレシオ : [0.60 - 0.80:1] (for models other than the PT-DZ870) (for the PT-DZ870) (pour les modèles autres que le PT-DZ870)
  • Page 21 Appendix / Annexe / 付録  （continued / suite / つづき） z When the screen aspect ratio is 16:9 z Lorsque le rrapport dʼaspect de l'écran est 16:9 z アスペクト比 16:9 （Unit / Unités / 単位 : m） PT-RX110 / PT-DX100 / PT-DX820 Throw ratio / Rapport de projection / スローレシオ : [0.62 - 0.83:1] (for models other than the PT-DX100) (for the PT-DX100) (pour les modèles autres que le PT-DX100)
  • Page 22 Appendix / Annexe / 付録  （continued / suite / つづき） z When the screen aspect ratio is 4:3 z Lorsque le rapport dʼaspect de l'écran est 4:3 z アスペクト比 4:3 （Unit / Unités / 単位 : m） PT-RZ970 / PT-RZ770 / PT-RZ660 / PT-DZ870 / PT-DZ780 Throw ratio / Rapport de projection / スローレシオ : [0.72 - 0.97:1] (for models other than the PT-DZ870) (for the PT-DZ870) (pour les modèles autres que le PT-DZ870)
  • Page 23 Appendix / Annexe / 付録  （continued / suite / つづき） z When the screen aspect ratio is 4:3 z Lorsque le rapport dʼaspect de l'écran est 4:3 z アスペクト比 4:3 （Unit / Unités / 単位 : m） PT-RX110 / PT-DX100 / PT-DX820 Throw ratio / Rapport de projection / スローレシオ : [0.62 - 0.83:1] (for models other than the PT-DX100) (for the PT-DX100) (pour les modèles autres que le PT-DX100)
  • Page 24 Appendix / Annexe / 付録  （continued / suite / つづき） Note z A ±5 % error in listed projection distances may occur. In addition, when [KEYSTONE] is used, distance is corrected to become smaller than the specified screen size. z The throw ratio is based on the value during projection with the projected image size of 3.81 m (150"). Remarque z Une erreur de ±5 % dans des distances de projection énumérées peut se produire.
  • Page 25 Appendix / Annexe / 付録  （continued / suite / つづき） z Projection distance formulas z Formules de distance de projection z 投写距離計算式   The dimensions of the following table contain a slight error. Periods are used to represent decimal points in the calculation formulas in the following table. Les dimensions du tableau suivant peuvent présenter un léger écart.
  • Page 26 Panasonic Projector & Display Corporation Web Site : https://docs.connect.panasonic.com/projector Panasonic Projector & Display Americas LLC Two Riverfront Plaza, Newark, NJ 07102 TEL: +1-201-348-7000 パナソニック プロジェクター＆ディスプレイ株式会社 〒 571-8503　大阪府門真市松葉町２番 15 号　 電話 0120-872-601 SS0318AM4045 -PS © Panasonic Projector & Display Corporation 2025...
