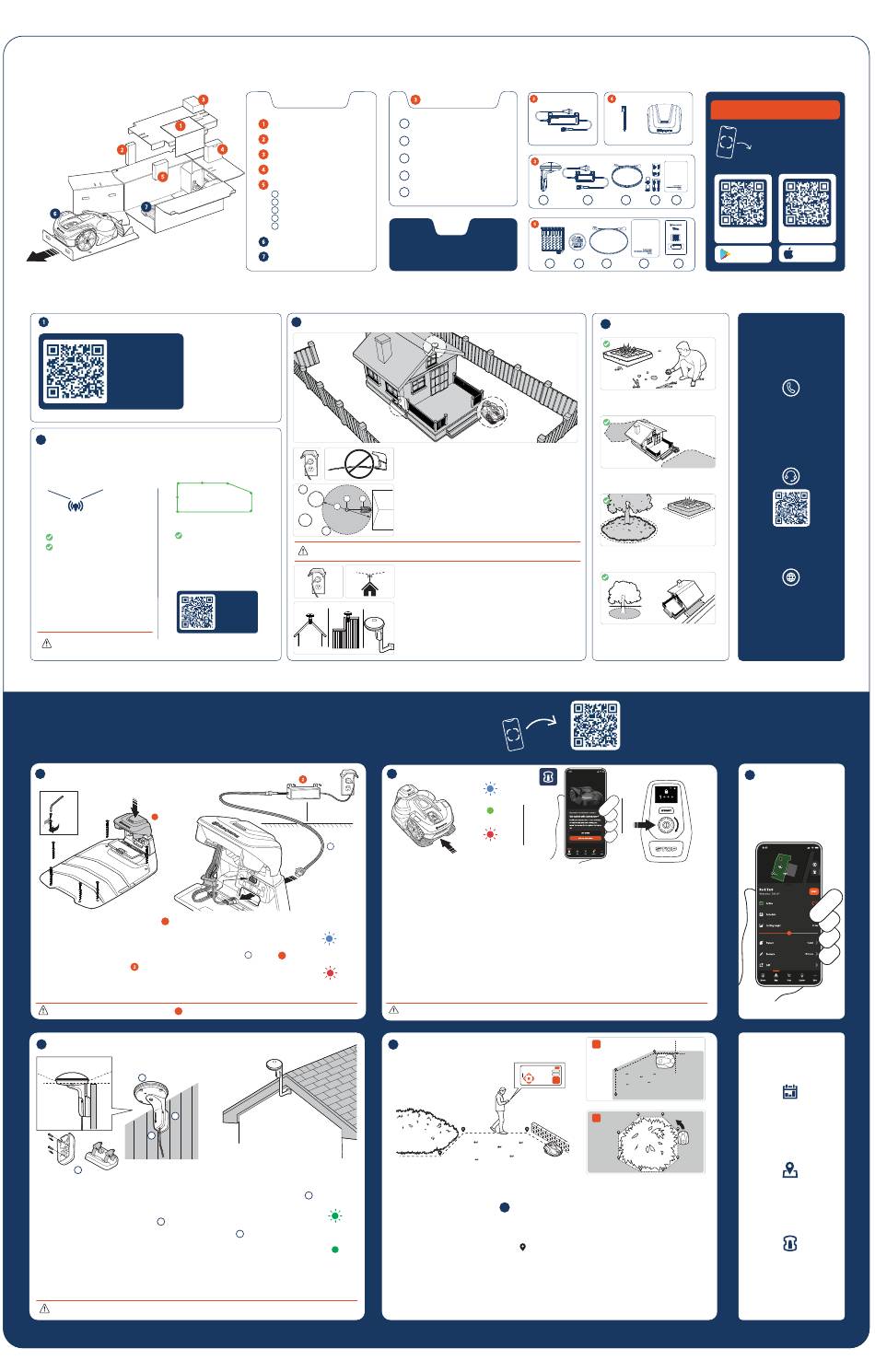

Husqvarna AUTOMOWER 440 iQ Manual

What's in the box
We've included everything you need to get started.
Before you start
Get set up for success with these pre-installation tips.
Watch video
Before starting, scan the QR
code to access our YouTube™
playlist with setup tutorials.
These videos will guide you
step-by-step through the
installation process, ensuring a
smooth and efficient setup of
Watch the Tutorial
your Automower® robotic
mower.
Choose Your Installation Type
2
We recommend installation with our EPOS™ (Exact Positioning Operating System)
reference station, with wired support if needed. You can also set up an installation with
a boundary wire.
135°
Boundary wire installation
EPOS™ installation
Use if the mowing area does
Works for most mowing areas
not have full visibility of the sky.
Reference station must have a
⚠
clear 135° view of sky in all upper
Requires additional materials.
directions.
Visit Husqvarna.com/iQ for
additional hardware.
Support by wire in areas with:
• Significant tree coverage
• Tall structures
• Narrow passages
Important: Your reference station must be
installed where it has a clear 135° view of the
sky.
Overview
For installation instructions, please refer to our online tutorials and your operators manual at Husqvarna.com/iQ.
Charging Station
5
4
Attach the cap of the charging station from box and tilt it into position. Secure the cables in the charging station using
4
the integrated grommet.
(Black cable) Connect to the charging station.
- Black Connector
- White Connector (Red/Black cable) Connect to the low voltage cable
- Power Supply From box Mount at least 12in / 30 cm from the ground and plug into outlet.
- Stakes / Screws Secure the cables in the ground with the stakes, attach station to
level ground and secure with the screw.
Important: You MUST use the low voltage cable in box
to connect the power supply to the charging station
5
EPOS Reference Station
™
6
135°
a
d
c
d
Follow the step by step video guides at Husqvarna.com/iQ to install the reference station.
- Mounting Requires a clear view of the sky (135°+ field of view)
Use the provided brackets to mount on a vertical surface or on a pole**
d
- Connection Remove the cable cover, connect the low-voltage cable,
Connect low voltage cable to the power supply, wait until the green light changes
- Readiness
from flashing to solid, This may take up to 1 hr.
Once solid green, open The Automower®
though pairing to the reference station, mower and charging station.
Tip: It can take up to 1 hr for the light to turn solid green. Consider an alternative mounting location if the light does not stop flashing.
Automower® iQ Series
Welcome Guide
Charging Station Power Supply
RS1 EPOS™ Reference Station
Charging Station Cap and Wire Stakes
Installation Parts Box
f Charging Station Screws
g
GPS Decal
h
Charging Station Low Voltage Cable
i
Operator's Manual
j
Endurance Blades
Automower® iQ Series Robotic Mower
Charging Station Base
Plan Your Installation
3
3ft-8 ft
B A
C
20ft
Plan ahead: When you map your work area, your docking point (B) needs to be in your work area or
connected to it with a transport path
135°
Scan here for wire
install materials
minimum
12 in / 30 cm
h
Charging Station
Low Voltage Cable
Feed the low voltage cable
through the back of charging
station
BLUE lights
from box
h
5
connected correctly
RED lights
not correct, recheck connections
a
FLASHING green light
replace cover.
c
searching for satellites
SOLID green light
Connect app which will guide you
connected to satellites
EPOS™ Reference Station
a Reference Station
b Reference Station Power Supply
c
Reference Station Low Voltage Cable
d (2) Support Brackets and (2) Clamps
e EPOS™ Operator's Manual
a
Tip
I. Ensure you use the right low voltage
cable
II. If anything is missing, contact Customer
f
Service immediately.
Charging Station installation
Choose location where station has:
1. A power outlet nearby.
2. Flat, level ground.
3. A point 3-8 ft in front of the station (called a docking point
(B)) that has a clear view of sky for satellite connection (90°+
field of view above mower).
4. A minimum of 20 ft. / 6 m / (C) free space in front of the
charging station (A).
EPOS™ Reference Station installation
Choose location where station has:
1. A clear view of the sky (135°+ field of view)
2. A power outlet nearby.
3. A vertical surface to attach to e.g side of building, on a tall
fence or on a pole**.
**Visit Husqvarna.com/iQ for additional mounting options
and additional hardware.
Pairing with Mower
7
Automower
Ready to pair with mower*
Paired with mower, OK
Error, Check manual
*With EPOS Install
The Automower® Connect app will guide you though connection and setup.
- Pairing with mower
- When in pairing mode the mower is discoverable for 180 seconds.
- You will connect mower to your wifi network.
- Pairing the mower to Husqvarna cloud enables remote operation.
- Setting a geofence increases security.
- Pairing mower to
- A solid green light on the reference station is needed to pair to it.
reference station
- If you move the reference station after creating virtual boundaries, you will need to
recreate them to maintain accuracy.
- Pairing mower to - Pair with the charging station after reference station setup.
charging station - The charging station goes into pairing mode for 180 seconds after powering on.
- Once paired you will be prompted to set up the docking point.
- Defining a docking point provides the mower a clear place to connect to satellites (can
take up to 1hr on first operation).
Important: Check your main phone settings to ensure the Automower® Connect app has access to Bluetooth connectivity.
Virtual boundaries in Connect app.
8
waypoint
Walk behind the mower as you create virtual bounadaries
The Automower® Connect app will guide you on how to create virtual boundaries to map
the following with the App Drive feature.
- Docking Point - See section above
3
- A point 3-8 ft in front of the charging station
pauses at this point to gain satellite signals (may pause for approx. 60 minutes on first use)
- Must be in a work area or connected to one via a transport path.
- Waypoints - Intermediate points added to enable the mower to navigate around work areas,
stay out zones and follow transport paths.
- Work areas
- Mowing areas, you can map separate work areas with individual settings and schedules.
- Stay out zones - Zones within your work area that you do not want to mow, e.g. tree mounds.
- Transport paths - Paths for the mower to travel to separate work areas and back to your docking point (B)
to enable the mower to charge.
Download Automower® Connect
Download Automower® Connect
*100
e
b c d
Husqvarna Automower
BLADES
g h i j
Prepare Your Yard
4
Pick up any sticks or debris
Plan your work area (mowing area)
determine how many areas are needed.
Plan stay out zones (areas you don't
want to mow) within your work area.
Check and plan for any major overhead
obstacles that may block satellite
signals.
Access step-by-step
installation videos
The factory default PIN is 1234.
+
waypoint
waypoint
+
Waypoints are mapped
to the front left corner
starting
of the mower
waypoint
Steer mower clockwise around a work area setting waypoints
+
Steer mower counter clockwise to define stayout zones
(A) that has clear view of sky. The mower
You'll use this app to install
the mower, manage your
mower's schedule, cut
height, and more.
Download Now Download Now
Get it on Down the App on
App Store
Google Play
Need Help?
For questions and support,
please contact our Customer
Service team.
833-991-ROBO (7626)
Call our Customer Service
team for any questions or
assistance with your product.
Monday to Friday, 8am - 8pm EST
Online chat for quick troubleshooting
and common questions.
Additional Resources
Visit our website for
information on professional
installation, how-to videos,
frequently asked questions
and more.
Husqvarna.com/iQ
Work Area Settings
9
You can adjust the settings for
each work area by opening the
map menu and tapping on each
area, zone or object to select it.
What's Next?
Schedule Adjustment
Adjust the schedule through the
app anytime to better suit
your lawn.
Fine-tuning Boundaries
Easily update and refine the
mowing boundaries in the app.
Maintenance
Refer to the app for notifications
about blade replacements or
system updates.
REV3 / 548666801 /SHEET.iQSERIES.CARTON.WELCOME
