Summary of Contents for Nokia 5120 - Cell Phone - AMPS

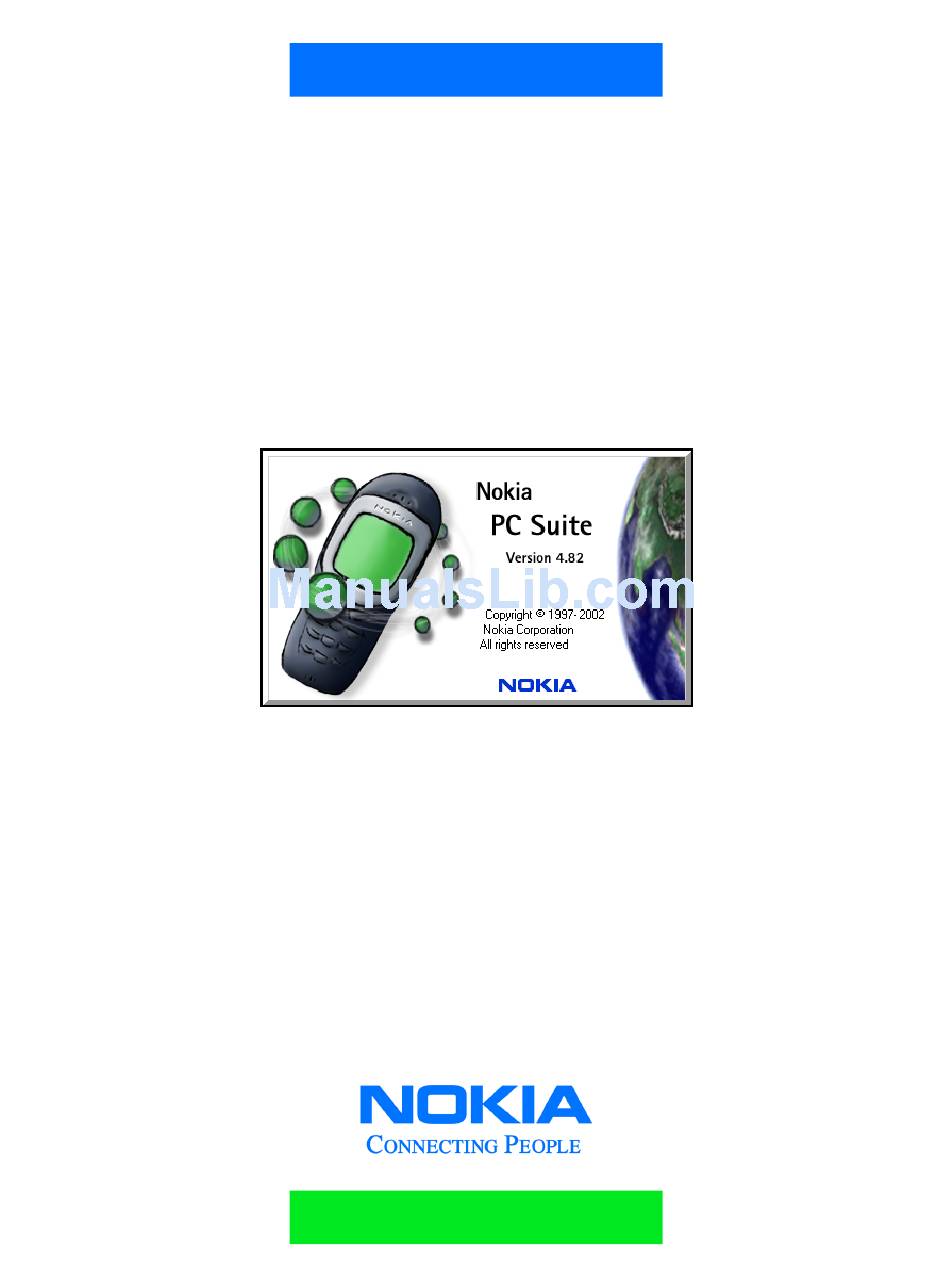

  • Page 1 Nokia PC Suite 4.82 User Guide PC/PDA Connectivity Guide for the Nokia 6310i Phone...
  • Page 2 Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia operates a policy of on-going development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.
  • Page 3: Table Of Contents

    Nokia Connection Manager and Bluetooth connections........
  • Page 4 10 Wireless modem setup for Nokia 6310i phone........
  • Page 5 Configuring the Macintosh OS ................49 Other applications .
  • Page 6: Introduction

    PC Personal Information Manager (PIM) application for use with Nokia PC Sync Note: Nokia Content Copier (a component of Nokia PC Suite) supports a variety of Nokia phones, some of which make their connection to a PC via serial cable. For a list of compatible phones and connection methods, please see “Compatible phones”...
  • Page 7: Printing This Guide

    There must be no obstructions between the two devices and the IR ports of the two devices have to be pointing at each other. Your Nokia phone is a Class 1 Laser Product. Enable infrared communications Windows Millennium Edition (ME), Windows 2000, and Windows XP (Home or Professional) users do not need to enable infrared communications on their PC prior to using this feature.
  • Page 8: Important Notes About Infrared (Me/Xp/2000 Sp2 + Srp)

    Nokia recommends that users of Windows Me, XP, or 2000 (with SP2 and SRP) perform the modem installation prior to installing PC Suite. Please see “Wireless modem setup for Nokia 6310i phone” on page 32 and perform this task prior to installing Nokia PC Suite.
  • Page 9: Install Nokia Pc Suite 4.82

    Install Nokia PC Suite 4.82 2 Install Nokia PC Suite 4.82 Nokia PC Suite 4.82 is a collection of powerful tools that you can use to manage your phone’s features and data. PC Suite consists of the following components: •...
  • Page 10: Remove Pc Suite

    Click Start, point to Settings, then click Control Panel. Double-click Add/Remove Programs. Scroll through the list of installed applications, then click Nokia PC Suite 4.82. Click the Add/Remove button. Click Remove from the Nokia PC Suite Setup window, then click Next.
  • Page 11: Nokia Connection Manager And Bluetooth Connections

    3 Nokia Connection Manager and Bluetooth connections • NOKIA CONNECTION MANAGER Nokia Connection Manager is a utility that allows you to select or change the type of connection between your phone and PC. You may need to use Connection Manager when (for example): •...
  • Page 12: Understand Bluetooth Connections

    Please use this device when creating DUN configuration for use with your phone. Performing the wireless modem setup using the Nokia Bluetooth modem drivers is not necessary with your Bluetooth device and may cause interference with your existing Bluetooth connection manager software.
  • Page 13: Nokia Content Copier

    Nokia Content Copier uses a wizard-style interface to help you perform the tasks listed above. Launch Content Copier from the Start Menu (Start - Programs - Nokia PC Suite 4 - Content Copier), then select the task you would like to perform. Follow the on-screen instructions to complete the task you want to perform.
  • Page 14: Nokia Content Copier Log

    Nokia Content Copier log When you have successfully completed one of the Nokia Content Copier tasks, the Finish screen is displayed along with a log of the tasks that were just performed. At the Finish screen, you have the following options: •...
  • Page 15: Other Phones

    Nokia Content Copier • OTHER PHONES Due to software and hardware differences between generations of phone technology, the following phones are not compatible with Content Copier: Protocol Nokia model number TDMA 5120, 5125, 5160, 5165, 6120/6120i, 6160/6160i/6160m 6161/6161i, 6162/6162i/6162m, 8260...
  • Page 16: Nokia Pc Composer

    5 Nokia PC Composer Nokia PC Composer allows you to create new ringing tones for your Nokia phone. Once you create a new ringing tone, you can transfer it to your phone (via IR or DLR-3P cable). You can also send a ringing tone you create with PC Composer via SMS to another compatible phone in your network.
  • Page 17: Compose A New Ringing Tone

    70. Use the note counter to the right of the Status Bar to monitor the length of your new ringing tone. Create a new ringing tone Launch Nokia PC Composer (click Start, point to Programs, point to Nokia PC Suite, then click Nokia PC Composer). Insert point Click the appropriate note (or rest) button.
  • Page 18: Other Pc Composer Views

    Nokia PC Composer DELETE MULTIPLE NOTES/RESTS Click the Selection tool button on the toolbar. Draw a bounding outline (marquee) with the mouse around the group of notes or rests you want to delete (result: the group of notes are highlighted in blue).
  • Page 19: Send Ringing Tone To Another Phone

    • CREATE RINGING TONES FROM MIDI FILES Nokia PC Composer allows you to open Standard MIDI files, then convert the data to ringing tone format. Now you can carry your favorite PC MIDI file as a ringing tone in your phone.
  • Page 20: Work With Rtttl Ringing Tone Files

    Nokia PC Composer Edit and save You may need to edit the converted MIDI information (adjust note lengths, remove extra rests, etc.) so that the tune plays correctly. For more information on editing a ringing tone, please refer to “Edit a ringing tone” on page 12.
  • Page 21: Nokia Pc Sync

    Warning: To avoid any potential loss of data, you should not make or receive calls while synchronizing data between the phone and your PC. Nokia PC Sync cannot be used while a data call is in progress. Likewise, you cannot initiate a data call while synchronizing data with PC Sync.
  • Page 22: Understand The Basics Of Synchronization

    SIM card are not synchronized with your PIM application. Nokia PC Sync remains running in the background after you synchronize for the first time. PC Sync places an icon in the Task Bar tray, indicating that the application is running. The colors of the icon change, depending on the status of the infrared connection between your phone and PC.
  • Page 23: Initiate Synchronization

    If at some point you change PIM applications or upgrade to a newer version of your current PIM, you must configure PC Sync to work with the new application. Select New Synchronization from the Nokia PC Suite program group, then follow the instructions on page 16.
  • Page 24: Other Pim Applications

    To update PC Sync’s settings to synchronize with your custom list: Establish a connection between your phone and PC. Launch Nokia PC Sync from your PC’s Start menu. If you have PC Sync enabled on startup, right-click the PC Sync tray icon, then click Properties.
  • Page 25 UPDATE PC SYNC’S LOTUS ORGANIZER SETTINGS Establish a connection between your phone and PC. Launch Nokia PC Sync from your PC’s Start menu. If you have PC Sync enabled on startup, right-click the PC Sync tray icon, then click Properties.
  • Page 26: Nokia Pc Graphics

    7 Nokia PC Graphics Nokia PC Graphics is a program that allows you to create and edit picture messages, as well as graphics that can be used for picture messaging. You can also create and edit new caller group logos.
  • Page 27: Transfer A Graphic To Your Phone

    Nokia PC Graphics Draw a new picture The type of picture you select determines the size and overall dimensions of the drawing area. The drawing area is divided into blocks that can be filled in to create the new picture.
  • Page 28: Work With An Existing Graphic

    Establish a connection between your phone and PC. Click Tools, point to Picture type, then click Picture message. Click OK (as needed) to confirm any change in picture size required by Nokia PC Graphics. Click the Read from phone button (or select the Read from phone command from the Tools menu).
  • Page 29 Nokia PC Graphics With the Nokia PC Graphics application running: Click Tools, point to Picture type, then select the type of graphic you want to create (Group logo or Picture message). Click OK (as needed) to confirm any change in picture size required by PC Graphics.
  • Page 30: Nokia Application Installer

    Java applications consist of two files and can be identified by the .JAD and .JAR file extensions. When you download Java applications to your PC for use with your phone, make sure you save both files to the same location. If Nokia Application Installer cannot find the .JAR file, a dialog box opens and prompts you for the location of the file.
  • Page 31: Nokia Phone Editor

    Nokia Phone Editor 9 Nokia Phone Editor Nokia Phone Editor is a program that allows you to edit and manage various functions of your phone from the keyboard of your PC. Phone Editor consists of the following components: • Contacts - used to manage phone book entries in your SIM card and in the phone’s memory. Also used to store contact information on your PC •...
  • Page 32: Manage Contacts Using Phone Editor

    Nokia Phone Editor • MANAGE CONTACTS USING PHONE EDITOR Once you launch Nokia Phone Editor, click the Phone folder in the contacts directory. A list of all phone book entries is displayed in the pane to the right of the contacts directory.
  • Page 33: Tour The Messages Window

    Nokia Phone Editor Copy and move contacts Your PC’s hard drive offers you virtually unlimited storage space for names and numbers. You can copy phone book entries to the Phone Editor’s PC folder to back up your data, or move entries to the PC folder, (freeing memory for other entries).
  • Page 34: Send And Manage Sms Messages

    • SEND AND MANAGE SMS MESSAGES You can use Nokia Phone Editor’s Messages application to send and manage SMS messages from your PC. When your launch the Phone Editor application (with your phone connected via IR), the contents of your phone’s message folders are read into the phone.
  • Page 35: Edit Profiles And Caller Groups

    While reading a message, select the Save As command from the Message menu. • EDIT PROFILES AND CALLER GROUPS You can use Nokia Phone Editor’s Profiles application to view your profiles and caller groups settings at a glance. You can edit profile and caller group settings quickly and easily from your PC’s keyboard.
  • Page 36: Edit Settings

    Type the new name, then press ENTER to save your changes. • EDIT SETTINGS You can use Nokia Phone Editor’s Settings application to view and edit a variety of phone settings, as well as configure how Phone Editor handles items you delete. The Settings application divides all of the settings into three properties tabs, as described below: •...
  • Page 37: Wireless Modem Setup For Nokia 6310I Phone

    Your Bluetooth adapter may have already installed the necessary software to make a dial-up networking (DUN) connection for use with your favorite data applications. The Modem Setup for Nokia 6310i application should be used only for wireless modem setup using either IR or DLR-3P cable.
  • Page 38: Infrared And Windows 2000 Professional Operating System

    Microsoft redesigned its implementation of infrared services with the release of Windows 2000 Professional. To make an IR serial connection between IR-equipped Nokia phones and IR-equipped PCs running Windows 2000, you must download and install the following Microsoft software update:...
  • Page 39: Connecting With Ir (Windows Xp Home And Professional Operating System)

    Wireless modem setup for Nokia 6310i phone Confirm successful installation of your phone via the Phone and Modem Options Control Panel. Use this new device with your data application (example: Dial-up Networking). • CONNECTING WITH IR (WINDOWS XP HOME AND PROFESSIONAL OPERATING SYSTEM) Wireless modem support using IR with Windows XP is similar to that of the Windows 2000 operating system with the security update applied.
  • Page 40: Configure Your Data And Fax Software

    In addition, the fastest CSD data rate available is 14.4k bps. General Packet Radio Service (GPRS) Your Nokia phone is one of the first in a new generation of phones to take advantage of a new higher-speed data protocol called GPRS (General Packet Radio Service). The benefits to you include: •...
  • Page 41: Configure Your Phone For Gprs Data

    You must establish a connection between your PC and your phone and must already have installed your phone as a modem. • Your data software must be running and configured to recognize your Nokia phone as the active modem. • CONFIGURE YOUR PHONE FOR GPRS DATA Before you can use your phone as a wireless modem on your service provider’s GPRS data network, your phone must be configured...
  • Page 42: Configure America Online To Connect Via Gprs

    (including corporate e-mail server using Microsoft Outlook, or Lotus cc:Mail). Rather than altering the existing configurations you use when dialing with your existing modem, consider creating a new connection exclusively for use with your Nokia phone (as detailed below). GATHER CONFIGURATION INFORMATION You need the phone number for your Internet service provider or for your company’s remote access server.
  • Page 43: Other Data Applications

    Any touch tones (DTMF tones) needed for calling cards, special long-distance access numbers, etc. must be programmed into the dialing string. • OTHER DATA APPLICATIONS There are several other types of telecommunications applications that can be used with your Nokia phone and your computer. Some of these include: •...
  • Page 44: For America Online (Aol) Users-Csd

    • Establish an infrared connection between your phone and PC. • Use the data program’s setup menu to set your Nokia phone as the active modem. Consult the program’s User Guide or Help menu for more information. • Review the information, “Requirements for digital data calls” on page 1.
  • Page 45: Hardware Setup

    (for example: immediately, on the third ring, etc.). This menu may also provide you with a list of available modems that you can use when sending and receiving fax calls. Use your fax program’s settings menu to select your Nokia phone as the active fax modem. Hardware setup Use the modem properties dialog box of your fax software to confirm the following settings: •...
  • Page 46: Connect To Palmos Devices

    Connect to PalmOS devices 12 Connect to PalmOS devices Important: The following instructions are based on PalmOS (operating system) software 3.3 and those devices that can run this version (or newer versions) of the operating system. For more information, please visit: •...
  • Page 47: Connections Preferences

    • CONNECTIONS PREFERENCES Before you can make data calls using your Palm OS device and your Nokia phone as a wireless modem, you need to create a new connection device in the Connections preferences folder. Tap the Applications icon, then tap Prefs Tap the Categories drop-down menu, then tap Connection.
  • Page 48 Connect to PalmOS devices GPRS data connection Now that your Nokia phone is configured as a wireless modem for use with your PalmOS device, you need to create a dial-up network service configuration to connect you to the GPRS data network.
  • Page 49: Connect To Pocketpc Devices

    You can use your Nokia phone as a wireless modem with Pocket PC devices, then use these devices to check e-mail or browse the Web.
  • Page 50: Configure A Modem Connection-Gprs

    • CONFIGURE A MODEM CONNECTION-GPRS The procedure for creating a new modem connection for use with your Nokia phone is similar to that found in the various Windows desktop operating systems. Important: You may need to first disable your Pocket PC’s option that automatically begins synchronization when an infrared connection is detected.
  • Page 51: Configure A Modem Connection-Csd

    • CONFIGURE A MODEM CONNECTION-CSD The procedure for creating a new modem connection for use with your Nokia phone is similar to that found in the various Windows desktop operating systems. However, before you can configure your PocketPC for a CSD data call, you need to obtain the required setup information from your ISP or corporate network’s Helpdesk.
  • Page 52 Connect to PocketPC devices Tap New Connection, then enter a name for the connection (example: Internet-Nokia phone). Click the modem selection drop-down arrow, then select the IrCOMM or Generic IrDA option (for IR), Hayes Compatible on COM1 (for DLR-3P), or the Bluetooth option.
  • Page 53 Tap the Start icon , then tap Programs. Tap Connections, then tap your new modem connection (example: Internet-Nokia phone). Enter your user name, password, and domain (if necessary). Click Connect. When you have successfully logged on to the network, the Pocket PC’s status screen will show the message Device Connected.
  • Page 54: Connecting To The Macintosh

    If you are already using your existing modem (either built-in or PCMCIA card) to connect to your company’s network, the Internet, or to send and receive faxes, you will have to use the Modem control panel to switch the active modem to your Nokia phone each time you need to use it.
  • Page 55 • OTHER APPLICATIONS You can use your Nokia phone with your favorite fax application to send and receive faxes. Please read the section, “Configure your data and fax software” on page 30 for more information on configuring your fax software to be used with your Nokia phone.
  • Page 56 Index configuring data call (PocketPC OS) Abbreviations 2 dial-up connection for PalmOS About MIDI files 14 Dial-up Networking Access point 36 modem setup (PocketPC OS) Add contact to caller group 28 Add new contact 27 when to use America Online CSD (Circuit Switched Data) 35 GRPS settings Custom contact list 18...
  • Page 57 PocketPC OS New modem connection 36 GPRS configuration New Synchronization 18 modem setup (CSD) Nokia Modem Setup (Windows 2000) 33 Note capacity 12 Prerequisites ringing tone digital data/fax calls Notes on data calls 38 Print SMS messages 29 NT Workstation 4.0 34...
  • Page 58 RTTTL Using with PC Composer Safety notes 2 Save new ringing tone 13 Save SMS message as text file 30 Saving phone data 9 Send ringing tone options 13 Send SMS message 29 Send tone 14 Send/manage SMS messages 29 Sending ringing tone to phone 13 Settings edit...
  • Page 59 ../graphics/PCS_splash.tif @ 300 dpi 1 ../graphics/n2_CMYK.tif @ 300 dpi 1 ../graphics/java_color.eps 2 ../_graphics/icon note.eps 1 ../_graphics/icon note.eps 1 ../_graphics/interrupt.tif @ 300 dpi 3 ../_graphics/interrupt2.tif @ 300 dpi 3 ../_graphics/icon note.eps 4 ../_graphics/cable_detect.tif @ 300 dpi 4 ../_graphics/cm_icon1.tif @ 300 dpi 6 ../_graphics/cm_new.tif @ 300 dpi 6 ../_graphics/cm_icon2.tif @ 300 dpi 6 ../_graphics/buttons.tif @ 300 dpi 6...
  • Page 60 ../_graphics/open.tif @ 300 dpi 15 ../_graphics/icon warning.eps 16 ../_graphics/icon important.eps 16 ../_graphics/pcs_gen.tif @ 300 dpi 16 ../_graphics/pcs_gen_advanced2.tif @ 300 dpi 16 ../_graphics/pcs_cal_todo.tif @ 300 dpi 16 ../_graphics/pcs_contacts.tif @ 300 dpi 17 ../_graphics/sync_now.tif @ 300 dpi 17 ../_graphics/icon important.eps 17 ../_graphics/icon important.eps 17 ../_graphics/tray3.tif @ 300 dpi 17 ../_graphics/tray2.tif @ 300 dpi 17 ../_graphics/sync_icon.tif @ 300 dpi 17...
  • Page 61 ../_graphics/app_installer.tif @ 300 dpi 25 ../_graphics/icon important.eps 25 ../_graphics/install_button.tif @ 300 dpi 25 ../_graphics/icon note.eps 25 ../_graphics/icon note.eps 25 ../_graphics/sel_phone.tif @ 300 dpi 25 ../_graphics/icon important.eps 26 ../_graphics/contacts_editor.tif @ 300 dpi 26 ../_graphics/context menu.tif @ 300 dpi 27 ../_graphics/phone folder.tif @ 300 dpi 27 ../_graphics/new contact.tif @ 300 dpi 27 ../_graphics/add_info.tif @ 300 dpi 27 ../_graphics/icon important.eps 27...
  • Page 62 ../_graphics/tray_ir2.tif @ 300 dpi 32 ../_graphics/icon important.eps 32 ../_graphics/5.tif @ 300 dpi 33 ../../7210i_Vanessa PC Suite/graphics/w2ksearch.tif @ 300 dpi 33 ../../7210i_Vanessa PC Suite/graphics/w2k_new.tif @ 300 dpi 33 ../../7210i_Vanessa PC Suite/graphics/w2k_mcp.tif @ 300 dpi 34 ../_graphics/icon tip.EPS 36 ../_graphics/folder.tif @ 300 dpi 36 ../_graphics/newcon.tif @ 300 dpi 36 ../_graphics/gprs_dun.tif @ 300 dpi 36 ../_graphics/icon note.eps 37...
  • Page 63 ../_graphics/ppc4.tif @ 300 dpi 46 ../_graphics/ppc3.tif @ 300 dpi 46 ../_graphics/gprs_ppc4.tif @ 300 dpi 46 ../_graphics/ppc_start.tif @ 72 dpi 46 ../_graphics/gprs_ppc3.tif @ 300 dpi 46 ../_graphics/icon important.eps 46 ../_graphics/ppc_start.tif @ 72 dpi 46 ../_graphics/ppc1.tif @ 72 dpi 47 ../_graphics/ppc2.tif @ 300 dpi 47 ../_graphics/ppc3.tif @ 300 dpi 47 ../_graphics/ppc4.tif @ 300 dpi 47 ../_graphics/ppc_start.tif @ 72 dpi 48...
