dji OSMO 360 User Manual

dji OSMO 360 User Manual

Hide thumbs Also See for OSMO 360:

Advertisement

Quick Links

Download this manual
User Manual
v1.0 2025.07

Advertisement

loading
Need help?

Need help?

Do you have a question about the OSMO 360 and is the answer not in the manual?

Questions and answers

Related Manuals for dji OSMO 360

Summary of Contents for dji OSMO 360

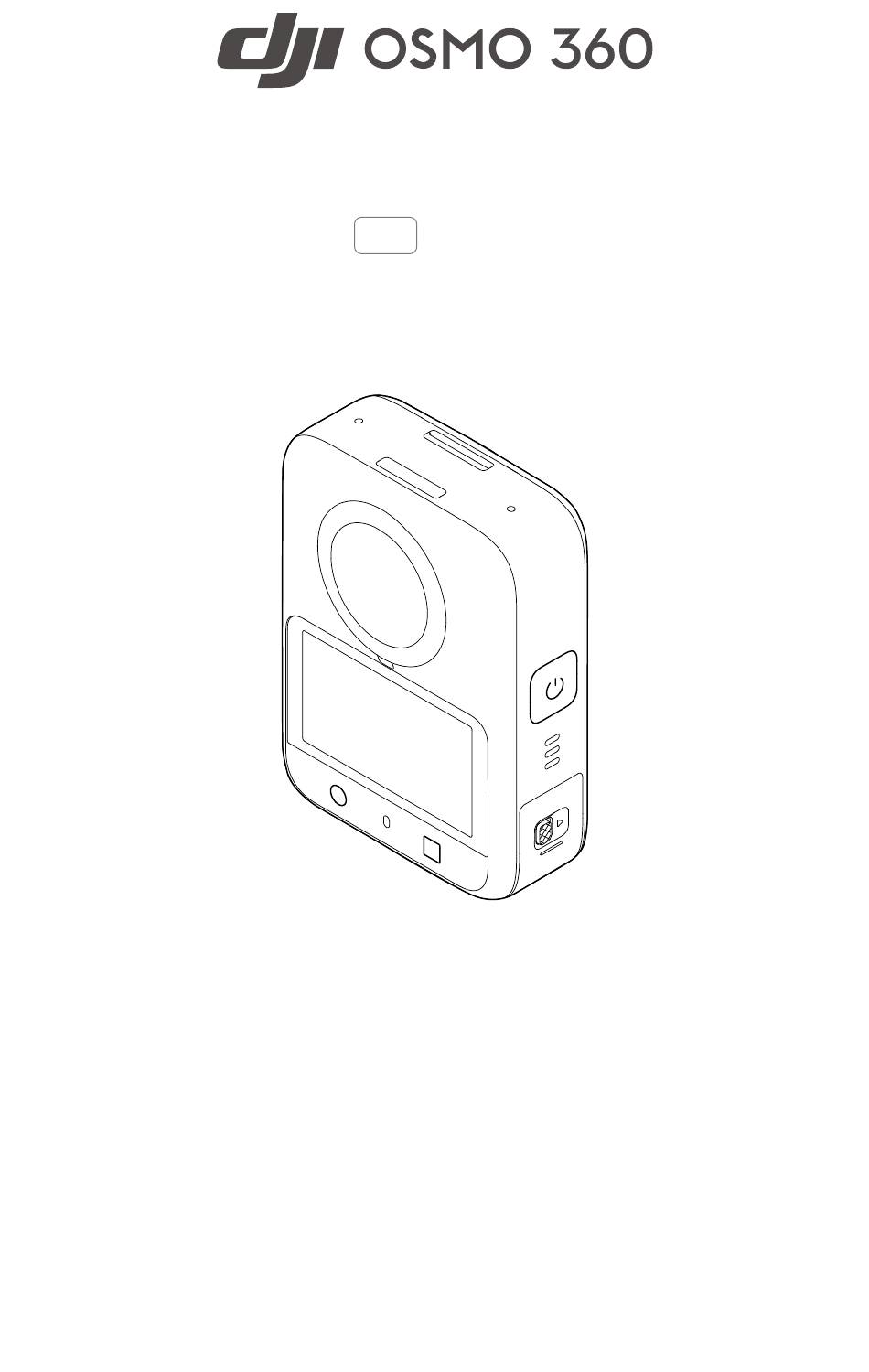

  • Page 1 User Manual v1.0 2025.07...
  • Page 2 This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized by DJI, you are not eligible to use or allow others to use the document or any part of the document by reproducing, transferring or selling the document. Only refer to this document and the content thereof as instructions to operate DJI products.
  • Page 3 Osmo 360 User Manual Using this Manual Legend Reference Important Hints and Tips Read Before Use ™ provides you with tutorial videos and the following documents: 1. Safety Guidelines 2. Quick Start Guide 3. User Manual It is recommended to watch all the tutorial videos and read the Safety Guidelines before using for the first time.
  • Page 4 Osmo 360 User Manual Contents Using this Manual Legend Read Before Use Video Tutorials Product Profile Osmo 360 Battery Case Adapter Mount and Selfie Stick Preparation Attaching the Battery and Charging Activation Firmware Update Using the Product Button Features Operating the Touchscreen...
  • Page 5 Osmo 360 User Manual Product Profile The following accessories are included in the Osmo 360 Adventure Combo. They can also be purchased separately. Visit the official store for a full list of compatible accessories. • Osmo Action Multifunctional Battery Case 2 (hereinafter referred to as "Battery Case") •...
  • Page 6 Osmo 360 User Manual 1.1 Osmo 360 1. Microphone 2. Lens 3. Touchscreen 4. Shutter/Record Button 5. Function Button 6. USB-C Port 7. USB-C Port Cover Release Button 8. Speaker 9. Power/Quick Switch Button 10. Status LED Blinking Pattern Description...
  • Page 7 Osmo 360 User Manual 1.2 Battery Case 1. USB-C Port 2. Status Button Press once to check the battery level. 3. Status LEDs Battery Level Solid red 0-20% Solid yellow 20%-80% Solid green 80%-100% Charging and Discharging Status The battery in the corresponding battery port is fully charged or discharged.
  • Page 8 Osmo 360 User Manual • When charging the batteries, it is recommended to use a USB-C charger that supports PD (Power Delivery) or PPS (Programmable Power Supply). The battery with the highest power level will be charged first. • When charging external devices, the battery with the lowest power level will be discharged first.
  • Page 9 Osmo 360 User Manual 90° 90° © 2025 DJI All Rights Reserved.
  • Page 10 It is recommended to use a USB-C charger that supports PD or PPS. 2.2 Activation Make sure to activate the camera using DJI Mimo before first use. 1. Press and hold the power button to power on the camera. ©...
  • Page 11 2. Scan the QR code on the screen to download the DJI Mimo app. 3. Enable Wi-Fi and Bluetooth on the mobile device. 4. Launch DJI Mimo on the mobile device, tap the camera icon to connect to the camera, and then follow the instructions to activate the camera.
  • Page 12 Osmo 360 User Manual Using the Product 3.1 Button Features Power/Quick Switch Button Press and hold: Power on/off. In the liveview: Press once to enter the Quick Switch page. Press again to cycle through preset shooting modes. To modify the presets, tap in the upper right corner of the Quick Switch page.
  • Page 13 Osmo 360 User Manual 1. Storage Capacity/Remaining Recording Time 2. Playback During playback, swipe left from the right edge of the screen to return to the liveview. 3. Shooting Mode 4. Shooting Specifications 5. Battery Level 6. Image/Audio Parameters 7. View/Lens Switch Setting the Shooting Mode 1.
  • Page 14 Osmo 360 User Manual Tap the selected shooting mode or swipe up from the bottom of the screen to return to the liveview. View/Lens Switch In 360° Mode Slide in the center of the screen to adjust the view. Tap to recenter the view.
  • Page 15 Osmo 360 User Manual Pre-Rec: When enabled, the camera will pre-record footage within the ◆ set time duration. Once the Shutter/Record button is pressed, the camera will save the latest pre-recorded footage before pressing the Shutter/Record button and keep recording, then save the footage as a whole video.
  • Page 16 Follow the on-screen instructions for linking. Once linked, you can use the transmitter to control the camera to start recording, with the audio being captured by the transmitter. • Visit the DJI website and refer to the user manual of the mic product for more information. • Enter the control center, tap , and enable Built-in Mic Audio Backup.
  • Page 17 8. Gesture Control When enabled, you can use hand gestures to take photos or start/stop recording. 9. Lens Protection Mode When the camera is used with Osmo 360 Transparent Lens Protectors (sold separately), tap Transparent Lens Protectors before shooting. 10. Voice Control Enable Voice Control to control the camera with voice commands.
  • Page 18 Osmo 360 User Manual 3.3 Using a Selfie Stick Lens Mode Selfie Stick Position Effect 180° 360° The selfie stick is invisible (Panoramic mode) in the frame. The selfie stick remains in the frame. The self- Single Lens ie image is captured at the optimal angle and in sharp focus.
  • Page 19 1. Enable Wi-Fi and Bluetooth on the mobile device. Launch DJI Mimo and tap the camera icon on the home screen. 2. Connect the camera to DJI Mimo, tap the Playback icon to preview photos and videos. Tap the icon to download photos and videos.
  • Page 20 Osmo 360 User Manual Battery 1. DO NOT use non-official batteries. DJI takes no responsibility for any damage caused by non-official batteries. 2. Discharge and charge the battery completely once every three months to keep it in good condition. 3. When the battery voltage is too low, the battery will enter low-power state. Charging the battery will exit low-power mode.
  • Page 21 Osmo 360 User Manual 3. Rinse the camera with tap water after using it underwater. Allow it to dry naturally before using again. Wipe the surface of the camera with a soft and dry cloth. 4. DO NOT dry the camera with hot air using a hair dryer, otherwise the microphone membrane and the built-in breathable membrane will rupture, and the camera will no longer be waterproof.
  • Page 22 Osmo 360 User Manual Specifications Visit the following website for specifications. https://www.dji.com/360/specs © 2025 DJI All Rights Reserved.
  • Page 23 This content is subject to change without notice. Download the latest version from https://www.dji.com/360/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI and OSMO are trademarks of DJI. Copyright © 2025 DJI All Rights Reserved.
