dji OSMO+ User Manual

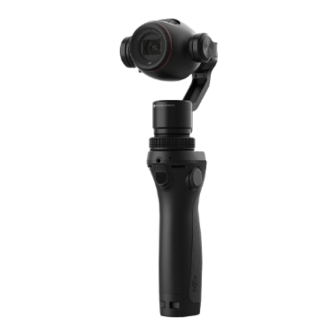

Professional handheld gimbal camera
Hide thumbs Also See for OSMO+:
Table of Contents

Advertisement

Quick Links

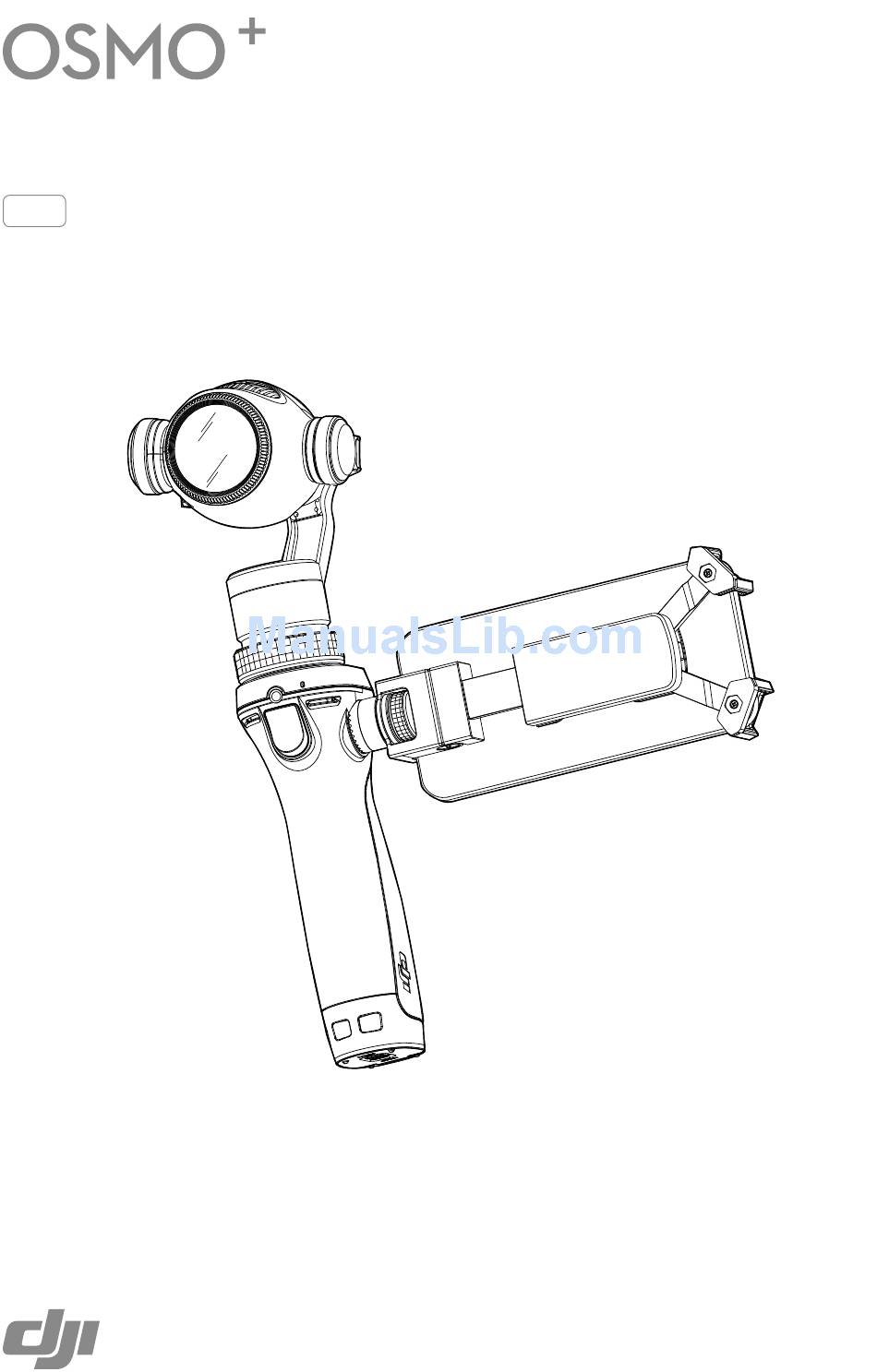

User Manual
V1.0
2016.09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSMO+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji OSMO+

Summary of Contents for dji OSMO+

  • Page 1 User Manual V1.0 2016.09...

  • Page 2: Using This Manual

    Legend Important Tips Install the DJI GO App Search for ‘DJI GO’ on the App Store or Google Play and install the app on your mobile device. DJI GO supports iOS 8.0 (or later) or Android 4.3 (or later). ©...

  • Page 3: Table Of Contents

    Contents Using this Manual Legend Install the DJI GO App Introduction Getting Started Intelligent Battery Mounting your Mobile Device Removing the Mobile Device Holder Optional Accessories Unlocking the Gimbal Locking the Gimbal Using the Osmo+ Controls and Operations Operation Modes DJI GO App Download Connecting to the DJI GO App Key Pages Upgrading the Firmware Using the DJI GO App Using a Micro SD Card Maintenance Specifications Troubleshooting © 2016 DJI. All Rights Reserved.

  • Page 4: Introduction

    The camera tilts across a 170-degree range and has a pan rotation of 640 degrees. The DJI Rosette Mount on the side of the handle allows your mobile device to be mounted as a live HD view finder, and supports external devices including vehicle mounts and tripods for spe- cialized filmmaking applications.

  • Page 5: Getting Started

    Cuts the power supply if a short circuit is detected. Stops charging if the core temperature falls below 41°F (5°C) Temperature Control or exceeds 104°F (40°C). Battery Level Display The battery level is displayed in the DJI GO app. © 2016 DJI All Rights Reserved.
  • Page 6 Output 12.6 V/13.2 V; 0.8 A Only charge the battery with the provided battery charger. DJI takes no responsibility for accidents caused by the use of non-DJI battery chargers. Remove the battery from the charger unless it is charging to prevent battery discharging.

  • Page 7: Mounting Your Mobile Device

    3. Place one end of your mobile device into the arms. 4. Extend the arms so that your entire mobile device is seated in the mobile device holder. 5. Rotate your mobile device to the desired position. © 2016 DJI All Rights Reserved.

  • Page 8: Removing The Mobile Device Holder

    Removing the Mobile Device Holder 1. The mobile device holder can be removed by rotating the knob counterclockwise. 2. It is recommended to install the cap for the DJI Rosette Mount when it is not in use. Optional Accessories DJI provides various optional accessories for the Osmo+.

  • Page 9: Unlocking The Gimbal

    Straight Extension Arm Used to attach up to three other mounts at the same time. Visit the official DJI Store (http://store.dji.com) to learn more. Unlocking the Gimbal To protect the gimbal, the motor axes are locked in place. To unlock the gimbal: 1.

  • Page 10: Locking The Gimbal

    Pulling the power switch again will cause the Osmo+ to go in or out of sleep mode. To turn off the Osmo+, pull the power switch down and hold for 1.5 seconds. Power Switch Hold the Osmo+ steady and upright while it is starting up. © 2016 DJI All Rights Reserved.
  • Page 11 Vertical movement tilts the camera. Horizontal movement pans the camera. Joystick Control Direction can be changed in the DJI GO app. [3] Shutter Button Press this button to take photos based on your settings in the DJI GO app. Hold down shutter button to capture continuous photo. [4] Record Button Press this button once to start recording video, and again to stop recording.
  • Page 12 Microphone Mode. [8] External Microphone Input Connect the provided Flexi Microphone to record audio. [9] Built-in Microphone Records audio for general use. You can turn off the microphone in the DJI GO app. Trigger © 2016 DJI All Rights Reserved.

  • Page 13: Operation Modes

    Wi-Fi is off when the system status LED blinks twice. Repeat to turn on Wi-Fi. Operation Modes Upright Mode Upright Mode can be used without any user input. In this mode, quickly tap the trigger twice to center the camera. © 2016 DJI All Rights Reserved.
  • Page 14 Rotate the Osmo+ forward 90 degrees to go from Upright Mode to Flashlight Mode. In Flashlight Mode, pushing the joystick up and down will tilt the camera, pushing the joystick left and right will have no effect. © 2016 DJI All Rights Reserved.

  • Page 15: Dji Go App

    Rotate the Osmo+ 90 degrees to the left or right to go from Upright Mode to Portrait Mode. DJI GO App Watch a live HD video feed on your mobile screen through the DJI GO app. The Osmo+ is complemented by the DJI GO app, which provides shooting modes such as motion timelapse and 9-shot panorama.

  • Page 16: Key Pages

    3. If you are using the Osmo+ for the first time, follow the on-screen instructions to activate it. You will need to log in to your DJI account through an Internet connection. Re-connect to the Osmo+ Wi-Fi network after the activation is complete.
  • Page 17 2) If the timelapse interval is 2 seconds or more, the camera will apply digital stabilization to the live HD video on your mobile device. : Video Modes Auto: Normal video based on your camera settings. Slow Motion: Recorded at 1080p and 100fps. © 2016 DJI All Rights Reserved.
  • Page 18 Alternatively, create a custom profile by selecting C1 or C2 and configuring the settings below. • SmoothTrack Settings The pan and tilt axes can be adjusted separately. Speed: Determines how fast the gimbal will catch up with the translated pan/tilt handle movement. © 2016 DJI All Rights Reserved.
  • Page 19 Lock Mode. to enter Selfie Mode. Tilt Axis Lock: Locks the tilt axis at the current angle when enabled. Zoom Adjusted SmoothTrack: After enabling this function, SmoothTrack speed will auto © 2016 DJI All Rights Reserved.
  • Page 20 Edit your photos by adjusting the parameters, editing the photo size, adding watermarks and applying filters. 3. Skypixel View and share photos and videos to the Skypixel network. 4. Me If you already have a DJI account, you will be able to participate in forum discussions. © 2016 DJI All Rights Reserved.

  • Page 21: Upgrading The Firmware

    Osmo+ will emit a fast beeping sound, in which case you should reattempt the upgrade. Using the DJI GO App Connect the Osmo+ to your mobile device and then launch the DJI GO app. You will be reminded if a new firmware upgrade is available. To start upgrading, connect your mobile device to the internet and follow the on-screen instructions.

  • Page 22: Maintenance

    Output Power (with camera) Angular Vibration Range ±0.02° Mount Detachable Tilt: -35° to +135° Controllable Range Pan: ±320°; Roll: ±30° Tilt: -50° to +140° Mechanical Range Pan: ±330°; Roll: -50° to +90° Max Controllable Speed 120°/s © 2016 DJI. All Rights Reserved.
  • Page 23 JPEG, DNG ( RAW) Photo Formats MP4/MOV (MPEG-4 AVC/H.264) Video Formats Micro SD Supported SD Cards Max. Capacity: 64 GB Class 10 or UHS-1 32° to 104° F (0° to 40° C ) Operating Temperature © 2016 DJI. All Rights Reserved.
  • Page 24 Output 12.6/13.2 V, 0.8 A Flexi Microphone Sensitivity -32 ± 3 dB (0 dB =1 V/Pa) Frequency Response 100 - 10000 Hz Signal-to-Noise Ratio 60 dBA Pin Diameter 3.5 mm Length 88 mm Weight © 2016 DJI. All Rights Reserved.

  • Page 25: Troubleshooting

    ‘S’ mode (Shutter Priority) or ‘M’ (Manual Mode) and adjust the shutter speed to the desired value. Make sure you hold the camera still for the entire shutter duration. 6. Can I close the DJI GO app or disconnect my mobile device while the Osmo+ is recording video? Yes.

  • Page 26: 2016 Dji. All Rights Reserved

    This content is subject to change. Download the latest version from http://www.dji.com/product/osmo-plus If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. OSMO is a trademark of DJI. Copyright © 2016 DJI All Rights Reserved.
