Wired presence sensor – indoor
HmIPW-SPI
Installation and Operating Manual
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the HmIPW-SPI and is the answer not in the manual?

Questions and answers

Summary of Contents for Homematic IP HmIPW-SPI

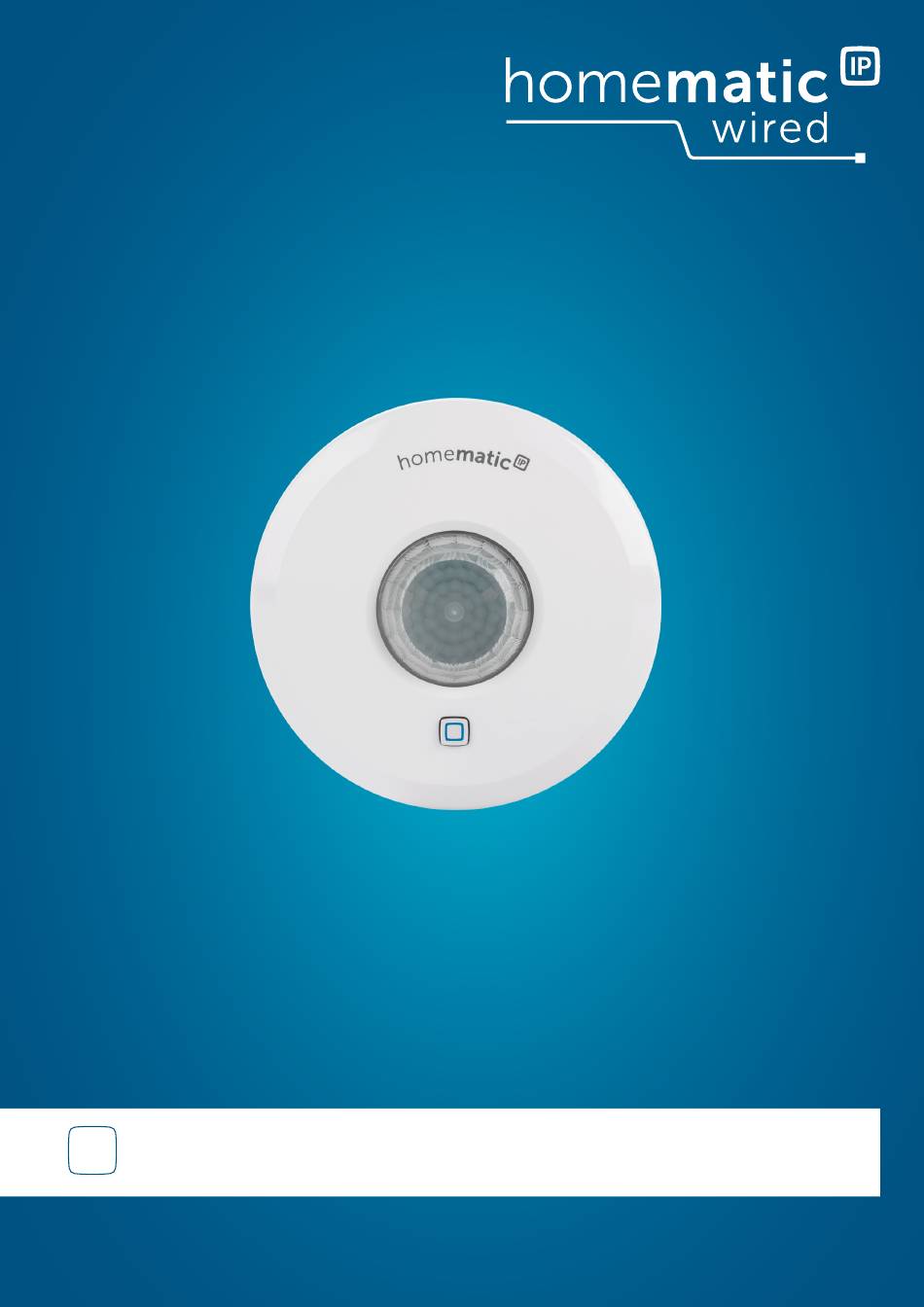

  • Page 1 Wired presence sensor – indoor HmIPW-SPI Installation and Operating Manual...
  • Page 2 Table of contents Table of contents 1 Information about this manual................. 3 2 Hazard information....................3 3 General system information................5 4 Function and device overview................5 5 Detection range....................6 6 Start-up........................6 6.1 Installation instructions....................6 6.2 Installation in a device box..................8 6.3 Installation on the ceiling..................
  • Page 3 If you The device is intended for operation have any doubts, have the device on the Homematic IP Wired Bus on- checked by a qualified expert. ly. The Homematic IP Wired Bus For safety and licensing reasons is a SELV power circuit.
  • Page 4 Hazard information Observe the permissible cable types and conductor cross sections when connecting to the device terminals. The device is suitable for use only in residential environments.
  • Page 5 The presence sensor automat- ically compensates temperature influ- This device forms part of the ences in order to ensure precise motion Homematic IP Smart Home system and detection at all times. communicates via the Homematic IP protocol. Central Control Unit. Op-...
  • Page 6 100%. wide close wide 6 Start-up range range range 1,75 5,25 To commission the device, you must first commission a Figure 7 Homematic IP Wired Access Point (HmIPW-DRAP). Installation instructions Read this section completely before starting installation.
  • Page 7 Start-up personal liability for personal injury and Make a note of the device number property damage. (SGTIN) and the installation location of the device before installation to *Specialist knowledge required for in- make it easier to identify the device stallation: later.
  • Page 8 AWG22 (= 0.34 mm²) or 4 x 2 x AWG22 (= 0.34 mm²), shielded, TP Figure 8 • Switch the Homematic IP Wired Bus The shield (continuity wire) must on to activate pairing mode of the be connected to “–” (=GND) at the device.
  • Page 9 40 mm Figure 9 Figure 11 For stone/concrete walls, use a • Connect the Homematic IP Wired 5 mm drill bit for the plugs. For Bus to the bus port. Press the or- wooden walls, use a 1.5 mm drill...
  • Page 10 Start-up The bus ports are connected in par- • Switch the Homematic IP Wired Bus allel. However, the incoming or out- on to activate pairing mode of the going bus cable can be connected device. to either of the two ports.
  • Page 11 Homematic IP Wired devices with an (existing) Homematic IP Central Control Unit. To do this, connect the Homematic IP Wired Access Point to the (existing) Homematic IP Central Control Unit as described in the operating manual. Then pro- ceed as described above to connect Figure 16 the device.
  • Page 12 Troubleshooting – 4 minutes • Receiver cannot be reached. – 8 minutes • Receiver is unable to execute the command (load failure, mechanical • Buffer detected movements: Spec- blockage, etc.) or ifies whether or not the sensor is • Receiver is faulty. still active during detected motion to send further motions again.
  • Page 13 Troubleshooting Flash codes Flash code Meaning Solution 1x orange and 1x green Test display You can continue once light (after switching on the test display has the Wired Bus) stopped. Short orange flashes Pairing mode active Enter the last four dig- (every 10 s) its of the device number (SGTIN) in your app, or...
  • Page 14 Restoring factory settings 9 Restoring factory settings 11 Disposal The factory settings of the device This symbol means that the device can be restored. If the device is must not be disposed of as house- paired with a Central Control Unit, hold waste, general waste, or in a the configurations are automatically yellow bin or a yellow sack.
  • Page 15 Technical specifications 12 Technical specifications Short description HmIPW-SPI Supply voltage 24 VDC, ±5 %, SELV Protection class Degree of protection IP20 Ambient temperature -5 - +40°C Weight 92 g Dimensions (ø x H) 100 x 45 mm Current consumption 50 mA max.
  • Page 16 Free download of the Homematic IP app! Bevollmächtigter des Herstellers: Manufacturer’s authorised representative: eQ-3 AG Maiburger Straße 29 26789 Leer / GERMANY www.eQ-3.de...
