Summary of Contents for Orion 4KDHDE Series

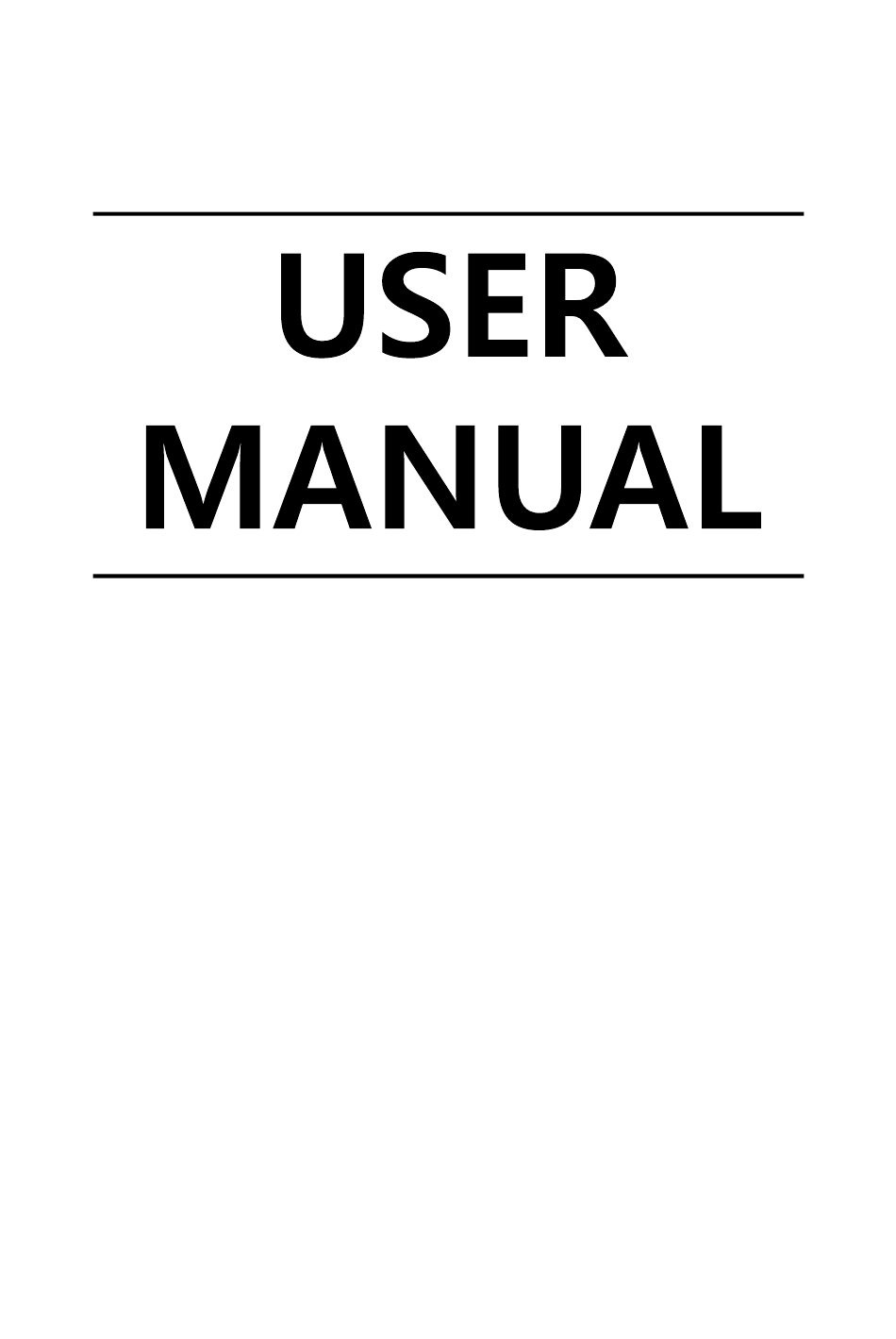

- Page 1 4K Ultra High Definition Professional Monitor 4KDHDE Series All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
-
Page 2: Warranty
Warranty Orion Images Corporation (“OIC”) warrants to the first purchaser that its LCD Display monitors are free from defects in materials and workmanship under normal use. The warranty is three years beginning on the date of invoice, as further described in the following text. -
Page 3: Table Of Contents
[ USER MANUAL ] <TABLE OF CONTENTS> SAFETY INSTRUCTION FCC RF INTERFERENCE STATEMENT INSTALLATION OSD MENU SPECIFICATION TROUBLESHOOTING... -
Page 4: Safety Instruction
[ USER MANUAL ] 1. SAFETY INSTRUCTION • Follow this safety instruction to use the monitor properly and prevent the damage. * This safety instruction has “Warning” & “Caution” as below Warning - If the user does not follow this instruction, it may cause the serious damage to the user. - Page 5 [ USER MANUAL ] Warning For cleaning do not use liquid cleaners. Do not install this monitor on the outside Never touch the power plug with wet- and near water. It may cause damage to hands. the product, electric shock and fire. When lightning and thundering, unplug Unplug this product from the wall outlet, the monitor from the wall outlet and...
- Page 6 [ USER MANUAL ] Cautions Place this product on a stable place. Install this monitor some distance If not, it may fall, causing serious from the wall and do not install unless damages to the monitor and people. proper ventilation is provided. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface.
- Page 7 [ USER MANUAL ] Cautions Install this monitor about 50cm far from Do not press the LCD panel with hands or the eyes and an angle of 0~15 degrees the sharpened material hardly. below eyes. Too close installation may cause having weak sight. For cleaning, unplug the monitor from the Do not use the chemical liquid for cleaning.
-
Page 8: Fcc Rf Interference Statement
[ USER MANUAL ] 2. FCC RF INTERFERENCE STATEMENT NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 9: Installation
[ USER MANUAL ] 3. INSTALLATION 3.1 UNPACKING Remove the package cover and place the product on a flat and secure surface or in the installation location. This equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the shipper immediately. - Page 10 [ USER MANUAL ] 3.3 HOW TO INSTALL 1) KEY BUTTON ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ OSD KEY FUNCTION On/Off the OSD menu or exit the source selection menu Move the cursor the choose on the OSD menu Select the source on the INPUT menu Move up the cursor to choose on the OSD menu Return to normal mode from power saving mode...
- Page 11 [ USER MANUAL ] 2) CONNECTION . 43”/55”/65” ① ② ③ ④ ⑤ ⑥ ⑦ ① HDMI2 IN ② HDMI1 IN ③ DP IN : DP signal Input ④ VGA IN ⑤ Audio : Audio Line Input ⑥ USB : Only FW Update Input ⑦...
-
Page 12: Remote Controller
[ USER MANUAL ] 3.4 REMOTE CONTROLLER POWER Power On or Off MUTE Turn on or off the speaker VIDEO1/CVBS1 Not functional VIDEO2/CVBS2 Not functional S-VIDEO Not functional Select VGA signal AUTO Auto adjustment of VGA source COLOR TEMP Select color temperature of screen Not functional HDMI Select HDMI 1 port... -
Page 13: Osd Menu
[ USER MANUAL ] 4. OSD MENU 4.1 Main OSD Menu • Press a menu button “MENU/EXIT” on a KEYPAD or a remote controller to display this menu on the screen. When user presses the menu key, the first Input Source menu as below is displayed. •... -
Page 14: Input Source Menu
[ USER MANUAL ] 4.3 Input Source MENU Input Source Select Input source Default Select VGA input DP (DisplayPort) Select DP input HDMI1 (2.0) Select HDMI 1 input ✔ HDMI2 (1.4) Select HDMI 2 input Press “MENU/EXIT” key • And Press " ▶ “ or “MENU/EXIT” key to enter an input source of sub group. •... -
Page 15: Brightness/Contrast Menu
[ USER MANUAL ] 4.4 Brightness/Contrast MENU Function Adjustment range Default Brightness Adjust 0 ~ 100 Contrast Adjust 0 ~ 100 Press “MENU/EXIT” key • Move a cursor by "▲, ▼" key to select “Brightness/Contrast” function. • Press " ▶ “ or “ENTER” key to select •... -
Page 16: Color Setting Menu
[ USER MANUAL ] 4.5 Color Setting MENU Function Level range/Mode Default Gamma 1.8/2.0/2.2/2.4/2.6 Picture Mode Standard/Photo/Movie/Game/FPS/RTS Standard Color Temperature Warm/Normal/Cool/User Normal Adjust 0 ~ 100 Adjust 0 ~ 100 Saturation Press “MENU/EXIT” key • Move a cursor by "▲, ▼" key to select “Color Setting” function •... -
Page 17: Picture Quality Setting Menu
[ USER MANUAL ] 4.6 Picture Quality Setting MENU Function Level range Default Bypass On/Off Sharpness 0 ~ 100 Response Time Off/High/Middle/Low Noise Reduction Off/High/Middle/Low On/Off Dynamic Luminous Control Press “MENU/EXIT” key • Move a cursor by "▲, ▼" key to select “Picture Quality Setting” function. •... -
Page 18: Display Menu
[ USER MANUAL ] 4.8 Display MENU Function Mode Default Aspect Ratio Wide Screen/4:3/1:1/Auto Wide Screen H-Position Adjustment of horizontal position in VGA input V-Position Adjustment of vertical position in VGA input Clock Adjustment of screen width in VGA input Phase Fine adjustment of screen width in VGA input Automatic adjustment of screen position and width... -
Page 19: Audio Menu
[ USER MANUAL ] 4.9 Audio MENU Function Mode Default Mute On/Off Volume Adjust 0 ~ 100 Press “MENU/EXIT” key • Move a cursor by "▲, ▼" key to select Audio function. • Press " ▶ “ or “ENTER” key to select •... -
Page 20: Multi-Window Menu
[ USER MANUAL ] 4.10 Multi-Window MENU Function Level range Default Multi-Window Off/PIP Mode/PBP 2Win Sub Win2 Input VGA/DP/HDMI 1/HDMI 2 PIP Size Small/Medium/Large Medium PIP Position TopRight/TopLeft/BottomRight/BottomLeft TopRight SWAP • Press “MENU/EXIT” key Move a cursor by "▲, ▼" key to select “Multi-Window” function. •... - Page 21 [ USER MANUAL ] 4.11 OSD MENU Function Level range Default Multi-Window English/한국어/Español/Français OSD H-Position Adjust 0 ~ 100 OSD V-Position Adjust 0 ~ 100 OSD Transparency Adjust 0 ~ 100 Adjust 0 ~ 100 OSD Time Out Normal/90/180/270 Normal OSD Rotation Press “MENU/EXIT”...
-
Page 22: Other Menu
[ USER MANUAL ] 4.12 Other MENU Function Adjustment range Default DP version DP 1.1/DP 1.2 in DP port DP 1.2 USB Update FW Idle/Writing Idle Reset • Press “MENU/EXIT” key Move a cursor by "▲, ▼" key to select “Other” function. •... -
Page 23: Specification
[ USER MANUAL ] 5. SPECIFICATION General Specifications General Features 4K43DHDE 4K55DHDE 4K65DHDE 54.64 64.53 Screen Size (inch) 42.51 3840 x 2160 3840 x 2160 Resolution 3840 x 2160 0.315*0.315 mm 0.372*0.372 mm Pixel Pitch (mm) 0.2451 x 0.2451 500 cd/m² 500 cd/m²... - Page 24 [ USER MANUAL ] 5.2 Timing Mode Table Vertical MODE Resolution Input Standards Frequency(Hz) EDTV 480p 720x480 59.94 EDTV 576p 720x576 50.00 HDMI/DP HDTV720p 1280x720 50/60 HDTV1080i 1920x1080 50/60 HDMI/DP EIA-861B HDTV1080p 1920x1080 24/25/30/50/60 HDMI/DP UHDTV2160p 3840x2160 24/25/30/50/60 HDMI UHDTV2160p 3840x2160 24/25/30 640x480...
-
Page 25: Troubleshooting
[ USER MANUAL ] 6. TROUBLESHOOTING When the following troubles are occurred, follow the trouble shooting. Before contacting a service center. Troubleshooting Troubleshooting Tip 1. Make sure if the power supply is connected property The screen doesn’t show up 2. Turn on the power. 3. - Page 26 ORION IMAGES Corp.(USA Office) OIC KOREA Co., Ltd.(Headquater/Factory) 5F, OIC Korea B/D, 12, Annam-Ro 369beon-Gil, 17162 Murphy Ave, Unit B Irvine, CA 92614, USA Tel. (714)766-6300 / Fax. (714)766-6310 Bupyeong-Gu, Incheon, 21312, Korea Email: sales@oriominages.com Tel. +82-32-719-7590 / Fax. +82-32-719-7591 http://www.orionimages.com...
