A revolutionary MPDP
Infinitely Expandable MPDP
ORION PDP CO.,LTD.
www.oriondisplay.net
Address: 257, Gongdan-dong, Gumi-si, Gyeongsangbuk-do, Korea
Tel : +82-2-6678-8523,
Fax: +82-2-6678-8599
A revolutionary MPDP
Infinitely Expandable MPDP
User's Manual
MIS-4220
Thank you for purchasing our MPDP.
Please read through this user's manual for safety before installing this product.
This product is manufactured for Multi Plasma display model only.
Advertisement
Table of Contents
Related Manuals for Orion MIS-4220
Summary of Contents for Orion MIS-4220
- Page 1 A revolutionary MPDP Infinitely Expandable MPDP A revolutionary MPDP User’s Manual Infinitely Expandable MPDP MIS-4220 ORION PDP CO.,LTD. www.oriondisplay.net Address: 257, Gongdan-dong, Gumi-si, Gyeongsangbuk-do, Korea Tel : +82-2-6678-8523, Fax: +82-2-6678-8599 Thank you for purchasing our MPDP. Please read through this user's manual for safety before installing this product.
-
Page 2: Table Of Contents
5.8. Slide Control ......................31 5.9. Screen Control ......................33 DVI-D Cable Power Cable RS232 Cable Bolt (4 pcs) 5.10. PC Tracking ......................34 5.11. Orion PDP Home Page logon and Version information ........35 6.MSCSProtocol .......................36 7.Othertips ........................44 Optional Accessories 7.1. Before calling for service ..................44 7.2. -
Page 3: Please Keep Following Instruction For Panel Protection Without Exception
MIS-4220 Infinitely Expandable ※ Please keep following ※Handle with Caution. instruction for panel protection - Shock/Impact on the set's sides will result in internal circuit damages. without exception. - The edge/bottom of the panel are fragile. Warning Warning - This product can be damaged even with minor Use shock-absorbing pads or rugs for laying impact for its nature. - Page 4 MIS-4220 Infinitely Expandable Open Structure How to carry MPDP Pleaseseepage10forunpackandhandleassembly. UnlikeconsumerPDPproduct,thepanelofMPDPisexposedwithout ItalwaysneedstwopersonstocarryorinstallMPDP. anyprotectivechassis. WhenyoucarryMPDPwithupstraightmanner,pleaseholdhandlesontheback Itneedsextracautiontocarryorinstalltopreventanyimpact. andbottompartofthepaneltogether. Pleasebecarefulnottotouchthebottompartofthepanelwhenyouputdownthe panel. MASTER FRAME PANEL Please do not touch the panel with your hand. WhenyoucarryMPDPwithflatbedmanner,pleaseholdhandlesonthebackand lowerpartoftheback. Pleasebecarefulnottotouchthebottompartofthepanelwhenyouputdownthe panel. It is very fragile.
-
Page 5: SafetyPrecautions
MIS-4220 Infinitely Expandable 1. Safety Precautions • If it operates abnormally, stop using it • Do not place any liquid-containing • Do not pull out or hang down the • Do not lean against the product or keep • Do not put any foreign material into •... -
Page 6: HowToInstall
MIS-4220 Infinitely Expandable 2. How to install Install this set only at a location where adequate ventilation is available. How to assemble handles How to move MPDP 1.2peopleholdeachhandleonproduct'sbackside. 1.ProductispackedinaboxasshowninFigure1. 2.PleasecarefullyremovethePackingBagwithaknifeorapairofscissors. ※ Please check front and rear side before you cut the bag to prevent any damages Panel protection on panel or set. - Page 7 MIS-4220 Infinitely Expandable Stand Unit (Option) Wall Mounting Unit (Option) Please do not install our product at following locations to protect the product and Please check the stability of wall. prevent possible malfunction. If the wall is not strong enough, reinforce the wall before installation.
-
Page 8: GuidanceForUsers
MIS-4220 Infinitely Expandable 3. guidance for Users input/Output Terminals Set iD Switch Setting Example of ID Switch setting - You can set ID with 2 rotary switches as shown in the following figure. [PDP ID 01] 10 digit single digit... -
Page 9: HowToConnectCables
MIS-4220 Infinitely Expandable 4. How to Connect Cables 4.1. Connection of one set MPDP PC & DVi Connection MPDP and PC should be connected; a Com Port in a PC and RS-232C IN port in a MPDP is connected with supplied RS-232C cable. -
Page 10: Vcr Connection
MIS-4220 Infinitely Expandable VCr Connection [PDP ID 1] RS-232C (Maximum 15m) ID switch must be set as ID 1 for one set use. VIDEO RS-232C PC(MSCS) to control MPDP S-VIDEO COMPONENT Video connection (Maximum 5m) S-Video connection (Maximum 5m) ID SELECT... -
Page 11: Dvd Player & Dtv Set Top Box Connection
MIS-4220 Infinitely Expandable DVD Player & DTV Set top box connection In case input source is DVD, select DVD/SD in MSCS main screen. In case input source is DTV, select HD in MSCS main screen. [PDP ID 1] RS-232C (Maximum 15m) ID switch must be set as ID 1 for one set use. -
Page 12: Connection Of Multi-Screen Mpdp
MIS-4220 Infinitely Expandable 4.2. Connection of Multi-screen MPDP Recommended maximum set connection for Multi setting is shown in table below. If you need to connect more than described in the table, you have to use distributors. Image quality can be affected by cable or signal quality. -
Page 13: Connection Of Rs-232C Cable
MIS-4220 Infinitely Expandable 4.3. Connection of rS-232C Cable 4.4. Connection of 3 x 3 MPDP Maximum use of RS-232 with Daisy Chain connection is or less. If you need additional connection, use RS-232 distributor. RS-232C DVI-D RS-232C DVI-D RS-232C DVI-D... -
Page 14: Id Setting Of X X Y Mpdp
MIS-4220 Infinitely Expandable 5. Setting and operation of MSCS 4.5. iD setting of X x Y MPDP MSCS is an application program needed to control MPDP. Activate MSCS setup file. Directory is created in C: \Program file \MSCS(v4.0) and shortcut is made Identity number (ID) indicates the location of each MPDP. -
Page 15: Setting 'Com Port
MIS-4220 Infinitely Expandable 5.3. Setting 'Multi-Screen' Configuration 5.1. Setting 'Com Port' Com Port connects or disconnects the communication between PC and MPDP. Connect MPDP to PC Com Port via RS-232C cable. Screen Configuration Set SelectadesirableXnumberandYnumber X numberrepresentsthenumberofMPDPcolumnsandYnumberrepresentsthenumberof MPDProws. TherangeofXandYis1to15. -
Page 16: Mscs Instruction

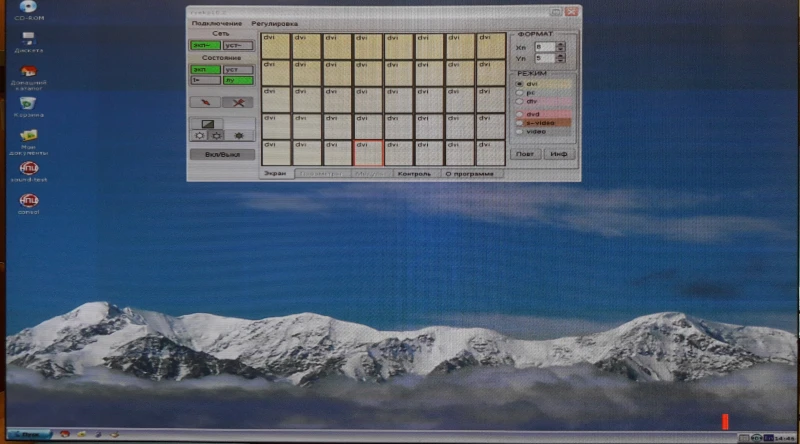

MIS-4220 Infinitely Expandable 5.4. MSCS instruction 5.6. Configuration of various modes You can configure various input sources as you want. Check "ALL PDP" to send data to all connected MPDP regardless of ID. SelectadesirableinputSourcein"SelectInput" Ex)Select"DVI"in"SelectInput" MPDP Control - Power On/Off Clickdesirablescreenwithleftbuttonofmousethenthescreenwould In order to control power of specific MPDP, use "Power On/Off"... -
Page 17: Setting Multi Screens At A Time
MIS-4220 Infinitely Expandable 5.7. Setting multi screens at a time 5.8. Slide Control You can select multi screens at a time as you want. MPDP configuration that users set is displaying repeatedly. To use Slide Control, go to MSCS Menu → Control → Slide Control or press "Ctrl+S" using Keyboard. -
Page 18: Screen Control
MIS-4220 Infinitely Expandable 5.9. Screen Control Register values related to display of MPDP can be changed. Savevariousscreenconfigurationsinthesameway. Click "Picture Control" of "Control" menu bar or enter "Ctrl+P" in order to run "Picture Control" window. Click"SlideStart"todisplaysavedscreenconfigurations. -Savedscreenconfigurationsaredisplayingforpresettime. Check"Repeat"todisplaysavedconfigurationrepeatedly. Picture Control In order to control display values, input values directly in "Edit Box" and press Enter key. -
Page 19: Pc Tracking
5.11. Orion PDP Home Page logon and Version information Alignment adjustment is available when input source is PC. In order to move to Orion PDP's website, go to "Help" of menu bar → "OrionDisplay HomePage". Tracking Auto/Manual Orion PDP Home Page Logon Go to "Control"... -
Page 20: Mscs Protocol
MIS-4220 Infinitely Expandable 6. MSCS Protocol Protocol Form 2.2 PDP ID Auto Power Command Test Pattern Command ƒ ƒ ASCII R(0x52) M(0x4D) ASCII R(0x52) 5(0x35) Auto Power On Test Pattern Red Format Send To PDP ƒ 0x35 0x32 0x34 0x3D ƒ... - Page 21 MIS-4220 Infinitely Expandable Position Command Factory Data Command 2.3.4 WhiteBalance Control White Balance Command ƒ ƒ ƒ ASCII P(0x50) u(0x75) ASCII F(0x46) 2(0x32) ASCII G(0x47) A(0x41) Graphic User Mode Command White Balance ƒ Position Up Factory Data Save Gain Red...
- Page 22 MIS-4220 Infinitely Expandable Video Data Command Graphic&Video Data White Balance Data Ex) Selecting 3x3 within MPDP 5x5 ƒ ƒ ƒ ID:1 ID:2 ID:3 ID:4 ID:5 Data[0] ~ Data[9] : User Mode ASCII V(0x56) r(0x72) ASCII Value Video Data Bright- Receive : 34byte Graphic &...
- Page 23 MIS-4220 Infinitely Expandable Protocol Example 3.1.4 WhiteBalance Control ※ attachment : aSCii to HEX Conversion Table Graphic Data Brightness Command 3.1 Send Command ƒ (PDP ID = 1, Data = 50) 3.1.1 Multi Scale Control Command PDP ID Sub Command...
-
Page 24: OtherTips
MIS-4220 Infinitely Expandable 7. Other tips 7.2. about Plasma display panel 7.1. Before calling for service The followings are phenomena caused by characteristics of the plasma display panel. Before calling for any repair, check the following and then refer to a near A/S center. -
Page 25: ApplicableSignals
MIS-4220 Infinitely Expandable 8. applicable signals 9. Specifications 8.1. DVD / DTV Power supply 100 ~ 240V AC. 50/60Hz Power consumption InputSignal Resolution Remarks Average (Typical) 300W 480i 720 x 480 360W Plasma display panel 42 inch, 16:9 Aspect Ratio... - Page 26 MIS-4220 Infinitely Expandable Memo Memo...
