Installation and operating instructions

DHW cylinder

Tronic 4000 T | Tronic 6000 T

ES 035 | 050 | 080 | 100 | 120 | 150 5 ...

6720818520-00.1V

Need help?

Do you have a question about the Tronic 4000 T and is the answer not in the manual?

Questions and answers

Summary of Contents for Bosch Tronic 4000 T

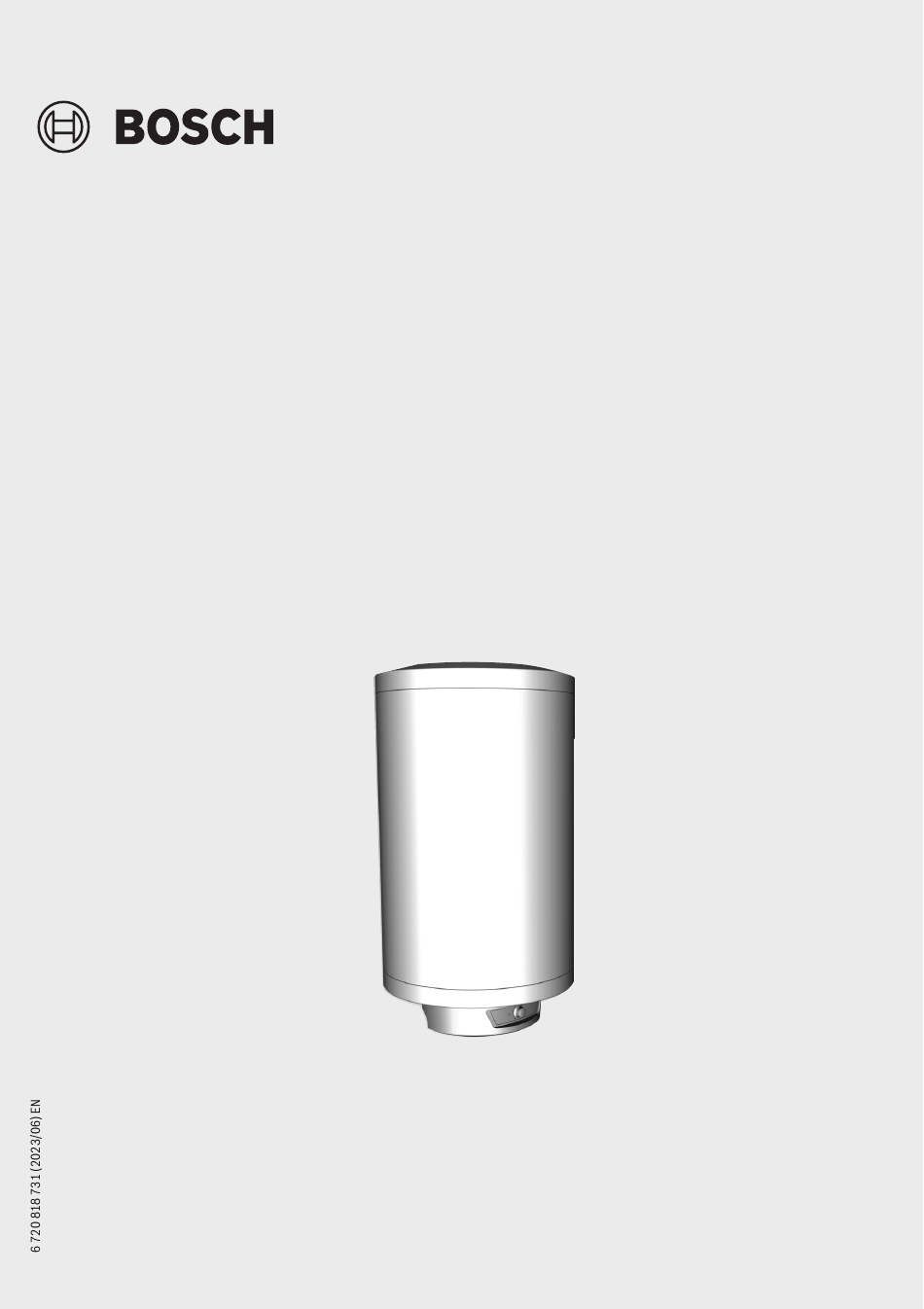

Page 1 Installation and operating instructions DHW cylinder Tronic 4000 T | Tronic 6000 T ES 035 | 050 | 080 | 100 | 120 | 150 5 ... 6720818520-00.1V...
Page 2 Pressure relief valve ....12 8.1.4 Maintenance and repair ....12 Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 3 ▶ Water may escape from the pressure relief valve drain when it is being heated. Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 4 [1200 W] Performance [BO] Make [H1, M1] Design Standard diameter Capillary temperature controller Thermometers Wall-mounted installation Vertical installation Reversible installation Connections to the bottom side 1) Only some models Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 5 HO5VV - F 3 x 1,5 mm or HO5VV - F 3 x 1,0 mm Protection class IP-Rating IP24 DHW temperature Temperature range °C up to 70 °C Table 4 Technical data Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 6 Dimensions in mm (wall mounting, vertical installation) Device ES035... ----- ES050... ES080... ES100... ES120... 1110 1030 ES150... 1329 1144 1250 >500 Table 5 6720818520-02.1V Fig. 3 Dimensions in mm (wall mounting, horizontal installation) Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 7 B1/N B2/N ▶ Then connect the DHW cylinder to the power supply via a connection socket with a ground. 6720818585-02.1V Fig. 6 Connection diagram Tronic 6000 T Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 8 6 0 c m NOTICE: ▶ Make sure that the hot water outlet is in the top part of the appliance. 6 720 612 659-13.3TT Fig. 7 Protection zones Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 9 [7] Expansion vessel to the type of water (for example, adding [8] Mixing valve filtering systems or changing the supply source). Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 10 ▶ install an expansion vessel (Fig. 11, [7]) to stop the pressure relief valve opening so frequently. The volume of the expansion vessel should be equivalent to 5% of the volume of the appliance. Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 11 ▶ Wait until the water temperature has dropped enough to prevent scalding and other damage. ▶ Close the water tap and open a hot water tap. ▶ Open pressure relief valve (Fig. 15). Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 12 To dispose of old electrical or electronic ▶ During maintenance, replace removed gaskets with new devices, you should use the return and ones. collection systems put in place in the country concerned. Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 13 ▶ Connect the DHW cylinder to the power supply. Safety Thermostat The DHW cylinder is equipped with an automatic safety device. This safety device isolates the DHW cylinder from the power Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 14 • power consumption • appliance functionality • appliance service life Amongst other things, the abovementioned consequences lead to a lower thermal transfer between the heater and the Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 15 ▶ If necessary, install a pressure reducer (Fig. 11). ▶ Confirm the need for an expansion vessel (pre-load 0.5 bar below Pmax). Capacity of the water supply network. ▶ Check piping. Table 7 Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 16 (Tab. 3, 4). or leak in the hot water system. ▶ Replace the product with one that has sufficient capacity. Table 7 Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 17 6 (1) sentence 1 (f) GDPR / UK GDPR. To exercise your rights, please contact us via privacy.ttgb@bosch.com To find further information, please follow the QR-Code. Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 18 Notes Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
Page 19 Notes Tronic 4000 T | Tronic 6000 T – 6 720 818 731 (2023/06)
