Inline 76660T Manual

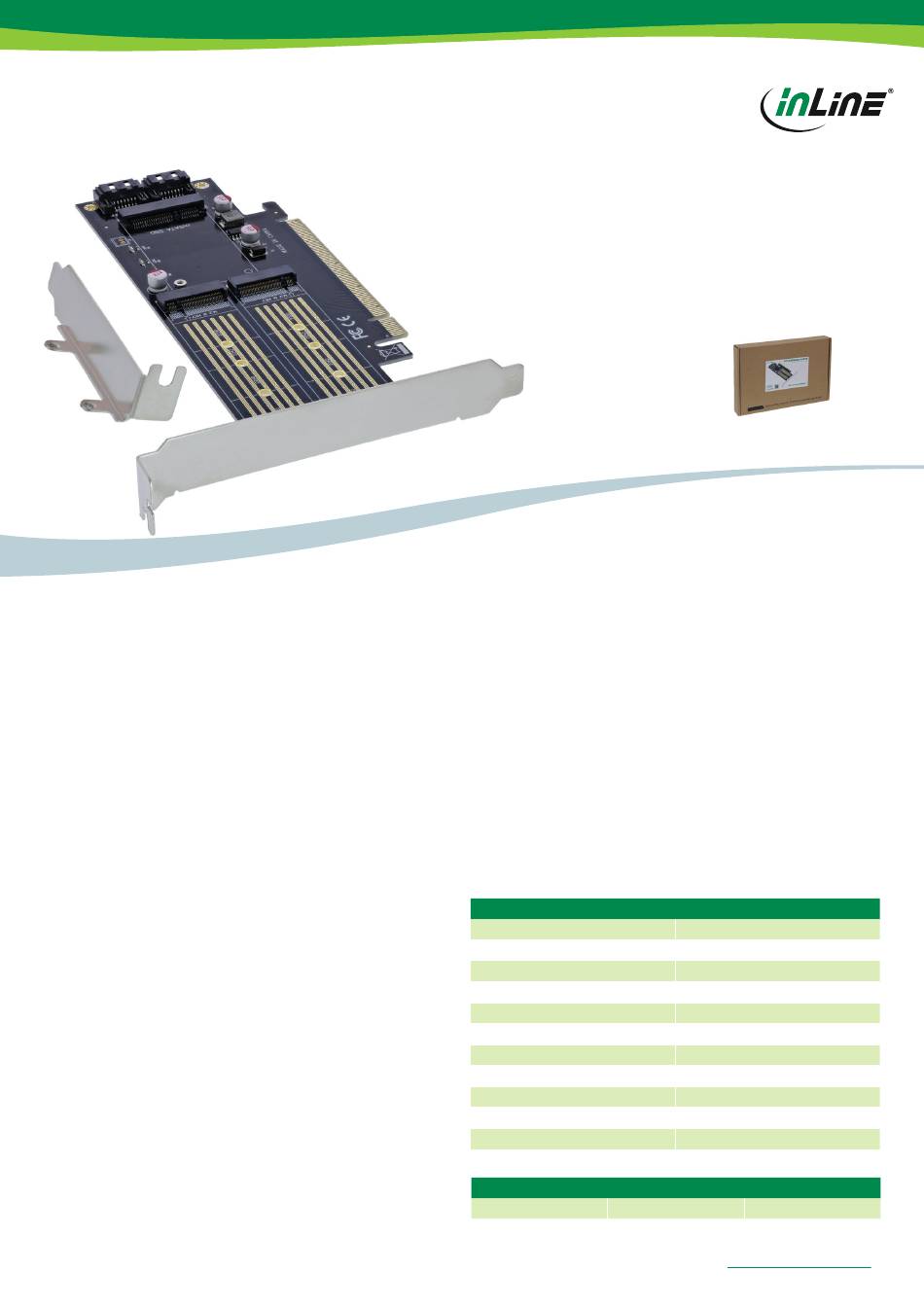

INLINE® PCI EXPRESS CARD X16
to 2x M.2, 1x mSATA
• Multifunctional PCIe card for expanding the internal memory with M.2
NVMe, M.2 SATA and mSATA
• PCIe 3.0 x16 interface for maximum compatibility and speed
• M.2 Key B supports both SATA and NVMe SSD in SATA mode (up to 6
Gb/s)
• M.2 Key M supports NVMe SSDs in PCIe mode with up to 4 Gb/s
• mSATA connection for additional storage space (SATA cable required)
• Onboard LED indicators to display the operating status of all interfaces
The InLine® PCI Express card enables the simultaneous use of three dif-
ferent SSD types on a single PCIe card. With one M.2 NVMe Key M slot,
one M.2 SATA/NVMe Key B slot and one mSATA slot, it offers a versatile
storage solution for systems that require high performance and maximum
flexibility.
The M.2 Key B Slot supports M.2 SATA SSDs and NVMe SSDs in SATA
mode, while the M.2 Key M slot is intended exclusively for NVMe SSDs
in PCIe mode. The mSATA slot is connected to the mainboard via a SATA
cable and thus enables additional storage space.
The NVMe SSD is powered directly via the PCIe bus (3.3 V), while M.2
SATA and mSATA SSDs are connected to the mainboard via separate
SATA connectors. LED indicators for all interfaces make it easier to moni-
tor operating activity.
Technical data:
• Bus type & PCIe: PCIe 3.0 x16 (uses one PCIe x16 slot; ultra-fast PCIe
v3.0 lanes, which enable the operation of NVMe and SATA)
• Connection – interfaces:
• 1 x M.2 slot (Key B) – for NVMe (SATA mode) and M.2 SATA SSDs
• 1 x M.2 slot (Key M) – for NVMe SSDs in PCIe mode
• 1 x mSATA slot – for mSATA modules
• 2 x SATA 6 Gb/s 7-pin connectors – for connecting mSATA and M.2
SATA modules to the motherboard
• Dimensions: 169 mm x 68 mm (PCIe board)
• Compatible modules:
• M.2 SSDs (Key B, Key M or B+M) in the sizes 2230, 2242, 2260, 2280
• mSATA SSDs (half or full size)
• Data rate:
• M.2 NVMe (Key M and Key B+M): up to 4 Gb/s
• M.2 SATA (Key B) & mSATA: up to 6 Gb/s (via SATA)
Operating conditions:
• Operating temperature: -40 °C to +85 °C
Functions:
• Automatic detection of the lane configuration at boot
• Onboard LED indicators (3x status display for each interface)
• NVMe SSDs (Key M) receive their power supply directly via the PCIe
bus (3.3 V)
• M.2 SATA and mSATA modules require a SATA data connection to the
mainboard
• No additional driver required
System requirements: Hardware:
• PC with one free PCIe 3.0 x16 slot
• Motherboard with support for PCIe NVMe & SATA
Operating system support:
• Windows: 11, 10, 8, 8.1
• Windows Server: 2012 R2
• Linux: from kernel 2.6.30
Scope of delivery:
• 1 x InLine® PCI Express card x16 to 2x M.2, 1x mSATA
• 1 x low-profile slot bracket
• 1 x SATA cable
• 1 x hand screwdriver
• 4 x screws
• 2 x heat conduction pads
• 1 x instruction manual (German/English)
Technical Data
Article height:
Article length:
Article width:
Connections internal:
Interface:
Low Profile:
RAID:
Slot:
Transmission rate:
Type:
Type of packaging:
Item No. Interface
76660T NVMe
1.9 cm
17 cm
12 cm
2x M.2-NVMe-SSD + 1x mSATA
NVMe
Yes
No
PCIe
6 Gb/s
Controller
InLine® carton without Euro perforation
EAN
4043718341580
