INLINE®
Subline wenn nötig
• Supports two 2.5-inch NVMe SSDs for maximum performance and
fl exibility
• PCIe 3.0 x8 connection with up to 64 Gb/s bandwidth
• Automatic lane detection (bifurcation) for optimum system integration
• LED indicators for easy fault diagnosis and operating status
• No additional driver required: native Windows and Linux support

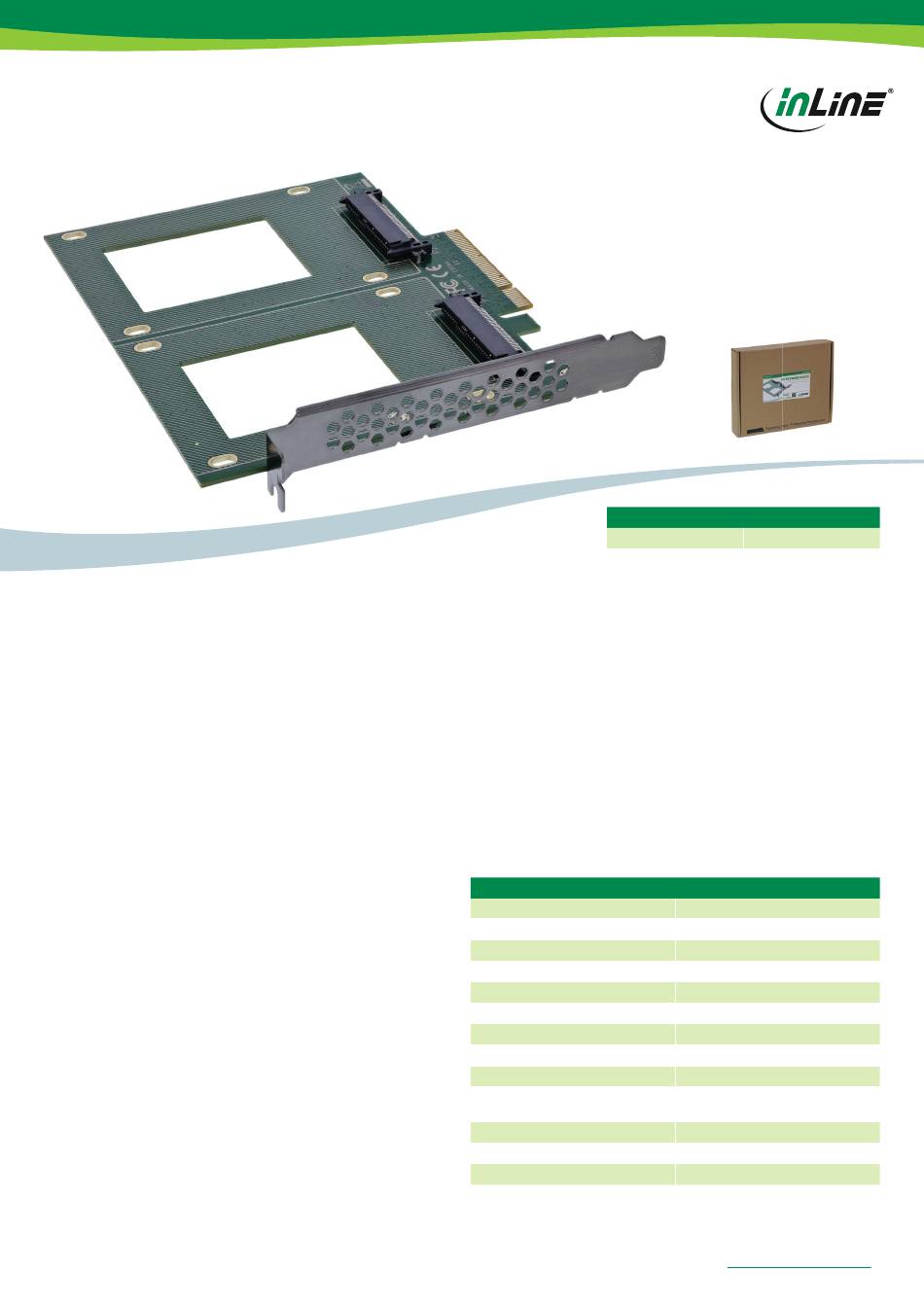

The InLine® PCI Express card expands your system with two internal U.2
NVMe SSD slots and enables the parallel operation of two SSDs with
full PCIe bandwidth. Thanks to automatic lane detection, confi guration is
carried out for optimum system integration.
With a PCIe 3.0 x8 interface, the card off ers a maximum bandwidth of
up to 64 Gb/s, with each U.2 port supporting a data rate of up to 4 GB/s.
LED indicators for read and write activity make it easy to monitor the
operating status.
Technical data:
• Bus type & PCIe: PCIe 3.0 (8 GT/s) x8 lanes (off ers up to 64 Gb/s band-
width)
• Connector interfaces: 2 x SFF-8639 connectors (for the installation of
2.5-inch NVMe SSDs)
• Chipset: PI6C20400BLE
• Compatible U.2 devices: Supports 2.5-inch NVMe SSDs according to
SFF-8639 standard
• Data rate: Each port supports transfer rates of up to 4 GB/s
• Dimensions: 143 mm x 122 mm (PCIe board)
Operating conditions:
• Operating temperature: -40 °C to +85 °C
Functions:
• Automatic detection of the lane confi guration during boot
• Onboard LED indicators (2x read/write activity LEDs)
• The U.2 SSDs obtain their power supply directly via the PCIe bus (3.3 V)
• No additional driver required
System requirements: Hardware:
• PC with one free PCIe 3.0 x8 (or x16 slot)
• Motherboard that supports PCIe bifurcation
BIOS/UEFI settings for PCIe bifurcation:
In order for both U.2 NVMe SSDs to be operated simultaneously, the PCIe
slot used must often be set to Bifurcation mode in the BIOS/UEFI. This
splits the available PCIe lanes into several channels (e.g. one x8 slot into
two x4 channels).
Item No.
76660P
The exact designation varies depending on the motherboard manufac-
turer and BIOS/UEFI version. Terms such as „PCIe Bifurcation", „Lane
Splitting" or „PCIe Slot Confi guration" may be used. Please consult your
mainboard manual for the correct setting and then check whether both
NVMe SSDs are recognized.
Operating system support:
• Windows: 11, 10, 8, 7
• Windows Server: 2012 R2
• Linux: Native support (Fedora, SUSE, Ubuntu, Red Hat)
Scope of delivery:
• 1 x InLine® PCI Express card to 2x internal U.2 NVMe SFF-8639
• 1 x hand screwdriver
• 8 x screws
• 1 x instruction manual (German/English)
Technical Data
Article height:
Article length:
Article width:
Connections external:
Connections internal:
Interface:
Low Profi le:
RAID:
Slot:
Special feature:
Transmission rate:
Type:
Type of packaging:
EAN
4043718341535
2,2 cm
16 cm
13,8 cm
None
2x U.2 NVMe SFF-8639 wide
NVMe
No
No
PCIe
Simultaneous reading and copying of
2 cards
64 Gb/s
Controller
InLine® carton without Euro perforation
