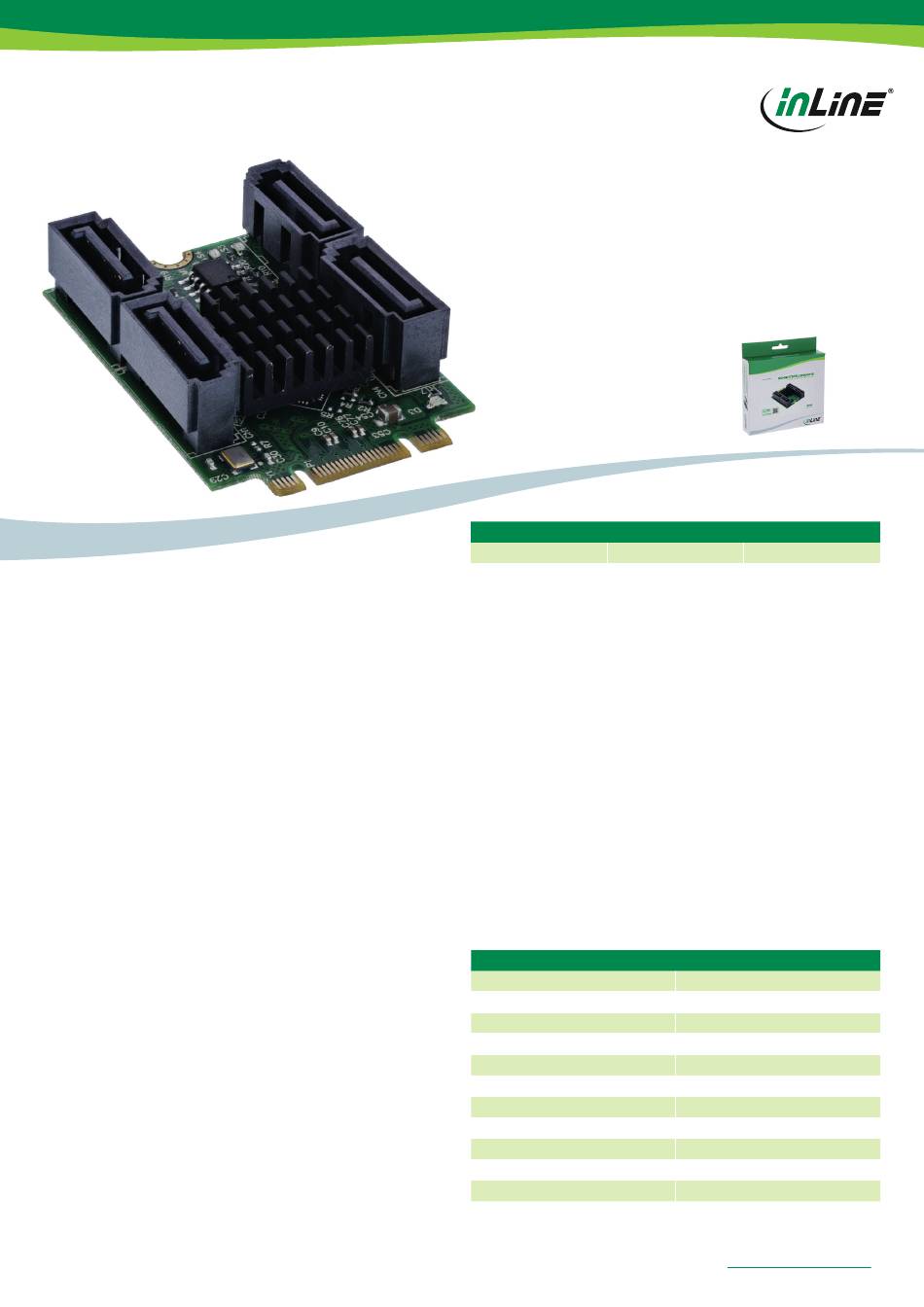

INLINE® INTERFACE CARD M.2
Key B+M to 4x SATA connector, RAID, HyperDuo
• Multifunctional M.2 to SATA converter card for the connection of up to
four SATA drives
• M.2 Key B+M interface for the operation of an M.2 SATA SSD
• RAID support (RAID 0, RAID 1, RAID 10, HyperDuo) for optimum data
security and performance
• Hot Plug & Hot Swap for the installation and removal of drives during
operation
• Port Multiplier support for parallel operation of multiple drives on one
SATA port
• No additional drivers required – full support by the operating system
The InLine® interface card M.2 Key B+M to 4x SATA connector is a high-
performance storage solution that enables the expansion of SATA sto-
rage devices. It allows the operation of an M.2 SATA SSD (Key B+M) and
also provides four SATA 6 Gb/s ports for additional storage devices.
Thanks to RAID support (RAID 0, RAID 1, RAID 10, HyperDuo), the card
can be used for maximum speed, reliability or automatic SSD/HDD caching
combinations. The Hot Plug and Hot Swap functionality allows drives to
be swapped during operation without having to shut down the system.
The M.2 SSD is powered directly via the M.2 slot, while the SATA ports
are connected via external cables. LED indicators show the operating
status of the ports, and support for Port Multiplier technology allows mul-
tiple drives to operate simultaneously on a single SATA port.
Technical data:
• Bus type & interface: M.2 PCIe x2 interface (dual-thread, B, M and B+M
key)
• Controller/chipset: Marvell 88SE9230
• Connection – interfaces:
• 1 x M.2 slot (Key B+M) for one M.2 SATA SSD
• 4 x SATA GEN III ports (6 Gb/s per port)
• 4 x 7-pin SATA connectors for the connection with M.2 SATA/mSATA
SSDs to the mainboard
• Compatible modules:
• M.2 SSDs (Key B, Key M or Key B+M) in the sizes 2230, 2242, 2260,
2280
• mSATA SSDs (half or full size)
• Data rates:
• SATA ports: Up to 6 Gb/s per channel
• M.2 interface: Up to 10 Gb/s total throughput (via 2x PCIe lanes)
• Dimensions: 30 mm x 42 mm (M.2 board)
Operating conditions:
• Operating temperature: -40 °C to +85 °C
Functions:
• Hot Plug & Hot Swap for drive replacement during operation
Item No. Interface
76660U NVMe
• Native Command Queue (NCQ) for optimized data processing
• Port Multiplier support for multiple drives per SATA port
• RAID modes: RAID 0 (striping), RAID 1 (mirroring), RAID 10 (stripe of
mirrors), HyperDuo (automatic SSD/HDD caching)
• Automatic detection of the lane configuration during boot
• Onboard LED indicators to display the port activities
• Power supply for the M.2 SSD is provided directly via the M.2 slot
• SATA ports must be connected via external cables
• No additional driver required
System requirements: Hardware:
• PC with at least one free M.2 slot (B, M or B+M that supports PCIe)
• Mainboard with free SATA ports for data transfer
• One available PCIe connector for the installation of the adapter
Operating system support:
• Windows: 11, 10, 8, 7, Vista, XP
• Windows Server: 2003, 2008
• Linux: from kernel 2.6
Scope of delivery:
• 1 x InLine® interface card M.2 Key B+M to 4x SATA connector, RAID,
HyperDuo
• 4 x SATA cable
• 1 x instruction manual (German/English)
Technical Data
Article height:
Article length:
Article width:
Connections external:
Connections internal:
Interface:
Low Profile:
Number of drives:
RAID:
Slot:
Transmission rate:
EAN
4043718341597
1.1 cm
4.2 cm
3 cm
None
1x M.2 + 4x SATA 6Gb/s
NVMe
No
4
0/1/10/HyperDuo
PCIe
6 Gb/s
