Generally, installing SDR/DDR SDRAM modules to your motherboard is very easy, you can
refer to figure 2-4 to see what a 168-pin SDR/184-pin DDR SDRAM module looks like.
NOTE! When you install DIMM module fully into the DIMM socket the eject tab should
be locked into the DIMM module very firmly and fit into its indention on both
sides.
For the SDR SDRAM CLOCK is set at 133MHz, use only PC133/DDR266-
WARNING!
compliant SDR/DDR Modules. When this motherboard operate at 133Mhz, most
system will not even boot if non-compliant modules are used because of the strict
timing issues, if your SDR/DDR Modules are not PC133/DDR266-compliant, set
the SDRAM clock to 100MHz to ensure system stability.
It is only can install either SDRAM or DDR Module at one time. Don't install
NOTE!
both DDR Module and SDR Module at same time, it will have risk to damage
your Memory and Motherboard.
2-5 Expansion Cards
Turn off your power when adding or removing expansion cards or other
WARNING!
system components. Failure to do so may cause severe damage to both
your motherboard and expansion cards.

2-5-1 Procedure For Expansion Card Installation

1. Read the documentation for your expansion card and make any necessary hardware or
software setting for your expansion card such as jumpers.
2. Remove your computer's cover and the bracket plate on the slot you intend to use.
3. Align the card's connectors and press firmly.
4. Secure the card on the slot with the screen you remove above.
5. Replace the computer system's cover.
6. Set up the BIOS if necessary.
7. Install the necessary software driver for your expansion card.
2-5-2 Assigning IRQs For Expansion Card
10

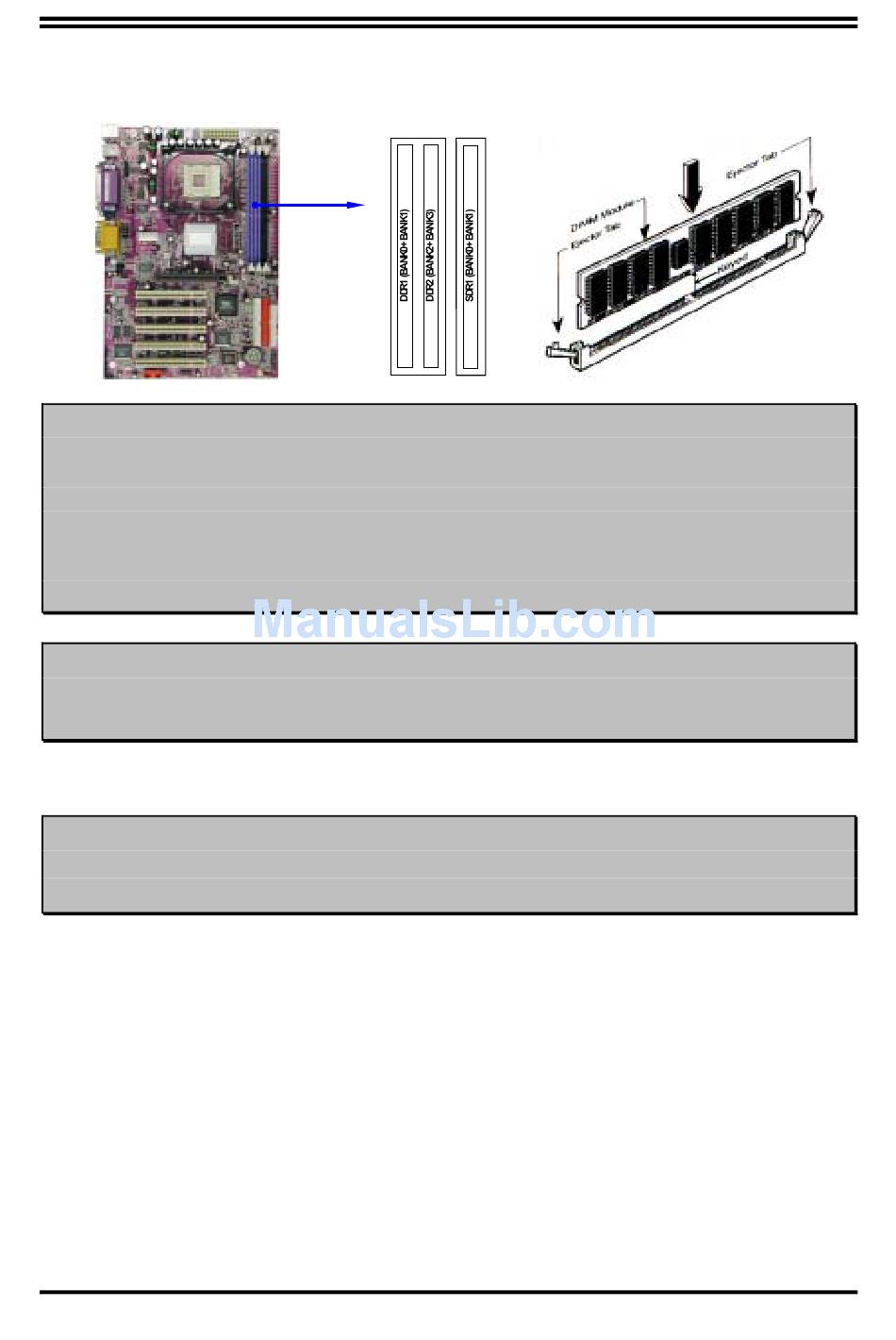

Figure 2-4
