NetPA 204 POE • Setup Guide
IMPORTANT NOTE:
Go to www.extron.com
connecting the product to the power source.
This guide provides quick start instructions for an experienced installer to set up and operate the Extron NetPA 204 POE network
power amplifier. The Dante-enabled amplifier receives up to four channels of audio via its AT (PoE++) port and drives up to
20 watts per channel into 8Ω or 4Ω speaker loads. The amplifier is powered via Power over Ethernet (PoE).
Installation
Step 1 — Mounting
Turn off or disconnect all equipment power sources and mount the unit as required with either the included MBU 123 Low-Profile
Mount Kit or the optional ATB 100 Amplifier Tile Bridge Ceiling Mount Kit (which can mount the amplifier above ceiling tiles, out of
sight and near the speakers).
Step 2 — Making Rear Panel Connections
NetPA 204 POE

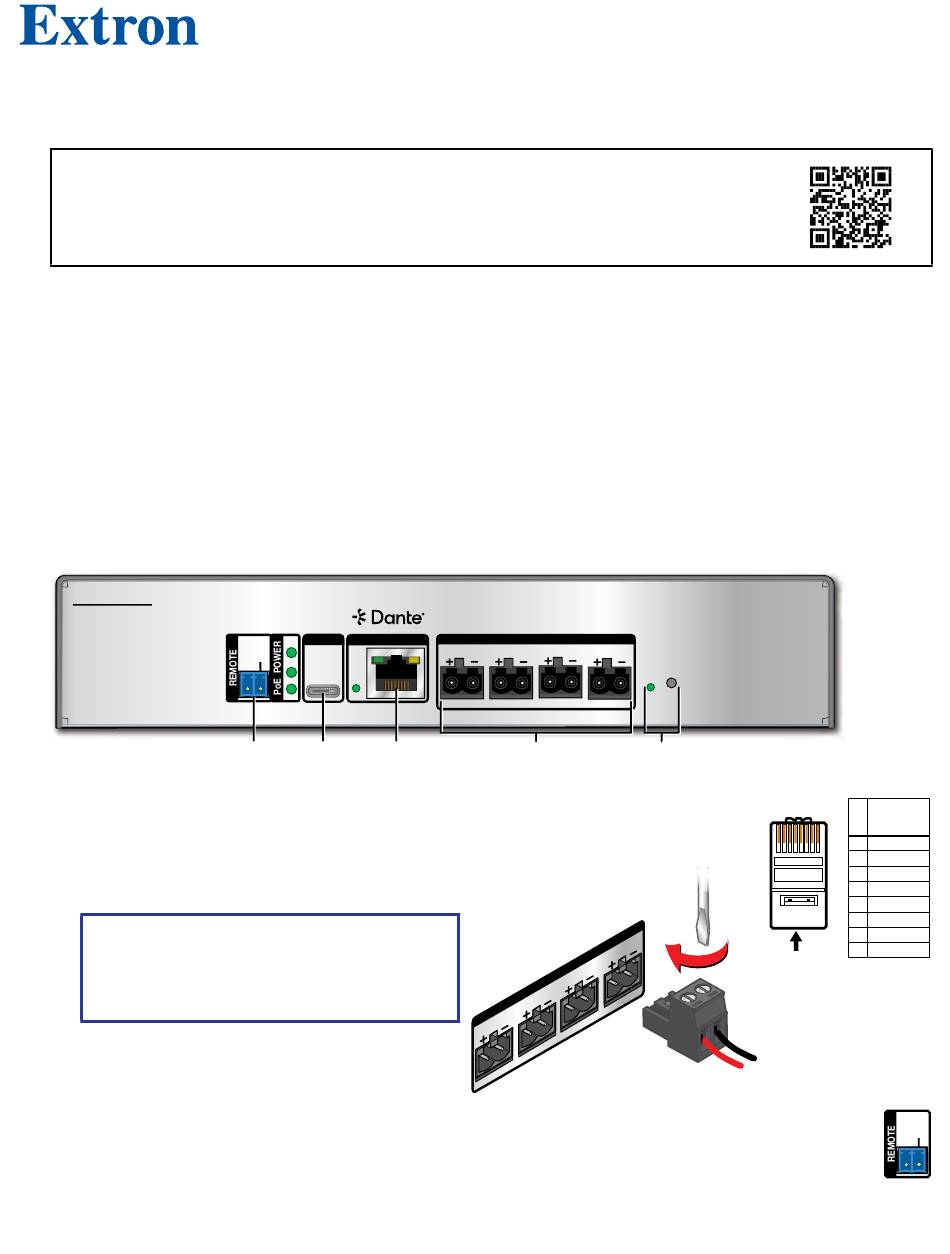

Figure 1. NetPA 204 POE Rear Panel
AT (PoE++) — Connect an RJ-45 connector to communicate with both the Dante network and a
A
computer running the Extron DSP Configurator Pro software. The Link LED indicates when a Dante
sync connection is made.
8Ω/4Ω OUTPUTS 1 through 4 —
B
5mm captive-screw connectors to the speaker outputs.
ATTENTION:
• Use 'Class 2 Wiring' to connect speakers to
the amplifier output.
• Utilisez un câblage de classe 2 pour connecter
les enceintes à la sortie de l'amplificateur.
REMOTE port — To mute all four outputs, jump the MUTE pin to the ground (G) pin on this 2-pole 3.5mm captive
C
screw connector. Remove the jump to unmute the output (output audio).
CONFIG(uration) port — Connect a PC or other controlling device into the amplifier via this USB-C connector for
D
configuration of the amplifier using Extron DSP Configurator Pro software.
Reset button and LED — Initiates reset modes (see the NetPA 204 POE User Guide for details).
E
for the complete NetPA 204 POE user guide, and specifications before
CONFIG
A T (PoE++)
++
MUTE
+
G
LINK
C C C D D D A A A
Connect up to four 2-pin,
8Ω/4Ω OUTPUTS
3
1 2 4
CLASS 2 WIRING
B B B
4
S
U T
T P
O U 3
/ 4 Ω
8 Ω
2
1
N G
I R I
2 W
S S
C L A
R
E E E
Pins:
12345678
TP Wires
TIA/EIA T
568B
Pin Wire color
1 White-orange
2 Orange
3
White-green
4 Blue
5 White-blue
Green
6
7 White-brown
8 Brown
MUTE
G
