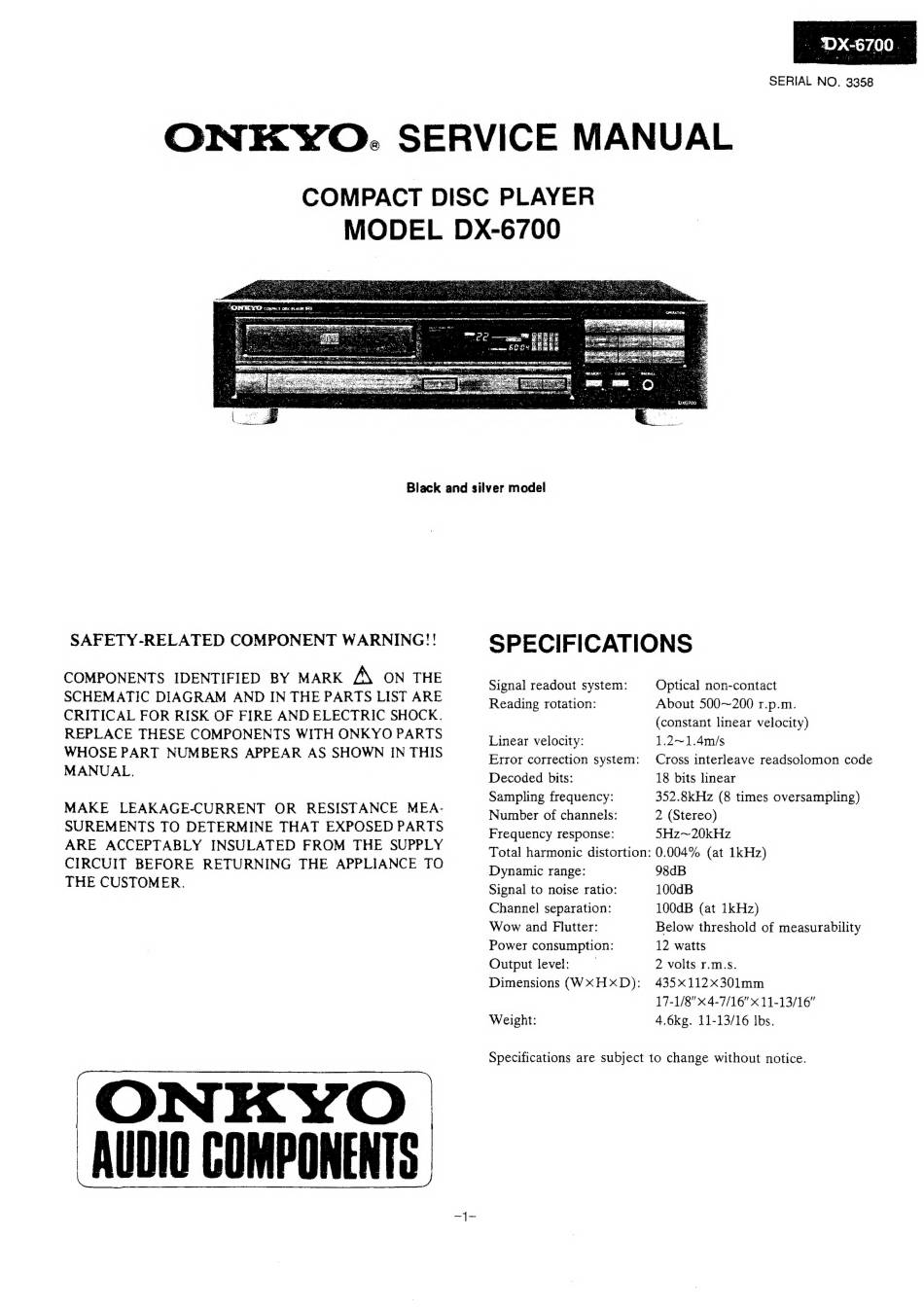

Onkyo DX-6700 Service Manual

» DX-6700.-
SERIAL NO. 3358
ONKYO. SERVICE MANUAL
COMPACT DISC PLAYER
MODEL DX-6700
Black and silver model
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
ARE ACCEPTABLY INSULATED FROM THE SUPPLY
CIRCUIT BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.
ONKYO
AUDIO COMPONENTS
SPECIFICATIONS
Signal readout system:
Reading rotation:
Optical non-contact
About 500~200 r.p.m.
(constant linear velocity)
1.2~1.4m/s
Cross interleave readsolomon code
18 bits linear
352.8kHz (8 times oversampling)
Linear velocity:
Error correction system:
Decoded bits:
Sampling frequency:
Number of channels: 2 (Stereo)
Frequency response: 5Hz~20kHz
Total harmonic distortion: 0.004% (at 1kHz)
Dynamic range: 98dB
Signal to noise ratio: 100dB
Channel separation: 100dB (at 1kHz)
Wow and Flutter: Below threshold of measurability
Power consumption: 12 watts
Output level: 2 volts r.m.s.
Dimensions (WXHXD): 435x112xX301mm
17-1/8" x 4-7/16" x 11-13/16"
Weight: 4.6kg. 11-13/16 Ibs.
Specifications are subject to change without notice.
