Ref. No. 3395
ONKYO.

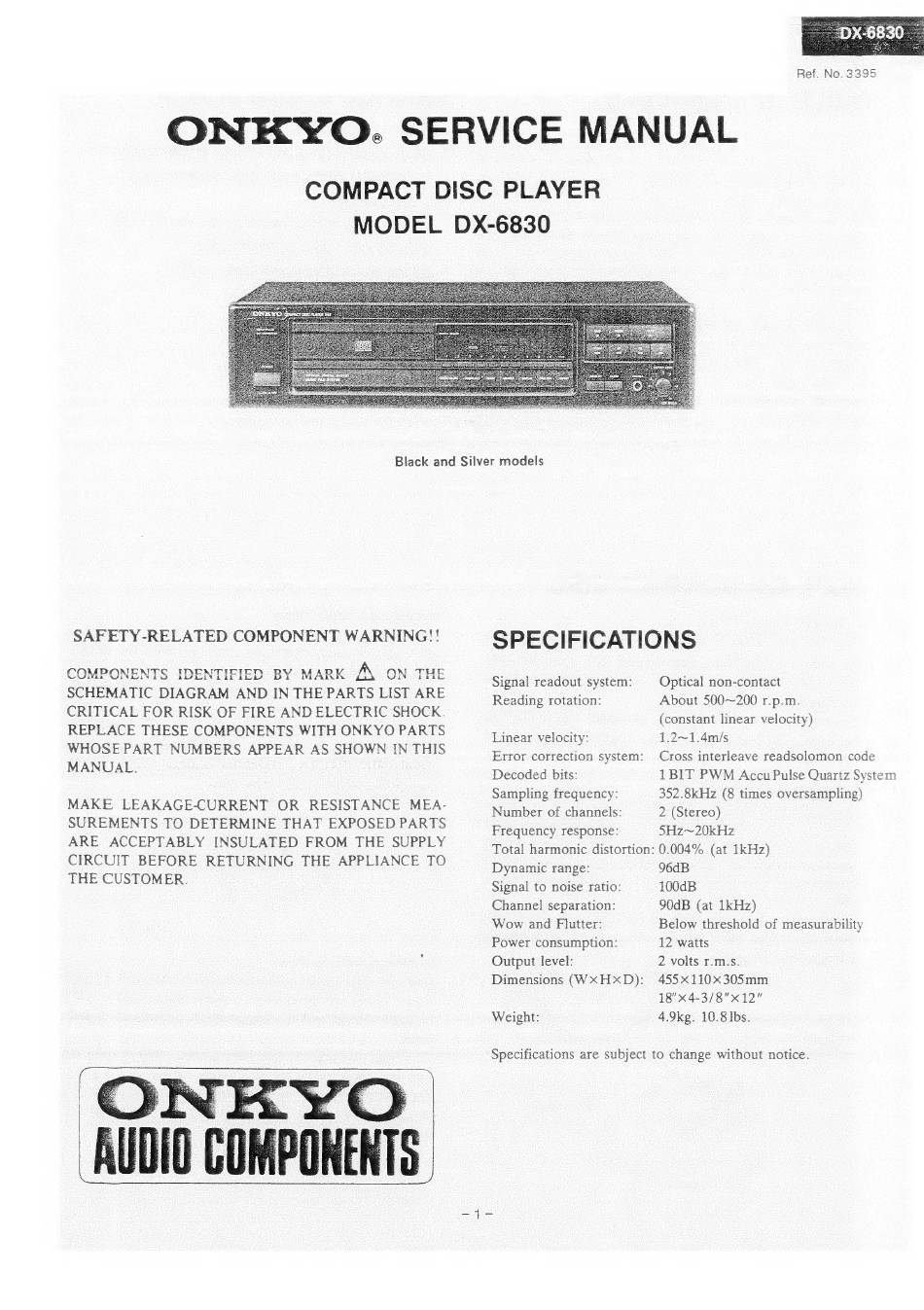

SERVICE MANUAL
COMPACT DISC PLAYER
MODEL
DX-6830
ied
Black and Silver models
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A\ ON THE
SCHEMATIC DIAGRAM
AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PART NUMBERS
APPEAR AS SHOWN
IN THIS
MANUAL.
MAKE
LEAKAGE-CURRENT
OR
RESISTANCE
MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
ARE
ACCEPTABLY
INSULATED
FROM
THE SUPPLY
CIRCUIT
BEFORE
RETURNING
THE APPLIANCE
TO
THE CUSTOMER.
SPECIFICATIONS
Signal readout system:
Reading rotation:
Linear velocity:
Error correction system:
Decoded bits:
Sampling frequency:
Number of channels:
Frequency response:
Total harmonic distortion:
Dynamic range:
Signal to noise ratio:
Channel separation:
Wow and Flutter:
Power consumption:
Output level:
Dimensions (WXHxD):
Weight:
Optical non-contact
About 500~200 r.p.m.
(constant linear velocity)
1.2~1.4m/s
Cross interleave readsolomon code
1 BIT PWM Accu Pulse Quartz System
352.8kHz (8 times oversampling)
2 (Stereo)
5Hz~20kHz
0.004% (at 1kHz)
96dB
100dB
90dB (at 1kHz)
Below threshold of measurability
12 watts
2 volts r.m.s.
455x110x305mm
18" 4-3/8"
x12"
4.9kg. 10.8 Ibs.
Specifications are subject to change without notice.
