DX-6630

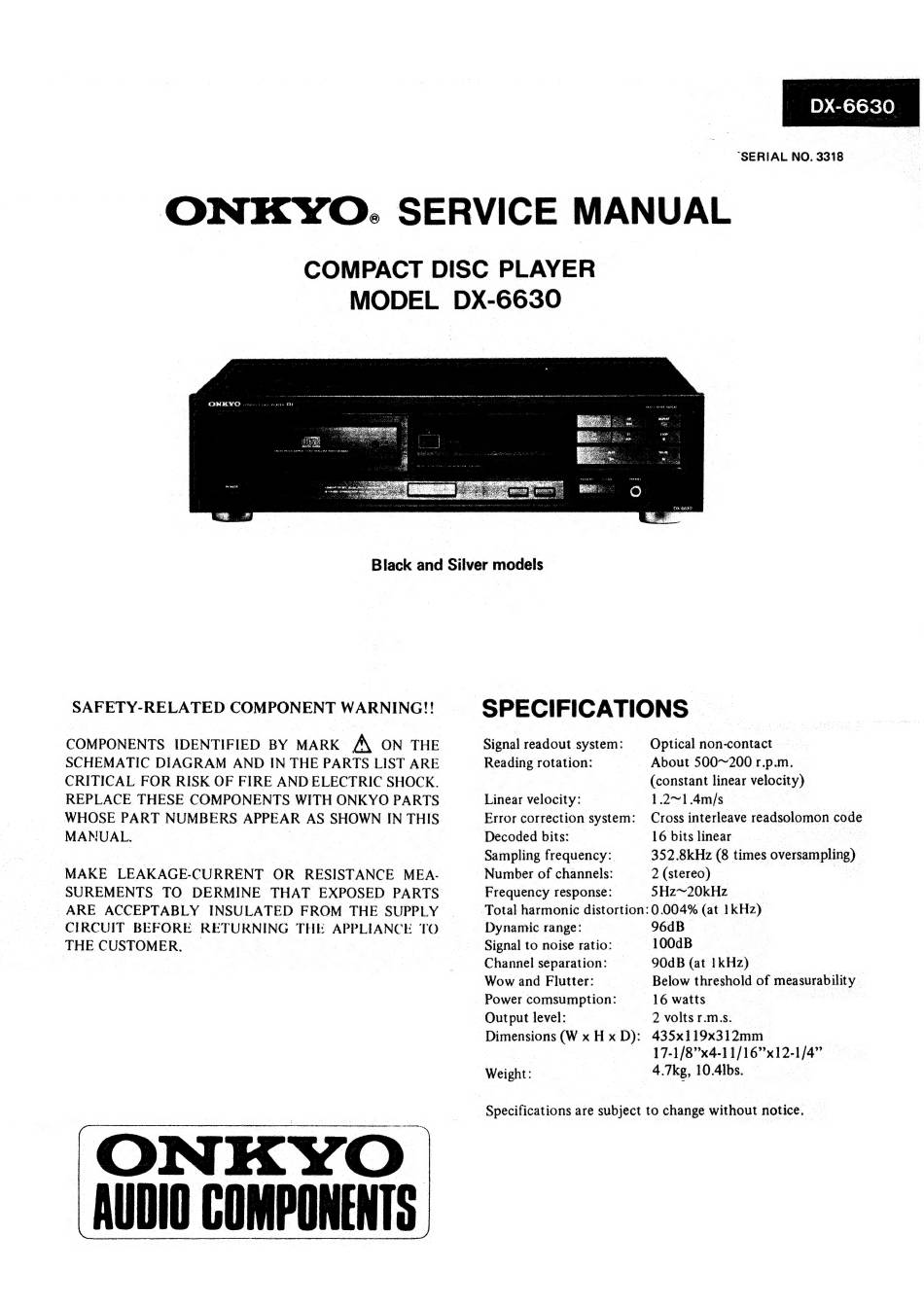

ONKYO. SERVICE MANUAL
COMPACT DISC PLAYER
MODEL
DX-6630
Black and Silver models
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK (\ ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.
|
MAKE LEAKAGE-CURRENT
OR RESISTANCE MEA-
SUREMENTS TO DERMINE THAT EXPOSED PARTS
ARE ACCEPTABLY
INSULATED FROM THE SUPPLY
CIRCUIT
BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER,
_
|
ONKYO
AUDIO COMPONENTS
SPECIFICATIONS
|
Signal readout system:
Reading rotation:
Optical non-contact
_ About 500~200 r.p.m.
(constant linear velocity)
Linear velocity:
1.2~1.4m/s
|
Error correction system:
Cross interleave readsolomon code
Decoded bits:
16 bits linear
;
|
Sampling frequency:
352.8kHz (8 times oversampling)
Number of channels:
2 (stereo)
|
ae
Frequency response:
5Hz~20kHz
Total harmonic distortion: 0.004% (at 1kHz)_
Dynamic range:
96dB .
|
Signal to noise ratio:
100dB
:
Channel separation:
=
90dB (at 1kHz)
Wow and Flutter:
Below threshold of measurability ;
Power comsumption:
16 watts
|
eee
Output level:
2voltsr.ms.
Dimensions (W x Hx D): 435x119x312mm
17-1/8°x4-11/16"x12-1/4"
Specifications are subject to change without notice. _
