Onkyo DX-6930 Service Manual

Onkyo DX-6930 Service Manual

Compact disc player
Hide thumbs Also See for DX-6930:

Advertisement

Quick Links

~ DX-6930
a e ) G1: 20)
REF.NO. 3422
ONKYO.

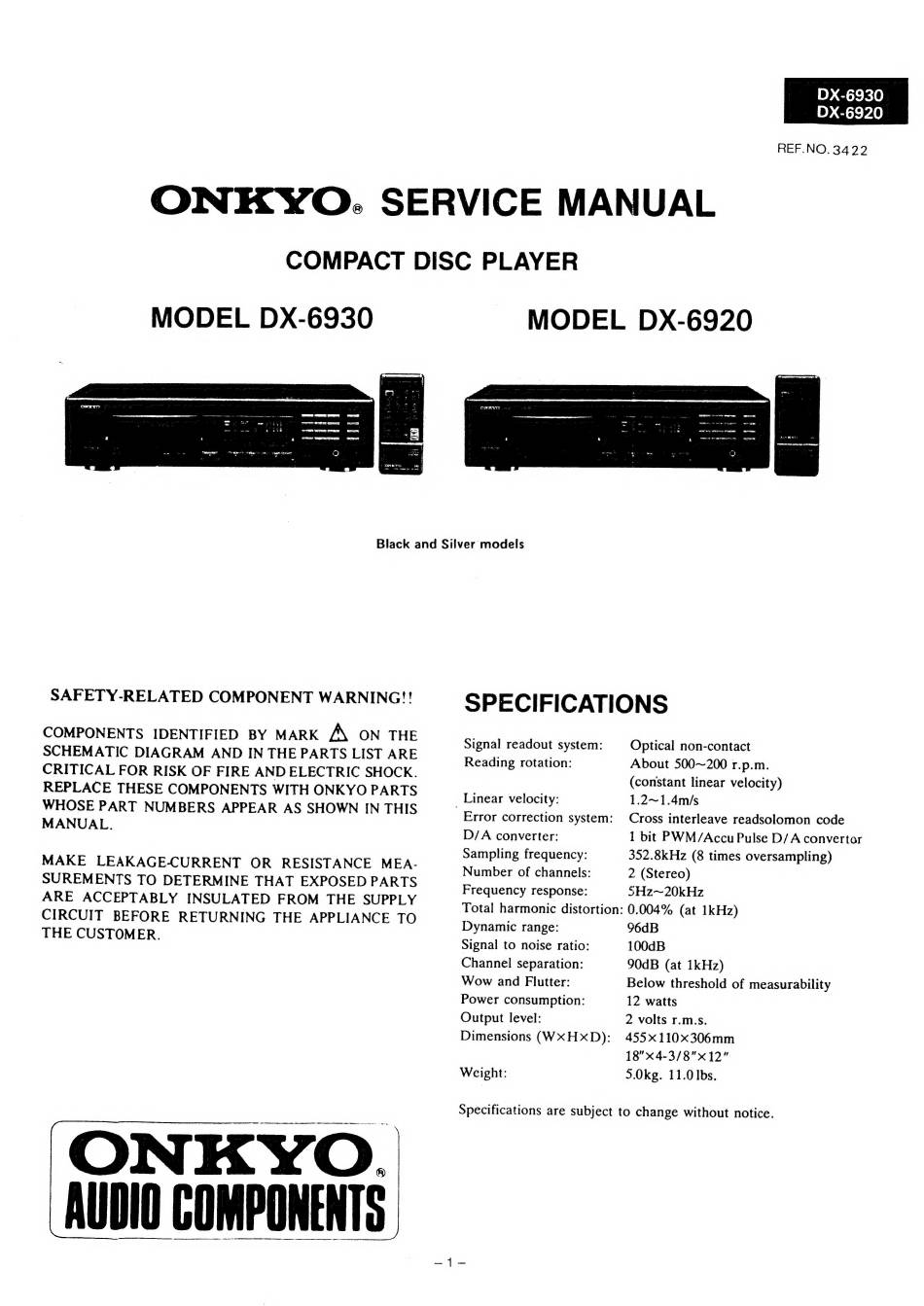

SERVICE MANUAL
COMPACT DISC PLAYER
MODEL DX-6930
MODEL DX-6920
Black and Silver models
AUDIO COMPONENTS
ca
ne 2 eR
NR
eta
a
SPECIFICATIONS
Signal readout system:
Optical non-contact
Reading rotation:
About 500~200 r.p.m.
(constant linear velocity)
_ Linear velocity:
1.2~1.4m/s
Error correction system:
Cross interleave readsolomon code
D/A converter:
1 bit PWM/Accu Pulse D/A convertor
Sampling frequency:
352.8kHz (8 times oversampling)
Number of channels:
2 (Stereo)
Frequency response:
SHz~20kHz
Total harmonic distortion: 0.004% (at 1kHz)
Dynamic range:
96dB
Signal to noise ratio:
100dB
Channel separation:
90dB (at 1kHz)
Wow and Flutter:
Below threshold of measurability
Power consumption:
12 watts
Output level:
2 volts r.m.s.
