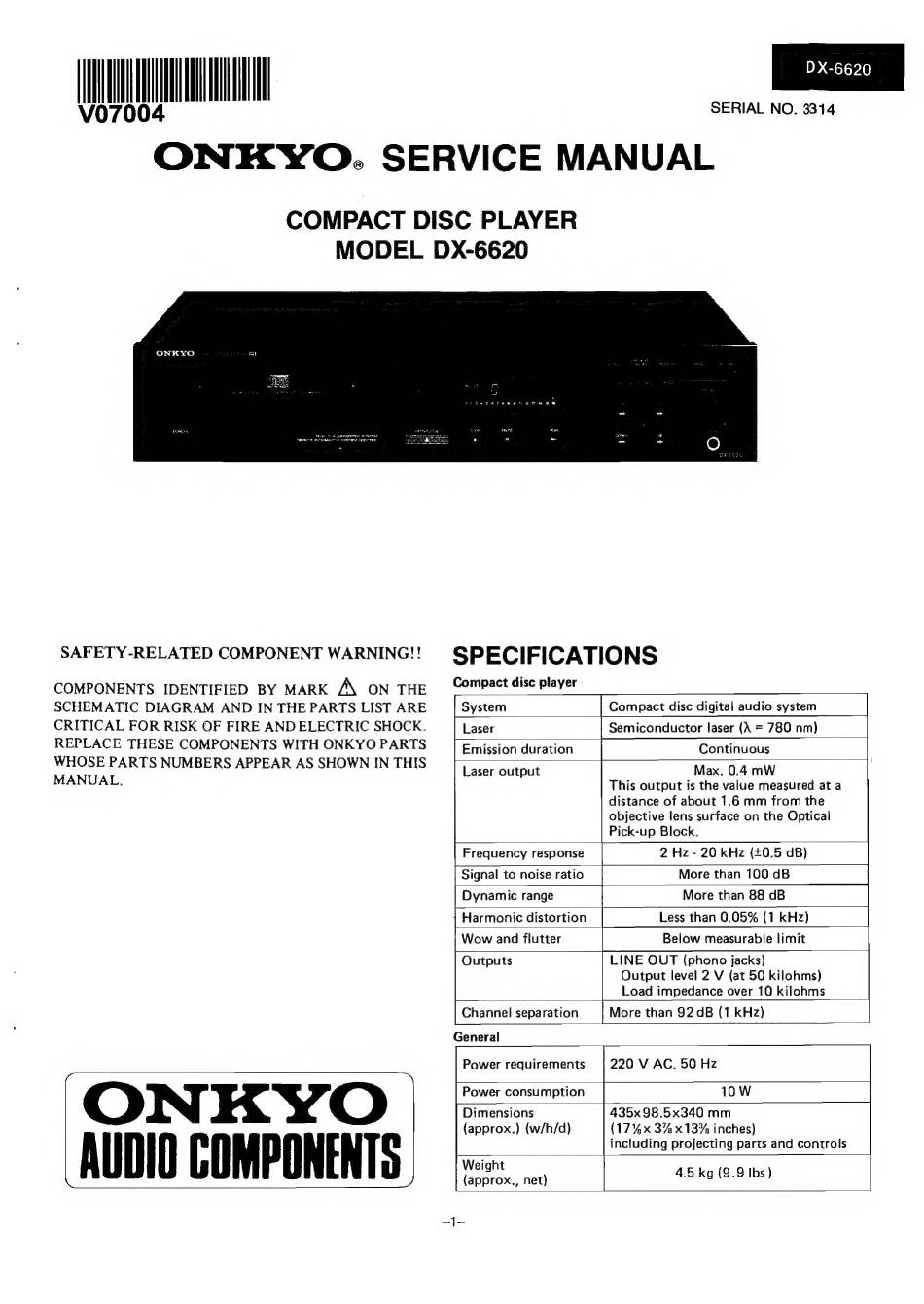

Onkyo DX-6620 Service Manual

I
V07004
DX-6620
SERIAL NO. 3314
ONKYO. SERVICE MANUAL
COMPACT DISC PLAYER

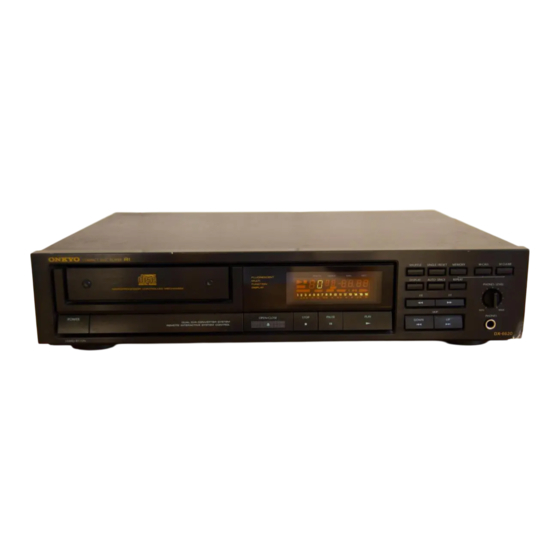

MODEL DX-6620
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PARTS NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.
ONKYO
AUDIO COMPONENTS
SPECIFICATIONS
Compact disc player
System
Compact disc digital audio system
Laser
Emission duration
Semiconductor laser (A = 780 nm)
Continuous
Laser output
Max. 0.4 mW
This output is the value measured at a
distance of about 1.6 mm from the
objective lens surface on the Optical
Pick-up Block.
Frequency response
2 Hz - 20 kHz (+0.5 dB)
Signal to noise ratio More than 100 dB
Dynamic range
More than 88 dB
Harmonic distortion Less than 0.05% (1 kHz)
Wow and flutter
Outputs
Below measurable limit
LINE OUT (phono jacks)
Output level 2 V (at 50 kilohms)
Load impedance over 10 kilohms
Channel separation
More than 92 dB (1 kHz)
General
Power requirements
220 V AC, 50 Hz
Power consumption
10 W
Dimensions
(approx.) (w/h/d)
435x98.5x340 mm
(17%x 3% x13% inches)
including projecting parts and controls
Weight
(approx., net)
4.5 kg (9.9 Ibs)
