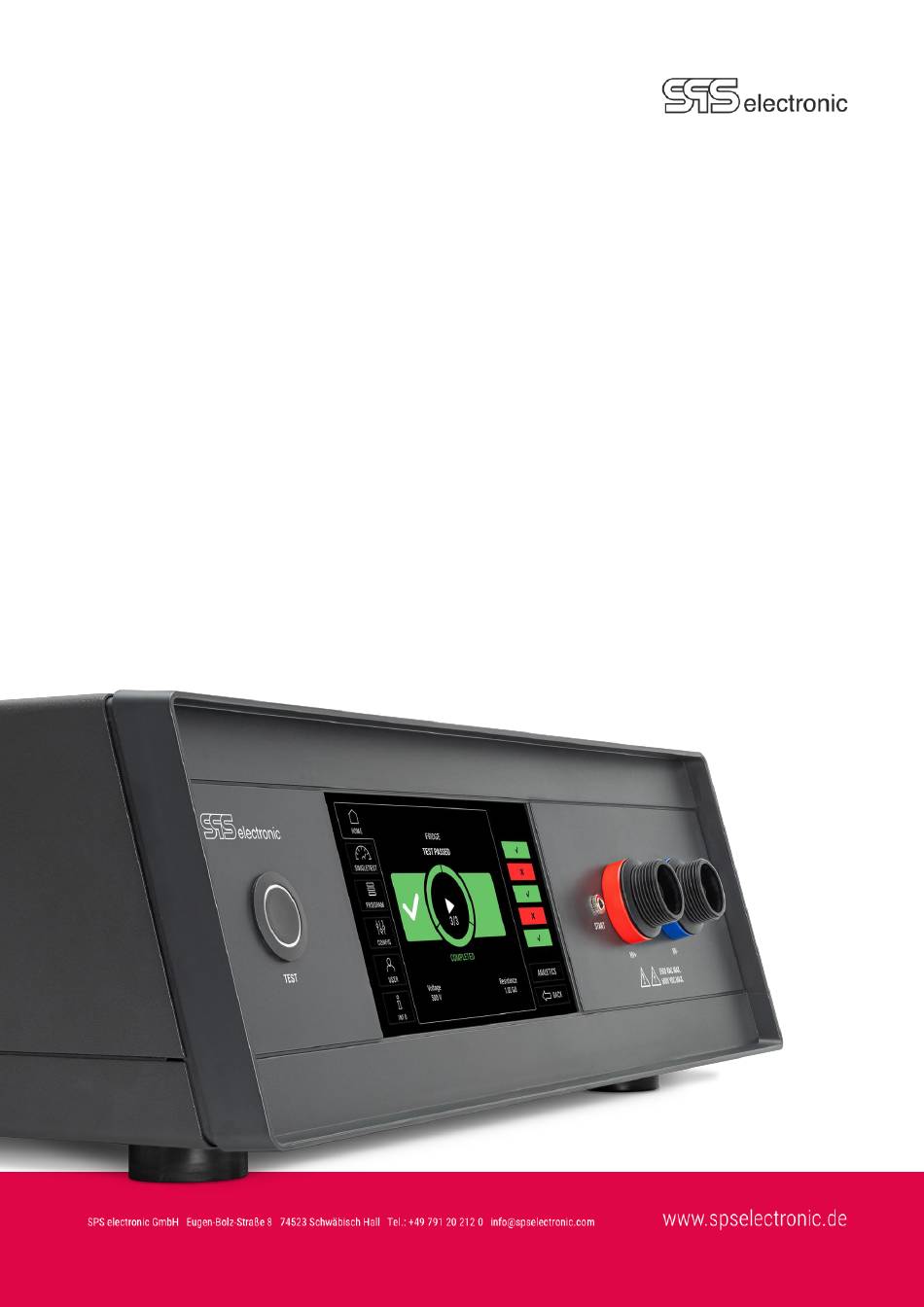

  • Page 1 Manual Hipot Tester HA 6600H, HA 6680U Update status: 06.2025...
  • Page 3 5.4 Reviewing Test results ....................20 6 Creation of test programs _________________________________________ 21 6.1 General information ....................21 6.2 Managing of test programs ..................21 6.3 Editing of a test program ................... 23 hipot tester HA 6600H / HA 6680U – 3 –...
  • Page 4 Annex ____________________________________________________________ 30 Interface Configuration ..................... 30 External I/O Interface "SIGNAL IO" ................ 30 Connector for external protective circuit EXT.SK ........... 31 USB devices, and "Testing with High Voltage" ............32 – 4 – hipot tester HA 6600H / HA 6680U...
  • Page 5 General Information 1.1 Information on this operating manual This operating manual is part of the technical documentation for the hipot safety testers HA 6600H / HA 6680U of SPS electronic GmbH. This operating manual contains all the information on how to operate this device properly, safely and economically, how to prevent dangerous situations, how to reduce repair costs and downtimes and how to prolong the service life of these devices.
  • Page 6  use of components, tools, additional installations, supplements and working material which have not been approved or recommended by SPS electronic GmbH  building in of spare parts which are not original SPS electronic GmbH spare parts or of spare parts from suppliers not recommended by SPS electronic GmbH 1.2.2 Product liability...
  • Page 7  Instructions on operations with or at a machine or installation as to hazards to health and/or life of persons are obligatory.  Persons who operate with or at an HA 6600H / HA 6680U have to confirm by their signature to have read and comprehended this operating manual especially in regard to the operating instructions.
  • Page 8 1 General Information 1.3.3 Safety installations The HA 6600H / HA 6680U testers are, for the safety of the operating personnel, equipped with below safety equipment:  Differential current safety cutoff (similar to an RCD) for Insulation and Hipot test (tripping threshold at >...
  • Page 9 2.1 Device functions Description 2.1 Device functions You can perform safety tests at electric devices according to standard test regulations (EN, IEC, VDE etc.) with the hipot tester HA 6600H / HA 6680U. Below tests can be performed: HA 6600H HA 6680U –...
  • Page 10 2 Description 2.2 Technical Data Measurements and weights HA 6600H: ca. 420 / 508 / 148 mm Width / depth / height HA 6680U: ca. 482 / 439 / 133 mm (19" / 3 HE) weight ca. 20.4 kg Ambient operation: 15 °C –...
  • Page 11  7" TFT colour display 1024x600 pixels  Operation with capacitive touch  USB 2.0 interface  Ethernet 10/100/1000 MBit  1GHz 32bit Dual-Core CPU + GPU with 512MByte RAM  1GB internal storage hipot tester HA 6600H / HA 6680U – 11 –...
  • Page 12 HV pistol START 4 Connection sockets HV + , HV – for connection of HV test pistols 5 warning sign – mandatory warning note: beware of high voltage HA 6680U: – 12 – hipot tester HA 6600H / HA 6680U...
  • Page 13 5 LAN interface: Ethernet connection ( ETHERNET 6 Digital I/O interface ( SIGNAL IO HV – HV + 7 4mm laboratory sockets for output of test voltage ( HA 6680U: Rear plate HA 6780U hipot tester HA 6600H / HA 6680U – 13 –...
  • Page 14 Putting into operation 3.1 Requirements The testers HA 6600H / HA 6680U as well as all of the electric connections and lines must be in operational and reliable condition. The General Safety Regulations (pl. see chapter 1.3) and the generally applicable legal...
  • Page 15 – they show the status/results of the past tests that have been done. – Goes back from the current sub-menu to the previous menu, or back to the screen. (9) BACK HOME hipot tester HA 6600H / HA 6680U – 15 –...
  • Page 16 From the program list, select the test program you want to use next, then tap on the button " ". The test TEST program is loaded active, and you’ll be automatically back at the " " screen to start with testing. HOME – 16 – hipot tester HA 6600H / HA 6680U...
  • Page 17 In the manual test mode you can now either - immediately start the next test with START key, - examine the measuring values of the test process (pl. see chpt.5.4, p.20) hipot tester HA 6600H / HA 6680U – 17 –...
  • Page 18 - below the test wheel, the actual test values and measurements are displayed. E.g. Hipot test AC: HPAC Highpot AC Voltage Current 3000 V 2.73mA E.g. Insulation resistance test: IR Insulation resistance Voltage Resistance Current 1000 V 3.93 GOhm 254.75 µA – 18 – hipot tester HA 6600H / HA 6680U...
  • Page 19 When a test run has finished with result PASS, or if any test step did FAIL, this result is immediately shown with a green resp. red background sign. E.g. test result PASS: E.g. test result FAIL: HPAC Highpot AC Voltage Current 3000 V 12.37 mA hipot tester HA 6600H / HA 6680U – 19 –...
  • Page 20 When a test run has finished and the device is showing the start screen again, the status/result bars on the right side can be used to review the results of the latest test run(s): – 20 – hipot tester HA 6600H / HA 6680U...
  • Page 21 When selecting one of the test programs, there appear the additional options to that program, or to EDIT the program, or to make a (clone) of the program: DELETE COPY hipot tester HA 6600H / HA 6680U – 21 –...
  • Page 22 With this option, a new program is created by duplicating the selected program. After choosing Copy – "Copy", you are prompted to enter a new name for the duplicated program: – 22 – hipot tester HA 6600H / HA 6680U...
  • Page 23 If you select the action "Edit" then the selected test step will be opened for operation. The selected test step is copied to an internal buffer. COPY – The highlighted test step is deleted from the program. DELETE – hipot tester HA 6600H / HA 6680U – 23 –...
  • Page 24 Test starts immediately without query of any safety signal None  Test starts with the Start button on the device front panel (only HA 6600H) Start Button  Test starts with the Start switch of the HV pistol (only HA 6600H) HV pistol ...
  • Page 25 Test starts immediately without query of any safety signal None  Test starts with the Start button on the device front panel (only HA 6600H) Start Button  Test starts with the Start switch of the HV pistol (only HA 6600H) HV pistol ...
  • Page 26 This function is helpful if test items require a certain amount of time due to their design (e.g. capacitive behavior) before stable measurements are obtained. Reckognition of general hardware faults (e.g. short-circuit detection) remains unaffected and still leads to immediate test break. – 26 – hipot tester HA 6600H / HA 6680U...
  • Page 27 Yes continue: If the answer is YES, the test sequence is continued; if NO, it is cancelled with an error No continue: If the answer is NO, the test sequence is continued; if YES, it is cancelled with an error hipot tester HA 6600H / HA 6680U – 27 –...
  • Page 28 Note that the Single Test operation performs just measuring of values and displays them on the screen. There is no test result "Pass" or "Fail", and the measured values are not recorded in any way. – 28 – hipot tester HA 6600H / HA 6680U...
  • Page 29 – when not needed (laboratory use, etc.), the user management system can be completely switched off in CONIG → USERS the tab . In this case all device functions are open to everyone. hipot tester HA 6600H / HA 6680U – 29 –...
  • Page 30 In standalone operation, the input and output signals are fixed and cannot be changed or reconfigured. When remotely controlled with the DAT3810 software, the inputs/outputs can be used freely as desired. hipot tester HA 6600H / HA 6680U – 30 –...
  • Page 31 To close the protective circuit, PINs 1 and 2 have to be short-circuited. PIN 3 and 4 are not assigned. If no external safety loop application is provided, the supplied jumper plug must be connected. As long as this interface is open, no test operation is possible. hipot tester HA 6600H / HA 6680U – 31 –...
  • Page 32 - it is recommended to use well-shielded USB cables with ferrite-core coil. (On its own this is won't eliminate the possibility of errors, but it generally reduces sensitivity against stray fields, and makes occurance of errors less likely.) – 32 – hipot tester HA 6600H / HA 6680U...
  • Page 33 Geräteart: Hochspannungsprüfgeräte Description of device: Hipot Tester Typ / Type: HA 6600H, HA 6680U EU Richtlinien / EU Directives / Directives EU: EG Maschinenrichtlinie 2006/42/EG mit Änderungen EC Directive for machinery 2006/42/EC with amendments Normes CE machines 2006/42/EC avec amendements...
