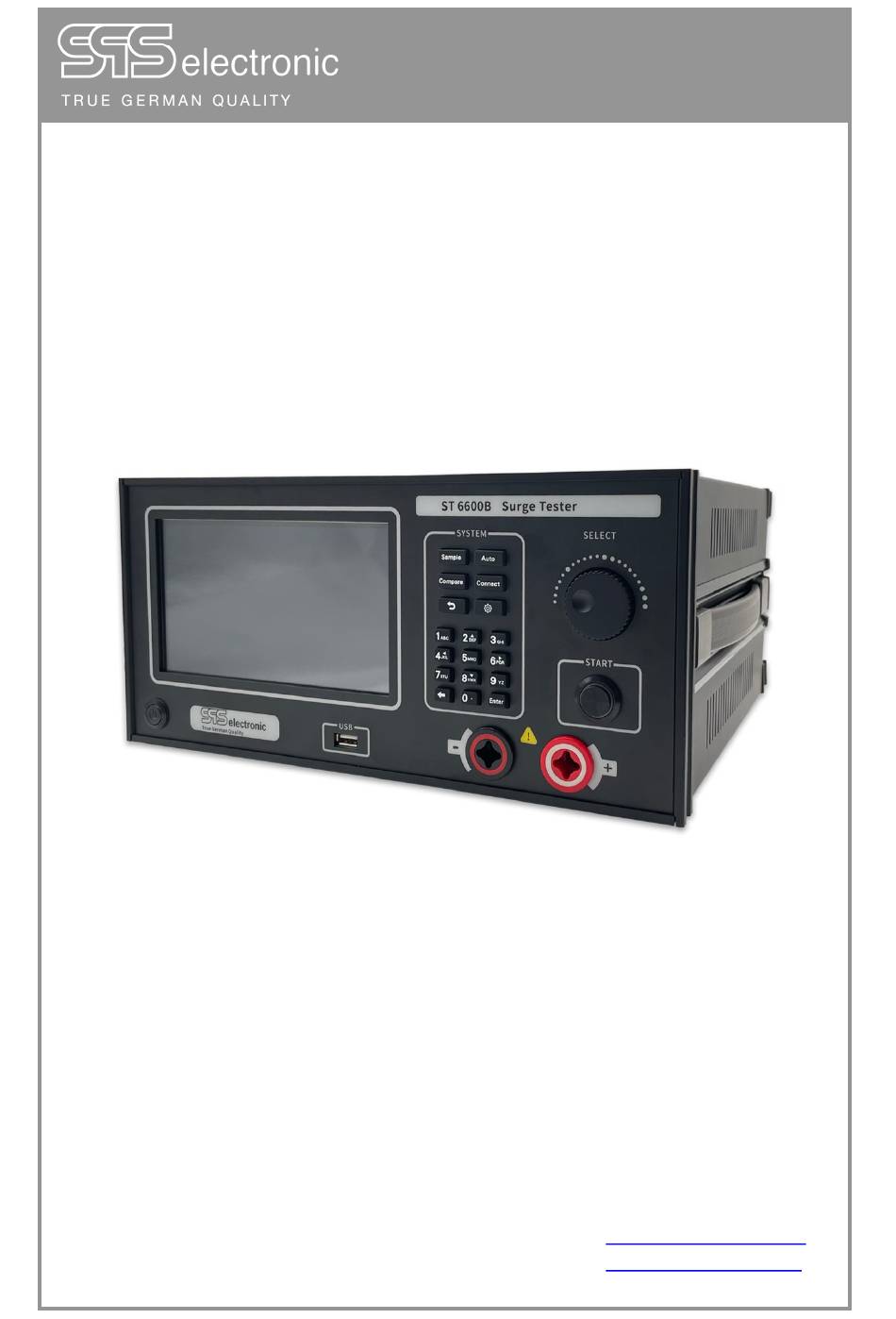

- Page 1 Operating Manual Surge Tester ST 6600B Date: 20.10. 2023 SPS electronic GmbH Eugen-Bolz-Straße 8, 74523 Schwäbisch Hall Telefon: +49 791 20 212 - 0 e-mail: info@spselectronic.com Fax: +49 791 20 212 - 999 Internet: www.spselectronic.com...
-
Page 3: Table Of Contents
Inhaltsverzeichnis Table of Contents 1 General Information ______________________________________________ 5 1.1 Information on this Operation Manual ................5 1.2 Requirements for the operation of this device ............. 6 1.2.1 Regulations for application ..................6 1.2.2 Product liability ......................6 1.3 General Safety Regulations ..................7 1.3.1 Obligations of the operator .................. - Page 4 Inhaltsverzeichnis 5 Workflow and Use _______________________________________________ 43 5.1 Flow diagram ......................43 Annex ____________________________________________________________ 45 USB Devices, and "Testing with High Voltage" ............45 – 4 – ST 6600B...
-
Page 5: General Information
General Information 1.1 Information on this Operation Manual This operating manual is part of the technical documentation for the Surge Tester ST6600B of SPS electronic GmbH. This operating manual contains all the information on how to operate this device properly, safely and economically, how to prevent dangerous situations, how to reduce repair costs and downtimes and how to prolong the service life of these devices. -
Page 6: Requirements For The Operation Of This Device
use of components, tools, additional installations, supplements and working material which have not been approved or recommended by SPS electronic GmbH building in of spare parts which are not original SPS electronic GmbH spare parts or of spare parts from suppliers not recommended by SPS electronic GmbH 1.2.2 Product liability... -
Page 7: General Safety Regulations
1.3 General Safety Regulations 1.3 General Safety Regulations The surge tester ST6600 has been manufactured according to the state of the art at the time of its delivery. Nevertheless the tester is not without hazards if it is applied by untrained personnel, applied improperly or not applied according to regulations In addition to this operating manual the generally applicable legal regulations and other binding instructions concerning safety regulations, regulations for preventing accidents and regulations... -
Page 8: Note On Possible Disorder Of Usb Devices
1 General Information 1.3.3 Note on possible disorder of USB devices When testing with high-voltage, it is possible that failing testpieces may cause disorder of USB devices in close surrounding of the test field. Please see annex 0 for a problem description, and measures to avoid. 1.3.4 Information on further publications For the protection of persons the trade associations and unions have published below literature: ... -
Page 9: Description
2.1 Technical Data Description 2.1 Technical Data Measurements and weights Width / depth / height ca. 328 / 340 / 167 mm weight ca. 68 N (6,8 kg) Ambient operation: 15 °C – 40 °C temperature storage: 5 °C – 60 °C Air humidity max. -
Page 10: Overview Device Front Panel
2 Description 2.2 Overview Device Front Panel A. Touchscreen Supports mixed display of text and graphics, with a resolution of 800 × 480 pixels, using a resistive touch panel. B. Function Keys Enter the sampling menu to set sampling parameters. Calls up the automatic test function, for automatic determination of the sampling frequency and/or test voltage suitable for the DUT, for determination of the master curve. - Page 11 2.2 Overview Device Front Panel The numeric keys are divided into numeric mode and letter mode according to the different parameter input modes. The numeric input mode can be selected according to the key for entering digits. In letter mode, the numeric key corresponding to the letter must be clicked to enter and then touch the letter or decimal point displayed on the screen to enter.
-
Page 12: Overview Device Rear Panel
2 Description 2.3 Overview Device Rear Panel I: Test lead socket (HV + Out) This test lead socket is identical to the red high voltage connection test lead socket on the front of the instrument. J: Test lead socket (HV – Out) This test lead socket is identical to the black high voltage connection test lead socket on the front of the instrument.. -
Page 13: About The Surge Test
2.4 About the Surge Test 2.4 About the Surge Test The ST 6600 surge tester can be used to test wound goods such as stators, rotors, transformers, etc. for insulation faults and pre-damage. The most significant difference between the surge test and all other EST tests (high voltage tests, insulation tests, etc.) is that there are no fixed thresholds to judge the test results as GOOD or FAIL. -
Page 14: Methods Of Evaluation
2 Description 2.5 Methods of evaluation 2.5.1 AREA Fig. 3: Curve with evaluation of error area Relevant for this method is the area included between a curve and the time axis. The area derived from the actually measured curve is compared to the area of the reference curve, and the percentual deviation is calculated. -
Page 15: Difa
2.5 Methods of evaluation 2.5.2 DIFA Fig. 4: Curves with differential error area This method determines the difference area of master curve and specimen curve, then calculates the ratio of that difference and the area of the master curve. This method is more stringent than the error area method, in that it also evaluates phase shifts caused by winding tolerances. -
Page 16: Glow Discharge - Corona N/S
2 Description 2.5.3 Glow discharge – Corona N/S Fig. 5: Glow discharge This method is mainly used to detect incipient wire insulation weaknesses inside the winding. which manifest by partial discharges, glow discharges (corona), and in extreme cases by arc-overs. By means of a special mathematical procedure, the proportion of "high-frequency energy"... -
Page 17: Inductance Percentage Error - Lpe (Lenz Percentual Error)
2.5 Methods of evaluation 2.5.4 Inductance Percentage Error – LPE (Lenz Percentual Error) In this procedure, the inductance value of the test object is determined and the difference between this value and the inductance of the master coil is set in relation to the master value. The ideal result of this test is as small as possible, i.e. -
Page 18: Putting Int Operation
3 Putting int Operation Putting int Operation 3.1 Requirements The surge tester ST 6600B as well as all of the electric connections and lines must be in operational and reliable condition. The General Safety Regulations (pl. see chapter Fehler! Verweisquelle konnte nicht gefunden werden.) and the generally applicable legal rules as well as other binding directives for industrial safety, for accident prevention and for the protection of the environment have to be adhered to and persons staying in the area of operation must be... -
Page 19: Operation, Functions Of The Device
4.1 Overview Main Screen Operation, Functions of the Device 4.1 Overview Main Screen 1 Parameters of the upper line (a) Voltage range (left, cyan) – shows the range of values for displaying the test voltage. This value is automatically selected slightly larger than the currently set test voltage in order to be able to display the complete surge curve. -
Page 20: Function Keys
4 Operation, Functions of the Device 4 Function keys In the right-hand screen area 6 function keys are displayed, which are used to call up the various functions of the device. Additional function keys may be displayed for extended entries. Ideal-L –... -
Page 21: Function Overview
4.2 Function Overview 4.2 Function Overview From the main screen, the following functions can be accessed: Ideal Inductance, Sample, Test, TPM, Compare and System. Various functions can be entered and follow- up actions can be performed using the touch and click controls on the screen. 4.2.1 "Ideal-L"... -
Page 22: Sample
4 Operation, Functions of the Device 4.2.2 "Sample" After pressing the "Sample" key, the screen shown below appears. This is used to record a new master curve. First, the test voltage, sample speed, and sample-averaging are set when sampling the master curve. The parameters are set using the six function keys on the right of the display: Voltage: Setting the test voltage. -
Page 23: Auto
4.2 Function Overview 4.2.3 "Auto" This function can only be called up via the function key of the mechanical keypad on the right. This function can be used to automatically set the sampling rate so that a suitable, "sensible" range for the sampling rate can be quickly obtained for the type of DUT currently connected. -
Page 24: Test
4 Operation, Functions of the Device 4.2.4 "Test" (a) Before calling the test function, a master curve must have been determined (SAMPLE) or a stored master curve must have been loaded. In the COMPARE menu, at least one comparator – or several – must be activated for evaluation. -
Page 25: Tpm" - Three-Phase Motor Testing
4.2 Function Overview 4.2.5 "TPM" – Three-Phase Motor Testing In this menu you can select T1, T2 or T3 for testing different phases. The tests should be performed in order from top to bottom. The results, either in text or waveform comparison, are displayed in the "Results" section. (a) T1 Sampling First click on the T1 function area, the text in the button will turn white, this shows that T1 capture mode is now active. - Page 26 4 Operation, Functions of the Device (b) T2 Sampling Click the T2 button to enter the T2 acquisition mode. Press the START button to obtain the T2 surge curve. The T2 surge curve is displayed in and the corona discharge in .
- Page 27 4.2 Function Overview (d) Results: Comparison and Analysis When the T1, T2 and T3 recordings are completed, click on this step to enter the analysis status. The first display of the analysis result is in text mode. i. Value Text Display Result From left to right, the comparison results between T1↔T2, T2↔T3 and T3↔T1 are shown.
- Page 28 4 Operation, Functions of the Device ii. Waveform Graph Display Result The screen simultaneously displays the shock curves and corona discharges of T1, T2 and T3. T1 is represented by green, T2 by cyan and T3 by magenta. Using the touchscreen cursor or shuttle key, you can view the parameter values of specific points in the waveform.
-
Page 29: Compare
4.2 Function Overview 4.2.6 "Compare" This is where the selection and parameterization of the evaluation procedures that are subsequently to be used in the test module takes place. After pressing the "Compare" key, the screen shown below appears. The parameters are set using the six function keys on the right of the display. AREA, DIFA: Error Area / Differential Error Area STATE: ON/OFF: The respective evaluation can be activated or deactivated by toggling it on or off. - Page 30 4 Operation, Functions of the Device CORON, COROS: Corona discharges number / energy STATE: ON/OFF: The respective evaluation can be activated or deactivated by toggling it on or off. CURSOR-L: sets the left limit of the time interval that is evaluated. The limit can be changed with the rotary wheel.
- Page 31 4.2 Function Overview LPE: Inductivity Comparison (Lenz Percentual Error) STATE: ON/OFF: The LPE evaluation can be activated or deactivated by toggling the state on or off. THR: Setting of the limit value for the max. permitted percentage deviation. The value is set with the rotary wheel.
- Page 32 4 Operation, Functions of the Device CDCP: Partial Discharge Strength STATE: ON/OFF: The CDCP evaluation can be activated or deactivated by toggling the state on or off. THR: Setting of the limit value for the max. allowed size of voltage peaks. The value is set with the rotary wheel.
-
Page 33: System
4.3 System 4.3 System System options include "Memory" for internal storage of master curves, "Connect" for remote control via a network connection, "USB" for saving & loading master curves to external memory, and "Settings" for configuration. 4.3.1 Memory The internal memory of the device has 20 memory slots for master curves. Both the waveform and the associated test parameters of the master curve are saved. -
Page 34: Connect
4 Operation, Functions of the Device 4.3.2 Connect This menu allows setting the RS232 and TCP/IP connection parameters. All changes of the connection parameters are recorded in the internal memory, the settings are retained even after a restart or switching the device off and on again. -
Page 35: Usb
4.3 System 4.3.3 USB With the USB memory function, master curves can be saved, loaded and deleted. In addition, automatic storage of surge curves measured during testing can be activated. All types of curve data are saved in CSV format. Data format of master curves Curve Format of Data in CSV... - Page 36 4 Operation, Functions of the Device Data format of measured curves (1-phase) Curve Format of Data in CSV Explanation test curve vvvv,vvv.vvu,vvv.vvu, v(value): Sampling voltage v(value)/u(unit): Sampling rate v(value)/u(unit): Test inductance a,lll,rrr,aa.a,aa.a, a(0/1): Area sum enable status l(AREA-L): Area sum start position r(AREA-R): Area sum end position a(AREA-THR): Area sum threshold a(AREA-RES): Area sum result value...
- Page 37 4.3 System Data format of measured TPM-curves (3-phase) Curve Format of Data in CSV Explanation TPM-curves vvvv,vvv.vvu,vvv.vvu, v(value): Sampling voltage v(value)/u(unit): Sampling rate v(value)/u(unit): Test inductance a,lll,rrr,aa.a,aa.a, a(0/1): Area sum enable status l(AREA-L): Area sum start position r(AREA-R): Area sum end position a(AREA-THR): Area sum threshold a(AREA-RES): Area sum result value f,lll,rrr,ff.ff,ff.f,...
- Page 38 4 Operation, Functions of the Device Saving of Master Curves Call up the "Sample" item in the USB menu to manage master curves. You can manually save, load and delete the files in the _SAMPLE folder. The saved content includes the curve data and parameter information in CSV file format.
-
Page 39: Settings
4.4 Settings 4.4 Settings In the "Settings" menu, you can switch the buzzer on or off, perform an automatic voltage calibration, or reset the device to the factory settings. Buzzer The buzzer can be switched ON or switched OFF. When the buzzer is ON, a 50 ms short beep sounds during PASS tests and a 500 ms long beep sounds during FAIL tests. - Page 40 4 Operation, Functions of the Device Save CAL This function can be used to manually save the calibration data currently stored in the device to the USB medium, e.g. if no USB medium was connected during the last calibration. If the _CAL folder already contains the same file, the file will be overwritten for updating.
- Page 41 4.4 Settings Factory Restore the factory settings. All device parameters are reset to the default settings. The default parameter values are listed in the following table. After completing the factory settings, the system restarts and reloads the parameters. ST 6600B –...
-
Page 42: Standard Values Of Factory Settings
4 Operation, Functions of the Device 4.4.1 Standard Values of Factory Settings Kategorie Unterkategorie Parameter Standardwert Ideal-L –– Ideal-L 10 µH Sample –– Voltage 200 V Sample –– 250 ns Compare AREA State Compare AREA Cursor-L Compare AREA Cursor-R Compare AREA 5.00% Compare... -
Page 43: Flow Diagram
5.1 Flow diagram Workflow and Use 5.1 Flow diagram 1. Start the device, the main screen appears. 2. [COMPARE] Set the desired comparison parameters & comparators. 3. [AUTO] Connect the reference specimen (master), enter the Auto mode, automatically acquire the surge curve. - Page 44 5 Workflow and Use – 44 – ST 6600B...
- Page 45 Annex Annex USB Devices, and "Testing with High Voltage" - During tests with high voltage, high-frequency interference frequencies can occur for short periods of time if the current DUT is faulty (because the test voltage "bleeds through" or "jumps over" at the weak point of the DUT);...
- Page 46 Annex – 46 – ST 6600B...
- Page 47 EU-Konformitätserklärung EU Declaration of Conformity Wir / we : SPS electronic GmbH The Electrical Safety Test Company Eugen-Bolz-Straße 8 D-74523 Schwäbisch Hall erklären hiermit, dass das nachfolgend genannte Gerät den einschlägigen grundlegenden Sicherheitsforderungen der EU-Richtlinien entspricht. declare, that the following unit complies with all essential safety requirements of the EU Directives.
