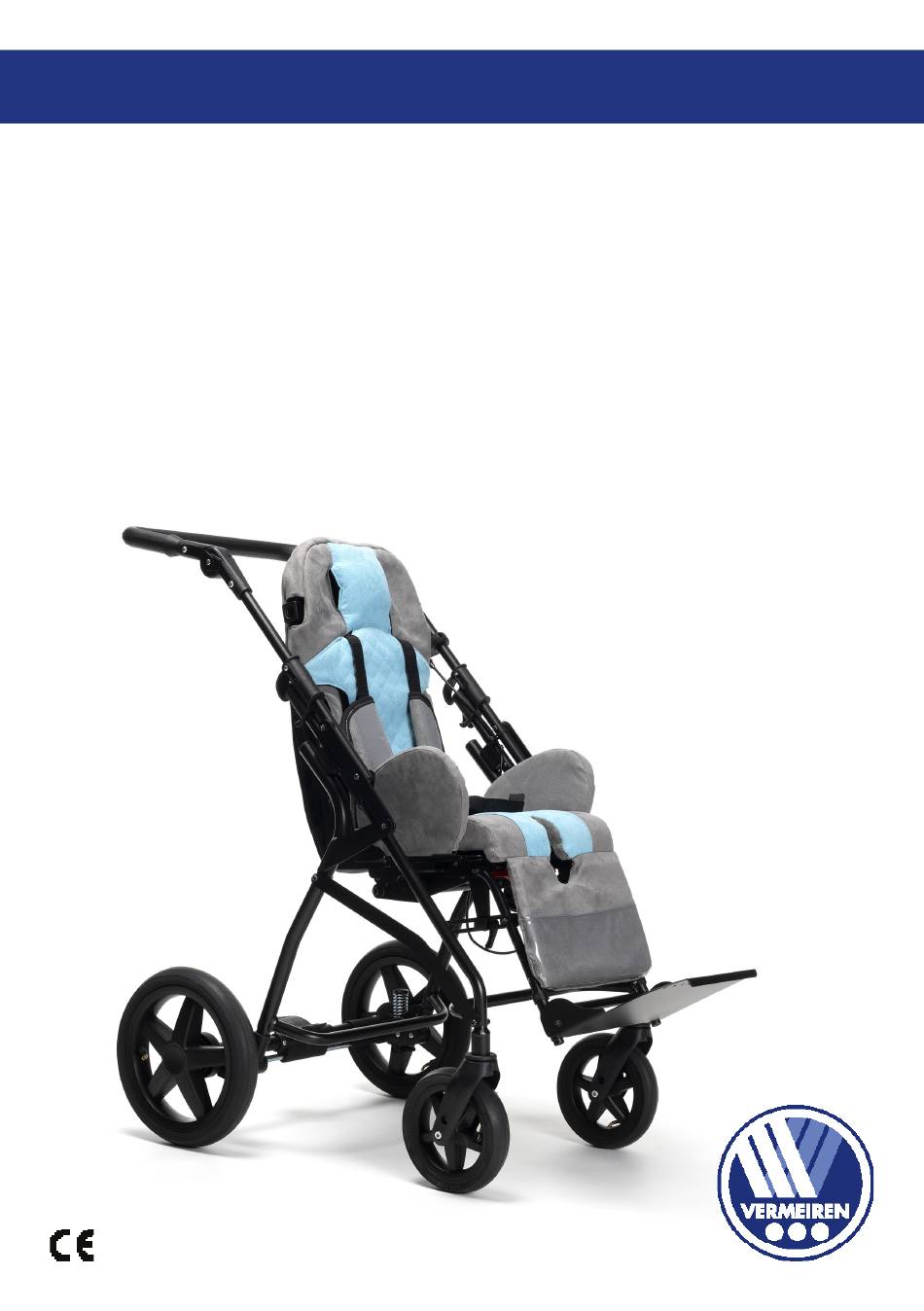

User manual
M A N U E L D ' U T I L I S A T I O N
G E B R U I K S A A N W I J Z I N G
G E B R A U C H S A N W E I S U N G
M A N U A L E D I I S T R U Z I O N I
M A N U A L D E I N S T R U C C I O N E S
I N S T R U K C J A O B S Ł U G I
N Á V O D K O B S L U Z E
Gemini 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gemini 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Vermeiren Gemini 2

Summary of Contents for Vermeiren Gemini 2

  • Page 1 M A N U A L D E I N S T R U C C I O N E S I N S T R U K C J A O B S Ł U G I N Á V O D K O B S L U Z E Gemini 2...
  • Page 3 Operating the brakes 3.2. Moving to/from the wheelchair 3.3. Comfort adjustments 3.4. Riding the wheelchair Maintenance 4.1. Points of maintenance 4.2. Maintenance instructions 4.3. Troubleshooting 4.4. Expected lifespan 4.5. Reuse 4.6. End of use 4.7. Warranty Technical specifications User manual | 2025-06 Gemini 2...
  • Page 4 Vermeiren. Thank you for your trust in the products of Vermeiren. To support you on the use of this wheelchair and its operating options, this manual is offered. Please read it carefully; it will help you to get familiar with the operation, capabilities and limitations of your wheelchair.
  • Page 5 User manual For user and specialist dealer Installation instructions For specialist dealer Service manual for wheelchairs For specialist dealer EC declaration of conformity User manual | 2025-06 Gemini 2...
  • Page 6 1. Your product 1. Push bar 2. Backrest 3. Safety belt 4. Seat 5. Leg rest 6. Footplate 7. Steering wheels (front wheels) 8. Driving wheels (rear wheels) 9. Brakes 10. Frame 11. Identification plate 1.1. Options Contact your specialist dealer about options. He will gladly advise you. User manual | 2025-06 Gemini 2...
  • Page 7 Keep the following general warnings in mind during use: • As the attendant, do not operate the wheelchair if you are under influence of alcohol, medicines or other substances that may influence your riding abilities. User manual | 2025-06 Gemini 2...
  • Page 8 Member State in which the user and/or patient is established. 2.3. Symbols on the wheelchair Type designation Catalogue number Serial number Medical device Manufacturer Date of manufacture Declaration of conformity User manual | 2025-06 Gemini 2...
  • Page 9 2.4.2. Transport by vehicle, as luggage WARNING Risk of injuries • Do NOT use your wheelchair as a seat in a vehicle, see the following symbol. • Make sure that the wheelchair is attached properly to avoid injury from the passengers during collision or sudden braking. • NEVER use the same seatbelt to secure the wheelchair and passenger. User manual | 2025-06 Gemini 2...
  • Page 10 6. Let the frame rest on the rear wheels and frame tube. Now the frame can be folded completely. 7. Turn the push bar downwards, see §3.3.9.. 8. If necessary, take off accessories from the seat and fold the backrest down (4). User manual | 2025-06 Gemini 2...
  • Page 11 9. Make sure that the seat has been attached properly to the lower frame. 10. Adjust the seat for the comfort of your child and install any accessories that had been removed for transport (see §3.3.). * The seat of Gemini 2 can be installed with your child facing forwards or facing towards you as you push. The same instructions apply for both options. User manual | 2025-06 Gemini 2...
  • Page 12 It is also possible not to remove the seat and fold the Gemini 2. Be aware that you should first remove all the accessories and supports before completely folding the backrest to the front. 2.6. Placing the reflective stickers (optional) White User manual | 2025-06 Gemini 2...
  • Page 13 The brakes are not used to slow down the wheelchair during movements. Use the brake only to prevent the wheelchair from unintended movements. • Good operation of the brakes is influenced by wear and contamination of the tires (water, oil, mud, ...). Check the condition of the tires before each use. • The brakes are adjustable and can wear. Check the operation of the brakes before each use. • Make sure the wheelchair is on a flat horizontal surface before releasing the brakes. Never release both brakes simultaneously. User manual | 2025-06 Gemini 2...
  • Page 14 • Sit down on the seat with your lower back against the backrest. • Make sure that your upper legs are horizontal and that your feet are in a comfortable position. Adjust if necessary. User manual | 2025-06 Gemini 2...
  • Page 15 2. Push or pull the backrest tubes in the desired position (from folded position for easy transport, to lying down position: 0° - 45°). The backrest automatically stops when it reaches the maximum inclination. 3. Retighten the lever (4). 4. Check that the backrest is well fixated. User manual | 2025-06 Gemini 2...
  • Page 16 1. Loosen the two wing nuts on the back of the backrest. Move the upper part (headrest) (7) the backrest upwards or downwards until the desired backrest height. 3. Retighten the two screws and wing nuts (6) firmly by hand. User manual | 2025-06 Gemini 2...
  • Page 17 The angle of the foot supports (10) can be adjusted in several positions (Seat width 32: 5 positions, steps of 10° – Seat width 40: 4 positions, steps of 8,5°) 1. Loosen the wing nuts (11) on het bottom of the footplate. 2. Turn the foot supports (10) in the desired position. 3. Retighten the wing nuts (11). 4. Make sure that the foot supports are firmly fixated. User manual | 2025-06 Gemini 2...
  • Page 18 Move the head pelot (13) up or down until the desired height (stepless, range 30 mm). 3. Retighten the two knurled knobs (12). 4. Check that the pelot (13) is well fixated. 5. Repeat these instructions for the other pelot (13). User manual | 2025-06 Gemini 2...
  • Page 19 Move the head pelot (15) to the front or back until the desired depth (stepless, range 22,5 mm). 3. Retighten the knurled knobs (14). 4. Check that the pelot (15) is well fixated. 5. Repeat these instructions for the other pelot. User manual | 2025-06 Gemini 2...
  • Page 20 (19). It can easily be removed by loosening/tightening the wing nuts (19). The abduction wedge can be moved forward/backward over a distance of 115 3.3.9. Push bar position Simultaneously push both buttons (20) the clamp of the pushbar and move to the desired position. Releasing the buttons (20) on the clamp will automatically lock the pushbar in the desired position. User manual | 2025-06 Gemini 2...
  • Page 21 – the tires are in good condition, see §4.2.1.. 3.4.1. Pushing the wheelchair The wheelchair can only be operated by an attendant: 1. Take hold of the push bar. 2. Release the brakes. 3. Push the wheelchair. 4. For seat width 40: Use the tipping aid on the lower frame to overcome obstacles. User manual | 2025-06 Gemini 2...
  • Page 22 Risk of injuries and damage • Repairs and replacements may only be undertaken by trained persons and only genuine replacement parts of Vermeiren should be used. The last page of this manual contains a registration form for the specialist dealer to record each service. The service frequency depends on the frequency and intensity of use.
  • Page 23 Proper working of the brakes depends on the state of the tyres, and can change due to wear and contamination (water, oil, mud, ...). Keep your wheels free of wires, hair, sand and fibres. Check the profile of the tyres. If the tread depth is less than 1 mm, the tyres need to be replaced. Contact your specialist dealer for this matter. Inflate each pneumatic tyre to the correct pressure (see pressure indication on the tyres). 4.2.2. Cleaning CAUTION Risk of damage by moisture • Never use a hose or high-pressure cleaner to clean the wheelchair. Wipe all rigid parts with a damp cloth (not drenched). If necessary, use a mild soap, suitable for varnishes and synthetics. User manual | 2025-06 Gemini 2...
  • Page 24 The following symptoms may indicate a serious problem. Therefore always contact your specialist dealer if you spot any of the following deviations: • Strange sound; • Uneven tread wear on one of the tyres; • Jerky movements; • Wheelchair deflects to one side; • Damaged or broken wheel assemblies. 4.4. Expected lifespan The wheelchair is designed to have an average lifespan of 5 years. Depending on the frequency of use, driving circumstances and maintenance, the lifespan of your wheelchair will increase or decrease. User manual | 2025-06 Gemini 2...
  • Page 25 The technical details below are only valid for this wheelchair, at standard settings and optimal ambient conditions. Take these details into account during use. The values are no longer applicable if your chair has been modified, damaged, or is severely worn. Brand Vermeiren Product group Manual wheelchair Type Gemini 2 Description Dimensions Seat width 32 Seat width 40 Maximum user weight 35 kg 50 kg Overall length 950 mm...
  • Page 26 Brand Vermeiren Product group Manual wheelchair Type Gemini 2 Description Dimensions Seat width 32 Seat width 40 Mass of removable parts Seat 7,2 kg 13,55 kg Lower frame 10,8 kg 13,45 kg Static stability downhill 10° Static stability uphill 10° Static stability sideways 10°...
  • Page 27 By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date: Date: User manual | 2025-06 Gemini 2...
  • Page 28 VERMEIREN GROUP Vermeirenplein 1/15 2920 Kalmthout Belgium www.vermeiren.com Version: F, 2025-06 Basic UDI-DI: 5415174122103Gemini29D All rights reserved, including translation.
