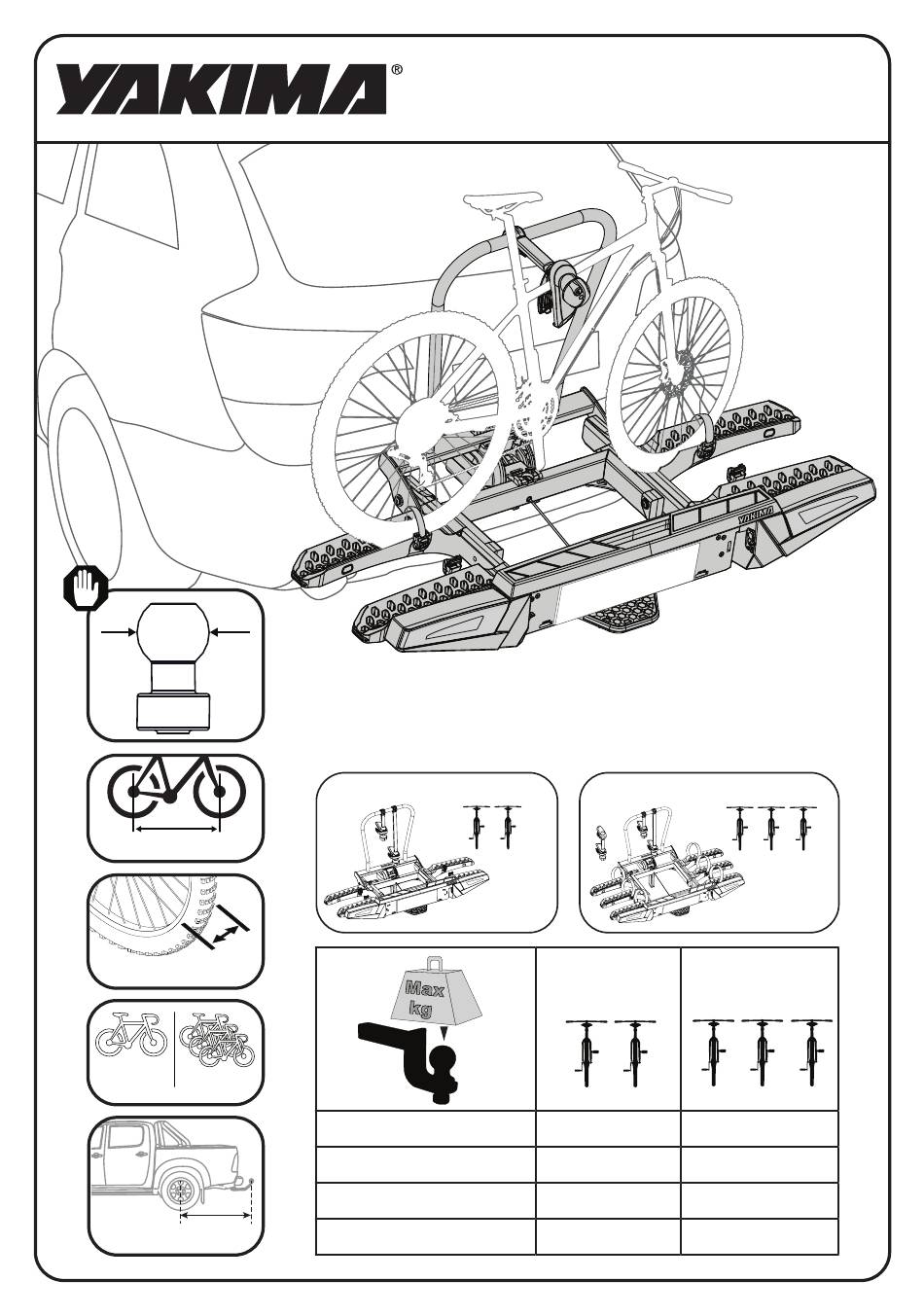

50 mm
MAX 1250 mm
MAX 100 mm (4")
MAX 30 kg MAX 60 kg
MAX 1.8 m
6100014189_9812160_9812161_ Rev1.0
FoldClick EVO 2
FoldClick EVO 3
FoldClick EVO 2
=
16.6 kg
FoldClick EVO
50 kg
60 kg
70 kg
80 kg
FoldClick EVO 3
=
FoldClick EVO
2
33.4 kg
31 kg
43.4 kg
41 kg
53.4 kg
51 kg
60 kg
60 kg
19 kg
3
1/16
Advertisement
Related Manuals for Yakima FoldClick EVO 2
Summary of Contents for Yakima FoldClick EVO 2
- Page 1 FoldClick EVO 2 FoldClick EVO 3 50 mm FoldClick EVO 2 FoldClick EVO 3 MAX 1250 mm 16.6 kg 19 kg FoldClick EVO FoldClick EVO MAX 100 mm (4”) MAX 30 kg MAX 60 kg 50 kg 33.4 kg 31 kg 60 kg 43.4 kg...
- Page 2 KIT CONTENTS ITEM COMPONENT FoldClick EVO 2 FoldClick EVO 3 FoldClick EVO Bike Assembly Bike Frame Grabs Tow Ball 50 mm Number Plate Fasteners Number Plate Spacer Bike Carrier Key Set NOTE - FoldClick EVO 3 pictured for illustrative purposes 6100014189_9812160_9812161_ Rev1.0...
- Page 3 COMPATIBLE TOW BALLS ≥ 50 mm ≤ 75 mm Height from base to center of ball to be 50 mm+ Tongue width less than 75 mm ≥ 65 mm > 75 mm Height from base to center of ball to be 65 mm+ Tongue width greater than 75 mm ≥...
- Page 4 INSTALLATION INSTALL SUPPLIED TOW BALL. PLACE FOLDER CARRIER ONTO TOW BALL. Install supplied tow ball to your hitch receiver. Ensure the carrier remains folded Tighten to 200 Nm. when placing on tow ball. UNFOLD CARRIER. Hold by the hoop and once vertical the carrier should partially unfold.
- Page 5 LOCK CARRIER. Lock the carrier to tow ball and remove the key. The key cannot be removed in the unlocked position. UNFOLD LIGHTS AND WHEEL TRAYS. Unfold lights and wheel trays until a “click” is heard. NOTE - Press levers to unfold lights 6100014189_9812160_9812161_ Rev1.0 5/16...
- Page 6 ATTACH NUMBER PLATE. Using the supplied number plate spacers and fasteners secure your number plate to the carrier. Number plate spacers must be used to comply with local regulations. CONNECT LIGHT PLUG. Connect carrier light plug to your hitch power supply. 7 Pin Plug 12 V 24 V...
- Page 7 ATTACH FRAME GRABS. Press knob of frame grabs to expand frame holders (1) and attach to carrier hoop (2). Attach frame clamp to your bike frame and rotate knob clockwise to secure (3). MIN 22 mm MAX 80 mm 6100014189_9812160_9812161_ Rev1.0 7/16...
- Page 8 MULTI BIKE CONFIGURATION. Load heaviest bikes first and lock bikes to carrier. FoldClick EVO 2 FoldClick EVO 3 ºC ºF SECURE BIKE WITH WHEEL STRAPS. Secure bikes to carrier using the wheel straps and buckles. 6100014189_9812160_9812161_ Rev1.0 8/16...
- Page 9 ACCESSORIES ClickRamp EVO Part #: 9812121 6100014189_9812160_9812161_ Rev1.0 9/16...
- Page 10 MAINTENANCE Recommended maintenance to be performed at least every 6 months. 6100014189_9812160_9812161_ Rev1.0 10/16...
- Page 11 6100014189_9812160_9812161_ Rev1.0 11/16...
- Page 12 If the vehicle has an electrical hatch or tailgate, switch it off when using the rack. • Do not use any spare parts or accessories other than those provided by Yakima. Using other spare parts and accessories may mean that Yakima will not accept liability for damage that may occur as a result.
- Page 13 REMOVAL UNLOCK CARRIER. Unlock the carrier using the keys provided. DISCONNECT LIGHT PLUG. Disconnect carrier light plug from your hitch power supply. 6100014189_9812160_9812161_ Rev1.0 13/16...
- Page 14 FOLD IN LIGHTS AND WHEEL TRAYS. Fold in lights and wheel trays until a “click” is heard. NOTE - Press levers to fold in lights. FOLD UP CARRIER. Fold up carrier by pulling up on the foot pedal. 6100014189_9812160_9812161_ Rev1.0 14/16...
- Page 15 • Yakima is not responsible for personal injuries and/or damage to property or financial loss caused by the incorrect fitting or use of the rack. •...
- Page 16 YAKIMA AUSTRALIA PTY LTD 17 Hinkler Court Brendale, QLD 4500 Australia 1800 143 548 yakima.com.au/contact-us YAKIMA PRODUCTS, INC. 4101 Kruse Way Lake Oswego, OR 97035-2541 888 925 4621 yakima.com/support ALL CONTENT SUBJECT TO YAKIMA AUSTRALIA PTY LTD COPYRIGHT © 2022 6100014189_9812160_9812161_ Rev1.0 16/16...
