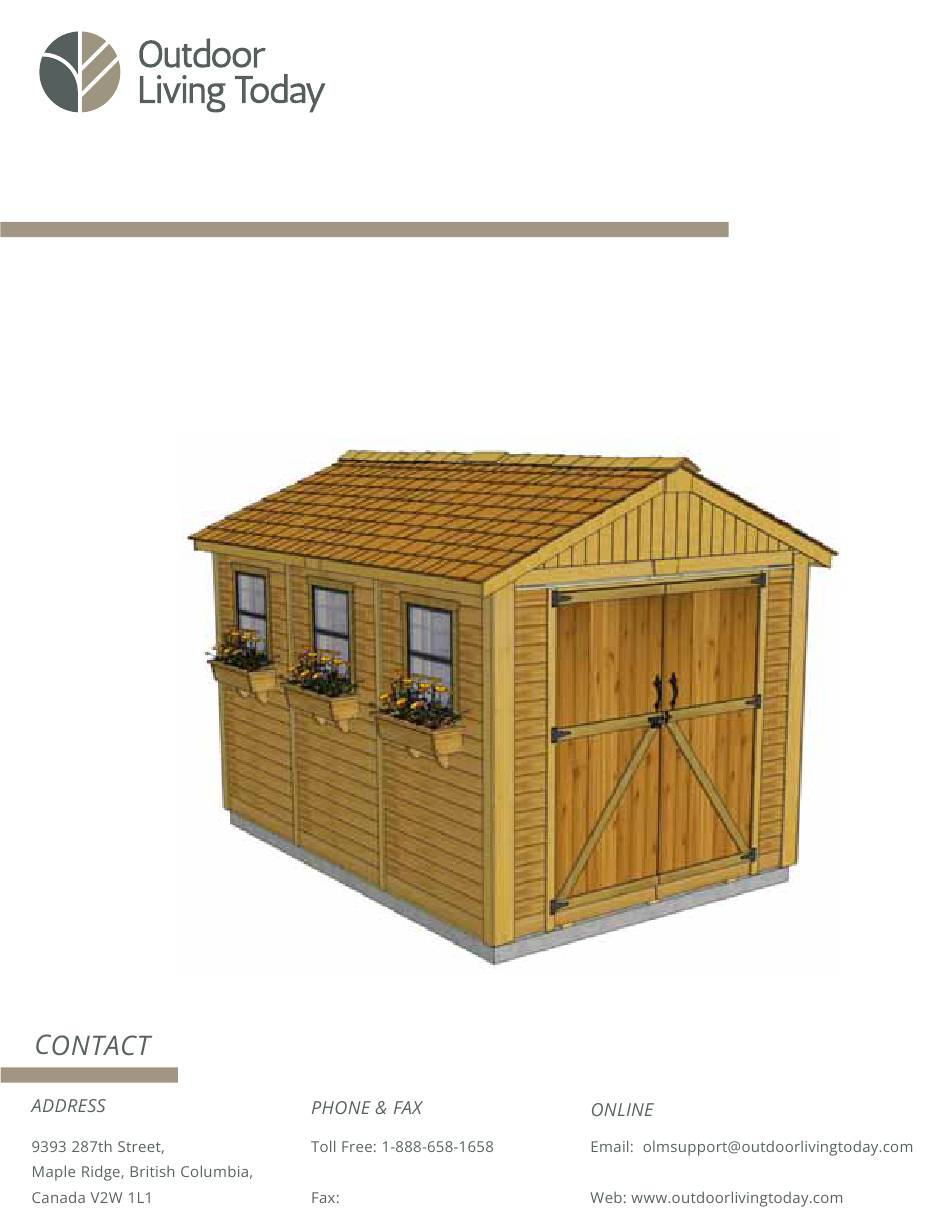

ASSEMBLY MANUAL
8x12 Space Master
Bevel
Stock Code:
SM812-CEDAR
SM812-METAL
SM812-PLY
Version #1.2
April 3, 2025

Advertisement

loading
Need help?

Need help?

Do you have a question about the 8x12 Space Master and is the answer not in the manual?

Questions and answers

Related Manuals for Outdoor living today 8x12 Space Master

Summary of Contents for Outdoor living today 8x12 Space Master

  • Page 1 ASSEMBLY MANUAL 8x12 Space Master Bevel Stock Code: SM812-CEDAR SM812-METAL SM812-PLY Version #1.2 April 3, 2025...
  • Page 2 Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty. Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions. Warranty Customer agrees to hold Outdoor Living Today and any Authorized Dealers free of any liability for improper installation, maintenance and repair.
  • Page 3 You can find the footprint for your shed on Page 3 of your Assembly Manual. If doing the assembly yourself, have all the necessary tools ready to go and in working condition. A list of required tools can be found after the parts list. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 3...
  • Page 4 Foundation Types for 8x12 Garden Shed 96” 96” 136 1/2” 136 1/2” Completed Foundation Concrete Foundation Floor Frame 108” 18 5/8” 148 1/2” Gravel Foundation Gravel Foundation with treated stringers Completed Foundation 108” 25 Patio Stones 148 1/2” Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation Toll Free 1-888-658-1658...
  • Page 5 Thank you for purchasing our 8x12 SpaceMaker Garden Shed. Please take the time to identify all the parts prior to assembly. Step D. Roof Section - METAL Steps Parts List 16 - 3/4” x 3 1/2” x 49 1/4” Roof Batten (Outside) 12 - 3/4”...
  • Page 6 8 x 12 SPACE MASTER HARDWARE SHEET Hardware Kit - BASE KIT Provided) x 244 1 1/4” 2 1/2” x 310 x 187 2” 3/4” x 20 Square Drive Bit x 23 3/4” 90° Metal Brackets x 8 Double Rafter Bracket x 4 x 39 2”...
  • Page 7 Tools Required (Not Provided) Screw Gun/Drill Tape Measure Wood Clamp 3/8” Wrench Hammer 1/8” & 3/8” Drill Bits Pliers Utility Knife Level Ladder Safety Equipment Required (Not Provided) Safety Glasses Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 7...
  • Page 8 Regular Maintenance & Tips to Prolong the Life of Your Shed. Small gap between bevel siding and window trim Dab of caulking Wall Panel Floor Plywood Floor Joists Foundation Strip of roofing paper Floor Runner over apex of roof panels Sill Gasket Toll Free 1-888-658-1658 www.outdoorlivingtoday.com...
  • Page 9 A. Floor Section Exploded view of all parts necessary to complete Floor Section. Identify all parts prior to starting.Note: Floor Footprint is 136 1/2” wide x 96” deep. Plywood Floor Large (3) Plywood Floor Small (3) Floor Joist Frames Small (3) Floor Runners (10) Floor Joist Frames...
  • Page 10 find Square Drive Bit for the screws in with the Hardware Kit Bag. 96” 136 1/2” Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 10...
  • Page 11 Foundations Note: The floor will be flipped over and the floor runners will sit on your foundation. It is important to note, that having a level foundation is critical. Choosing a foundation will vary between regions. Typical foundations can be con- Centered on crete pads or patio stones positioned Floor frame.
  • Page 12 Important - Make sure floor is level before moving on to wall section. Use a level to confirm, and shim floor joists as required. push plywood together at seams. Hint: Use a chalk line to mark location of floor joists to determine screw placement.
  • Page 13 B. Wall Section Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to starting. Front and Rear Top Plates (6) (4 Angle cut on one end and 2 square cut.) Door Header - Gable Walls (4) Long (1) Side Top Plates (4) (Angle cut on edge)
  • Page 14 Important: Pilot hole ALL 2x3 Wall Studs with 1/8” drill bit prior Pilot Hole to screwing. This will make it first. much easier to attach together. Bottom Wall Plate 1st Side Wall Panel 1/2” overhang 1st Side Wall Panel Flush with Floor Framing Do Not Attach Walls To Floor Until Step 23...
  • Page 15 Do Not Attach Walls To Floor Until Step 23. Pilot Hole first. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 15...
  • Page 16 Pilot Hole first. Pilot Hole first. Side Wall Panel will sit flush with Floor framing at Front of Shed. Pilot Hole first. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 16...
  • Page 17 Flush to tip of Bevel. Flush with Narrow Wall stud on inside. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 17...
  • Page 18 Pilot Hole Pilot Hole first. first. Notch to front and on top. Sits flush with inside of Wall framing. Notch to front and on top. Pilot Hole first. Make sure joints are tight. Push Walls in if required. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 18...
  • Page 19 Advice: Prior to fastening walls and installing rafters, take time to confirm your walls are level, square and plumb. Measure diagonal at top and bottom of walls corner-to-corner. This should be approximately 159 7/8”. More importantly, if measurements are not within 1/4”, your walls are not square. Adjusting now will make it easier to install roof section Pilot Hole first.
  • Page 20 Male / Female Gable Siding Overlap. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 20...
  • Page 21 Use a straight edge to check that angle of Gable lines up with Top Wall Plate angle. Adjust Gable for best fit. Flashing overhangs on outside. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 21...
  • Page 22 C. Rafter Section Exploded view of all parts necessary to complete the Roof Section. Identify all parts prior to starting. Ridge Boards (4) 52 1/2” and 84” long Soffits (4) Roof Rafters (9 per side) 18 total Metal Ridge Board Roof Gussets (3) Connectors (2) Rafter Brackets...
  • Page 23 Doubled up Rafters - screw together with 3 - 2 1/2” Screws. Ridge Board Soffits Important: Pilot Hole Ridge Board to prevent splitting! 136 1/2” 20 1/2” 20 1/2” Connector Plate to inside 45 1/2” 45 1/2” 45 1/2” 68 1/4” Important: Pilot Hole Soffit...
  • Page 24 Rafter should rest on gable framing. Gable Notch Soffit should sit approx. 1/8” away from wall panel. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 24...
  • Page 25 Offsetting Metal Ridge Gable Notch Board Connectors. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 25...
  • Page 26 1 1/4” Screw 1 1/4” Screw 2” Screw 2” Screw 2” Screws 2” Screws Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 26...
  • Page 27 D. Roof Section - Cedar Exploded view of all parts necessary to complete the Roof Section. Identify all parts prior to starting. (Roof Filler Shingles Missing) Filler Shingles Middle Roof Outside Roof Panels (2) Panels (4) Exploded view of upside down roof panels. Outside Roof Panel.
  • Page 28 Roof Plywood recessed 1/8” from Rafter end. Angle Screw from 2 1/2” Screw in Bottom Rafter into Plywood Row of Shingles. with 2 1/2” Screw. Shingles overhang plywood on Outside Roof Panel. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 28...
  • Page 29 Outside Panel Middle Panel Outside Panel Attach above the exposure line. Exposure Line Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 29...
  • Page 30 4 - 90° Metal Brackets per Gable. 3 - 2 1/2” Screws angled into each Mid Rafter. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 30...
  • Page 31 Alternate Ridge Cap seams Thin end (Offsetting angle cut at peak) Thick end Important: Butt (thick) end of Ridge Cap will be facing towards the outside of shed. 8” Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 31...
  • Page 32 D. Roof Section - Metal Exploded view of all parts necessary to complete the Roof Section. Identify all parts prior to starting. Metal Ridge Caps (3) Metal Roof Panels (8) Foam Enclosures (Several) Batten Spacers (12) Roof Battens Middle 45 1/2” (8) Roof Battens Outside 49 1/4”...
  • Page 33 Batten Spacers Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 33...
  • Page 34 Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 34...
  • Page 35 Overlap Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 35...
  • Page 36 Bead of Caulking Important: Metal Roof Hangers will be removed in Step D12. Important: Remove Metal Roof Hangers. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 36...
  • Page 37 Screw into peak of Metal Roof Panel Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 37...
  • Page 38 1-2” of overhang Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 38...
  • Page 39 D. Roof Section - Plywood Exploded view of all parts necessary to complete the Roof Section. Identify all parts prior to starting. Roof Plywood Large (4) Roof Plywood Small (4) Exploded view of upside down roof panels. Large plywood roof panels Large Roof Panel.
  • Page 40 Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 40...
  • Page 41 Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 41...
  • Page 42 Important: Plywood roof panels must be covered with water proof roof- ing paper or equivalent material now. Roofing paper and roofing material is not supplied in this kit.Leaving plywood roof panels unprotected will result in water damage to the shed as well as delamination of the plywood.
  • Page 43 Thicker at Butt Flush to bottom of wall siding. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 43...
  • Page 44 Corner Trim tight underneath Soffit. Wide Corner Trim Corner Trim Align bottoms of both corner trim pieces flush. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 44...
  • Page 45 Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 45...
  • Page 46 Drip Cap rests in notch of Door Header. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 46...
  • Page 47 Align with bottom of Horizontal Gable Trim. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 47...
  • Page 48 Flush with Fit Door Trim Door Jamb. tight underneath Drip Cap. Horizontal Narrow Wall Trim dado (notch) comes together with protruding edge of Door Header. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 48...
  • Page 49 Angled Facia caps Square Cut Facia. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 49...
  • Page 50 Pentagon Facia Detail Plate Facia Detail Plate Horizontal Gable Detail Plate Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 50...
  • Page 51 Note: illustration of Hinge may not be accurate. The # of screw holes in the hinge may vary from three to four depending on model. Attach Black Tee Hinges with 3/4” & 2” Black hardware provided 2“ Screws 3/4” Screw 3/8”...
  • Page 52 Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 52...
  • Page 53 Inside Edge of Door Frame Drill 1/2” Diameter Hole to accommodate rod of Cane Bolt. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 53...
  • Page 54 Window frame. Caulk gap. Screw insert into bottom (thick) part of siding. Caulk gap. Trim dado sits in flange. Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 54...
  • Page 55 Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 55...
  • Page 56 Outdoor Living Today Flower Box Assembly Instructions Exploded Side Trims (D) View Front Trim (C) End Caps (B) 1 1/4” Parts Lists: Nails (G) A - Base, Rear & Front Box Frames (3pcs) 3/4” x 5 1/2” x 23” B - End Cap Frames (2pcs) 3/4”...
  • Page 57 Congratulations on assembling your 8x12 Space Master! Note: Our Sheds are shipped as an unfinished product. If exposed to the elements, the lumber will weather to a silvery-gray color. If you prefer to keep the lumber looking closer to the original color, we suggest that you treat the wood with a good oil base wood stain.
