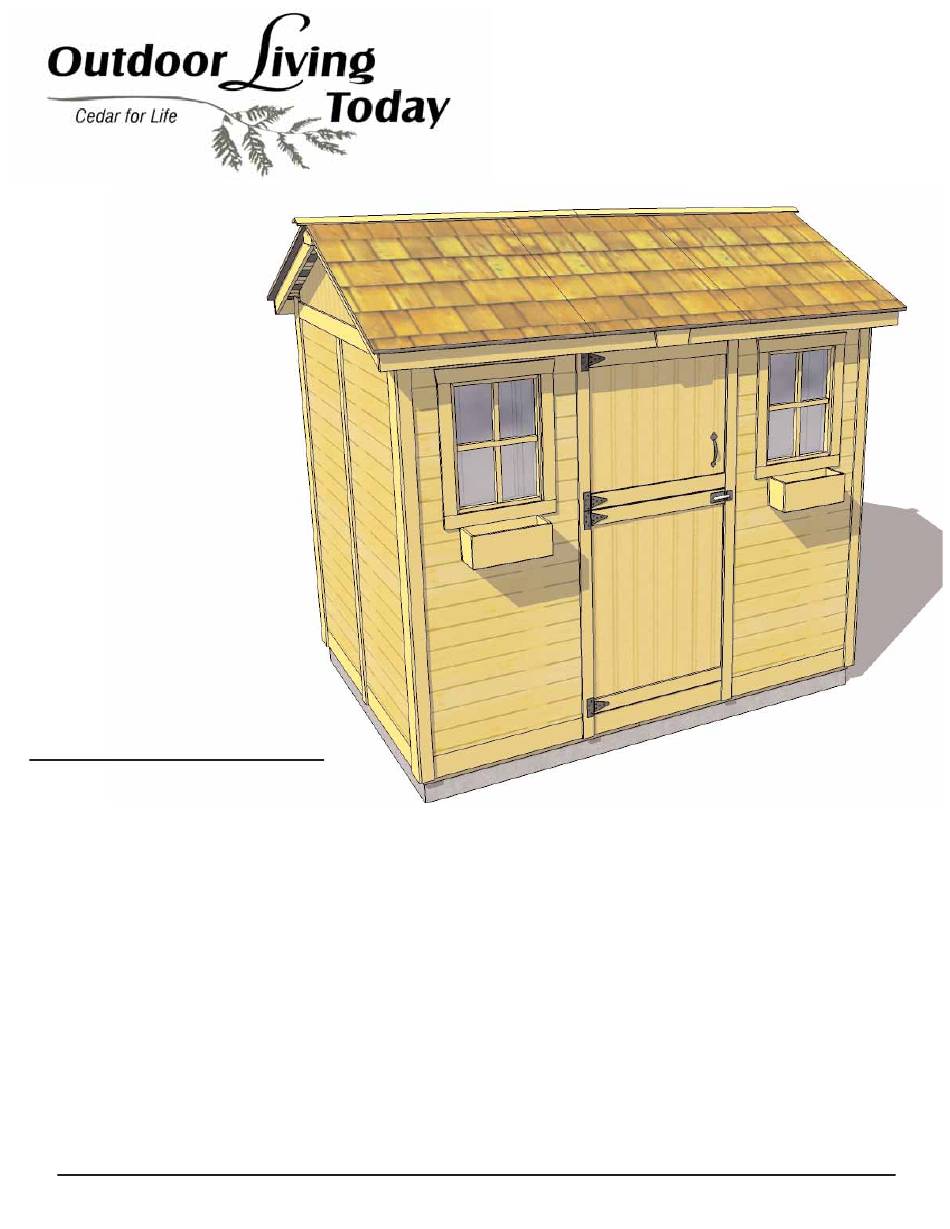

Thank you for purchasing
a 9x6 Cabana. Please take
the time to identify all the
parts prior to assembly.
Note, The General Assembly
Manual illustrates a Door
Configuration in the front
center location. The Door can
also be positioned in the front
corners. To correctly configure
Door in front corners, follow
general assembly steps and
refer to Page 25 for required
changes.
Safety Points and Other Considerations
Our products are built for use based on
proper installation and normal residential
use, on level ground. Please follow the
instruction manual when building your
shed and retain the manual for future
maintenance purposes.
Some of the safety and usage measures you may wish to consider include:
-snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it is advisable to sweep the
snow off the roof(s).
-if the product is elevated, any structural and building code requirements are solely the customer's
responsibility, and should be abided by.
-in high or gusty wind conditions it is advisable to keep the structure securely grounded.
-have a regular maintenance plan to ensure screws, doors, windows and parts are tight.
Customer agrees to hold Outdoor Living Today Partnership and any Authorized Dealers free
of any liability for improper installation, maintenance and repair.
1-888-658-1658
www.outdoorlivingtoday.com
Page 1
9x6 Cabana
Assembly Manual
Version #3
May 2007
sales@outdoorlivingtoday.com
Advertisement
Related Manuals for Outdoor living today 9x6 Cabana
Summary of Contents for Outdoor living today 9x6 Cabana
- Page 1 -in high or gusty wind conditions it is advisable to keep the structure securely grounded. -have a regular maintenance plan to ensure screws, doors, windows and parts are tight. Customer agrees to hold Outdoor Living Today Partnership and any Authorized Dealers free of any liability for improper installation, maintenance and repair.
- Page 2 Thank you for purchasing our 9x6 Cabana. Please take the time to identify all the parts prior to assembly. Parts List: Corner & Wall Trim 4 - 1/2”t x 4 1/2”w x 82”l - Wide Corner Trim 10 - 1/2”t x 2 1/2”w x 79”l - Narrow Trim A.
-
Page 3: Floor Section
A. Floor Section Exploded view of all parts necessary to complete Plywood Floor Floor Section. Identify all parts prior to starting. Large (2) Plywood Floor Small Floor Joist Floor Joist Frames (3) Floor Runners Long (3) Concrete Pad Floor Runners (optional foundation method) Short (3) Inside Frame... - Page 4 17 1/2” Both Outside Floor Joist Frames require 1 interior Floor Joist attachment. Center Joist (17 1/2”) from Outside of Floor Joist Frame to center of Floor Joist and attach with 2 - 2 1/2” screws per end. Center Frame Position completed Floor Joist Frames with center frame in the middle.
- Page 5 With Floor Runners attached, carefully flip the floor over and place on your foundation. Caution- you will need 2 Concrete Slab people to assist you. Be careful when laying floor down not to Foundation bend or twist floor. When in place, level floor completely. Foundations Note: The floor will be flipped over and floor runners will sit on your foundation.
- Page 6 B. Wall Section Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to starting. Front and Rear Top Wall Plate (4) Angle cut down length Side Gable Wall Panel (2) Side Top Wall Plate (2) Angle cut on end Door Header Window Insert...
- Page 7 Wall Plate Starting with Solid Wall Panels, carefully lay panel face down. Position and attach Wall Plate to bottom of wall studs of each wall panel with 6 - 2 1/2” screws. Position so plates are flush with framing. Starting at Rear Corner, position a Solid Wall Panel on top of plywood floor.
- Page 8 Outside 2x3 frame of wall panel is flush Position 1st side wall panel on plywood floor so with outside of plywood when properly once again 2x3 wall plate is sitting flush on floor. aligned. Siding will overhang. Position panel so 2x3 framing sits flush with rear wall framing.
- Page 9 Complete attachments of remaining side walls as per Steps 11-15. Locate both Window Inserts. Place Window Insert into wall opening tight to wall siding. On the inside, shim Window Insert evenly in cavity. Kits include one additional shingle for shimming of the window.
- Page 10 Flush Outside Attach both Vertical Door Jambs to door Attach Door Header to vertical door opening wall studs with 4 - 2 1/2” screws per Jamb. Position so jamb is flush with outside wall paneling. jambs with 4 - 2 1/2” screws per side. Make sure jamb is flush with outside wall paneling once again.
- Page 11 Next, attach the Front Top Plates (2 per side). The front and rear top plates are angle cut down the length. Once again, position top plate on wall frame so it is flush. Front and rear top plates will fit between side top plates. Attach with 4 - 2”...
- Page 12 C. Rafter and Roof Section Exploded view of all parts necessary to complete the Roof Section. Identify all parts prior to starting. (Roof Filler Shingles Missing) Outside Middle Roof Roof Panels Panels (2) Roof Rafters (9 per side) 18 Tot. Outside Roof Panels (2)
- Page 13 Ridge Board Locate 9 Rafters, 2 Soffits and completed Ridge Board. Lay out on level ground as shown to the right. Double up Rafters as illustrated . Soffits Double up Rafters Attach completed Ridge Board to ends of both outside rafters with 2 - 1 1/4” screws per end. Measure and position interior Rafters as illustrated below.
- Page 14 Flip Rafter Section over so Soffit is down. Starting with the rear Side, lift completed rafter section up and place of gable framing. Slide Rafter Section up on gable framing until bottom of Ridge Board slips into gable notch. Gable Notch Soffit should sit flush against wall panel.
- Page 15 Place 2nd completed Rafter Section on gable walls in the front Position as per Steps 31 & 32. Offsetting Ridge Board Connectors Gable Notch At the peak, align Ridge Boards so they are flush together and secure them with 12 - 1 1/4” screws. Important- if there is a gap between Ridge Boards, try pushing side walls closer together from outside.
- Page 16 Roof Gussets are positioned on middle rafters. Prior Complete remaining 2 Gussets as to attaching, make sure front and rear walls are properly per Step 36. aligned. Have two helpers push the front and rear walls at the top from the outside of shed until inside to inside measurement between front and rear plates is 70”.
- Page 17 Roof Batten flush with rafter end. Place Outside Roof Panel so it sits flush on 3rd rafter from the outside (doubled up rafter). Lowest batten on roof should be flush with end of rafter at bottom. From the outside, screw down through bottom row of shingles into rafter with 1 - 2.5”...
- Page 18 Outside Panel Middle Panel Outside Panel Position and attach Front Roof Panels as per Steps 39-42. 3” screws Strong Ties To further secure roof panels, from the inside, locate pre-drilled holes in Mid Rafters. Using 2 - 3” screws, secure rafters to roof battens. Note, from Roof Filler Shingles are included to cover outside, push roof panel down so batten sit flush roof seams.
-
Page 19: Miscellaneous Section
D. Miscellaneous Section Exploded view of all parts necessary to complete the Miscellaneous Section. Identify all parts prior to starting. Facia Detail Plate Ridge Caps Rear Wall Narrow Pentagon Facia Trim (2) Plates (2) Door Pull Handle Side Facia & Exterior Barrel Bolt Horizontal Gable Trim... - Page 20 Attach Bottom Skirting around the base of the shed. Skirting will hide floor framing. The side skirting pieces will meet together in the center. Gaps on outside will be covered by Wide Trim pieces later. Start with front and rear skirting pieces first and attach with 3 - 1 1/2”...
- Page 21 Position Trim flush with Bottom Skirting. At the top, Narrow Trim sit flush with bottom of Soffit while Wide Trim will ride up on and site on side of end rafter. When correctly aligned, attach with 6 - 1 1/2” finishing nails per piece. Attach Rear Wall Narrow Trim (2 - 1/2”...
- Page 22 Front Facia will overhang Side Facia. Attach Front Facia to roof rafter ends. There are 2 facia pieces per side. Secure with 6 - 1 1/2” finishing nails per piece. Roof Ridge Caps have roofing felt overhanging towards center. On top of the roof, position the two Roof Ridge Caps on roof peak.
- Page 23 Pentagon Facia Plate Attach Pentagon Facia Detail Plate Facia Plate where Side Facia meet at the peak. Use 4 - 1 1/2” finishing nails per piece to secure. Attach Facia Detail Plates to cover seam where Front and Rear Facia Trim pieces come together.
- Page 24 1/4” gap Place the Top Dutch Door Panel into place and gap top and bottom panel 1/4” apart. Use a Attach Horizontal Door Trim with shim once again to help you. Attach hinges to 4 - 1 1/2” finishing nails to cover Header.. trim with hinge hardware provided.
- Page 25 Alternate Door Configuration (Door on Left or Right of Center) When configuring the Cabana so the Door is positioned on the left or right of center wall panel in front. Follow the general directions in this manual for a regular door configuration and note the following changes.
- Page 26 Congratulations on building your 9x6 Cabana! Note; Our Sheds are shipped as an unfinished product. If exposed to the elements, the western red cedar lumber will weather to a silvery-gray color. If you prefer to keep the cedar lumber looking closer to the original color, we suggest that you treat the wood with a good oil base wood stain.
