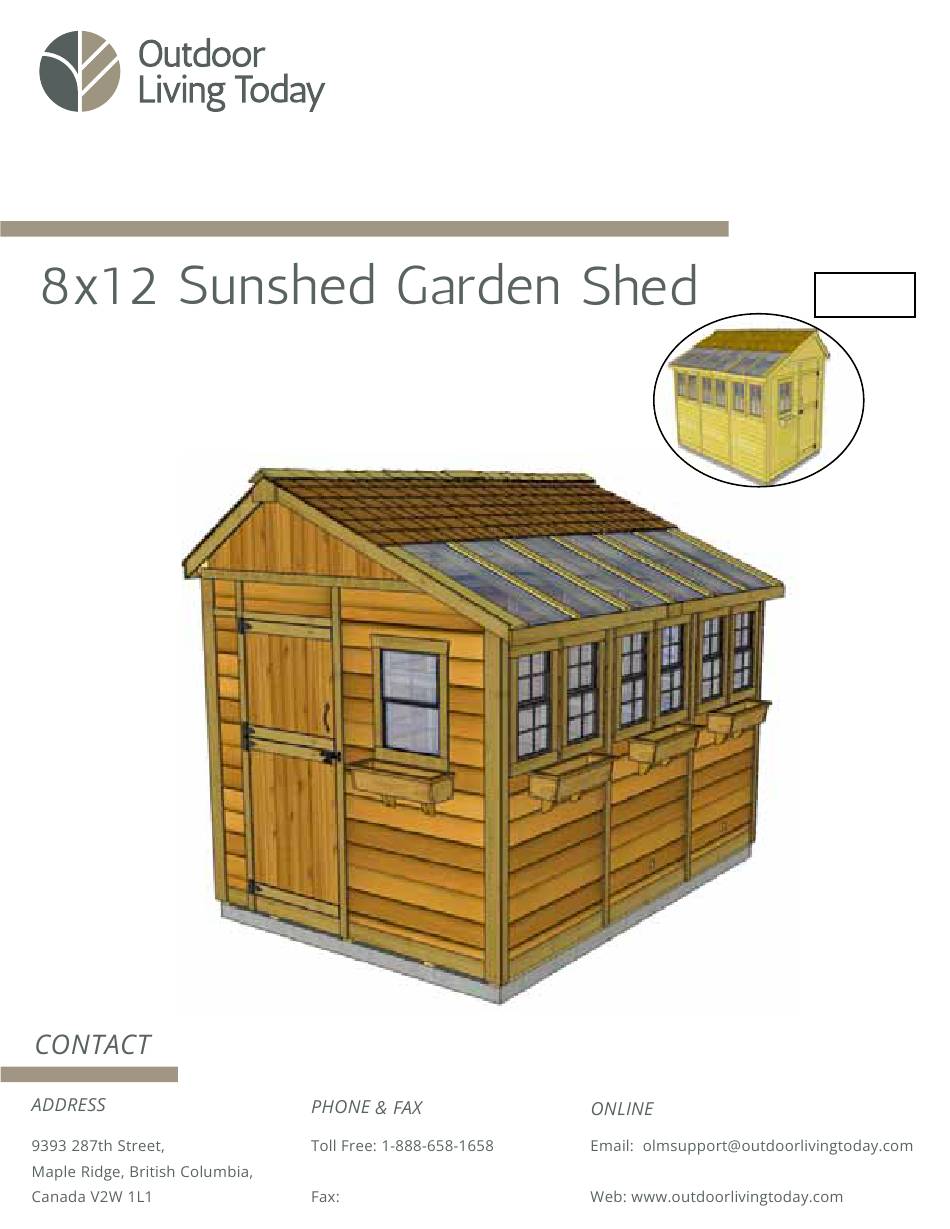

- Page 1 ASSEMBLY MANUAL Reversible Roof Lines Stock Code: SSGS812-AK/FJ/-CEDAR SSGS812-AK/FJ/-METAL SSGS812-AK/FJ/-PLY Version #1.2 April 7, 2025...
-
Page 2: What You Need To Know
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty. Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions. Warranty Customer agrees to hold Outdoor Living Today and any Authorized Dealers free of any liability for improper installation, maintenance and repair. - Page 3 You can find the footprint for your shed on Page 3 of your Assembly Manual. If doing the assembly yourself, have all the necessary tools ready to go and in working condition. A list of required tools can be found after the parts list. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 3...
- Page 4 Concrete Foundation Floor Frame 108” 18 5/8” 148 1/2” Gravel Foundation Gravel Foundation with treated stringers Completed Foundation 108” 25 Patio Stones 148 1/2” Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 4...
- Page 5 Note: Trim and Skirting pieces are graded with the best face being rough sawn. Rough sawn cedar is much easier to paint and stain. 6 - 1/2” x 1 1/2” x 45 1/4” - Top Wall Trims - Bevel Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com...
- Page 6 Metal Roof x 36 1” Hanger x 3 Silver 1/4” Nut Driver Hardware Kit - PLYWOOD ROOF (Provided) x 24 1” 2 1/2” Silver 90° Metal x 68 1 1/4” 3/4” x 12 Brackets Silver Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 6...
-
Page 7: Tools Required
Tools Required (Not Provided) Screw Gun/Drill Tape Measure Wood Clamp 3/8” Wrench Hammer Utility Knife Pliers 1/8” & 3/8” Drill Bits Level Ladder Safety Equipment Required (Not Provided) Safety Glasses Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 7... - Page 8 Regular Maintenance & Tips to Prolong the Life of Your Shed. Small gap between bevel siding and window trim Dab of caulking Wall Panel Floor Plywood Floor Joists Foundation Strip of roofing paper over Floor Runner Sill Gasket apex of roof panels Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 8...
-
Page 9: Floor Section
Frames Small (3 Floor Runners (10) Floor Joist Frames Large (3) Concrete Pad (optional foundation method) You can find the Square Drive Bit for the screws in with the Hardware Kit Bag. Flush with framing Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 9... - Page 10 Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 10...
- Page 11 It is important to note that having a level foundation is critical. Choosing a foundation will vary between regions. Typical foundations can be concrete pads or patio stones positioned underneath the floor runners. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 11...
- Page 12 Concrete Slab Foundation Hint: Use a chalk line to mark location of floor joists to determine screw placement. plywood pushed together at seams. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 12...
- Page 13 Lay out Panels and Panel Orientation Pieces as illustrated below. Important: If you prefer Polygal Roof Panels on left side when facing front, position wall panels as illustrated above. Follow general assembly directions note opposite orientations. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 13...
- Page 14 Do Not Attach Walls To Floor until Step B16. Outside 2x3 Left Side Wall Panel framing of wall panel is flush with outside of floor framing when properly aligned. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 14...
- Page 15 2x3 wall framing flush with floor framing. Vertical Wall Studs. Studs aligned evenly. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 15...
- Page 16 Wall panel will sit flush with floor framing at front of shed. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 16...
- Page 17 Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 17...
- Page 18 Jamb sits flush with outside of siding. Dado cut on edge Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 18...
- Page 19 Optional: Caulking seams will help prevent moisture from entering. Caulking is included to complete Polygal Windows only. Additional Caulking may be required. Lap Siding of panels will fit together. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 19...
- Page 20 Tip of 33 3/4 degree Top Plate flush with wall framing Flush to inside of wall framing Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 20...
- Page 21 Top Plates should be flush 22 1/2 degree angle with inside of wall framing. follows angle of wall. Front Top Plate Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 21...
- Page 22 1/2” below framing Flashing to overhang wall Straight Edge Triangular Gable Trim attached in Step E5. 2 - 2” Screws Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 22...
- Page 23 Follow Steps C1 - C3 to Assemble Rafter Sections. Make sure to complete on a flat level surface. Please note the differences between the Long and Short Rafters Sides. Long Rafter Side Metal Ridge 8 - 3/4” screws Board Connector Ridge Board Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 23...
- Page 24 Short Rafter Side offset from Long and Important: Pilot Short Roof Sides Hole Ridge Board Soffit prevent splitting! Expert Advice: Use Polygal panel to confirm correct width. See Step D1 Long Rafter Side Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 24...
- Page 25 Short Roof side are offset. See Step C9. Slight gap between wall and soffit. Bottom of Ridge Board fits in gable notch. Top of Ridge Board will sit 1/2” lower than short rafter side ridge board. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 25...
- Page 26 Offsetting Metal Ridge Board Connectors. Important: If Gable framing does not line up with Rafters, remove temporary 2” screws from gable framing (B26), re-align gable and proceed to Step C10. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 26...
- Page 27 33°. Use correct bracket for each side. Leave a 1” gap from top of rafter 1/4” gap Further secure Cleats with 2 - 1 1/4” screws. Important: Drill pilot holes to prevent splitting! Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 27...
- Page 28 D. Roof Section - Cedar Shingles flush Shingles with plywood overhang plywood Roof Plywood flush with rafter end. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 28...
- Page 29 45 1/2” wide Center Roof Panel Angle screw from outside rafter into roof plywood. Roof Panel sitting equally on Rafters Shingles overhang plywood on outside Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 29...
- Page 30 Long Rafter Side 1st Roof Panel 2 1/2” Screw small gap between panels Slight Gap between Roof Panels. Long Side will sit slightly past center. screw from inside Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 30...
- Page 31 Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 31...
- Page 32 4 - 90° Metal Brackets / Gable. 2 - 2 1/2” Screws Nailed each Mid Rafter Important: Butt (thick) end of Ridge Cap will be facing towards the outside of shed. thin end thick end Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 32...
- Page 33 Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 33...
- Page 34 Batten Spacer Roof Batten 48 1/4” (12) Short 13 1/2” (4) Roof Batten 45 1/2”(6) Batten Spacer Long 13 3/4” (4) Overhangs outside Centered on 4th Rafter by 2 3/4” Rafter. Polygal Side Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 34...
- Page 35 Batten Spacers 13 3/4” Long Flush with Batten Spacer. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 35...
- Page 36 Short Roof Side 13 1/2” Batten Spacer Important: Do not fasten down Roof Panels with Hangers still in place. Metal Roof Hangers will temporarily help keep Metal Roof Panels in place before they are fastened. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 36...
- Page 37 Approximately 4” of overhang. Bead of Caulking Bead of Caulking Important: When attaching metal roof panels, screw into peaks of roof panels and not valleys Important: Metal Roof Hangers will be removed in Step D11. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 37...
- Page 38 Important: Remove Metal Roof Hangers Screw into center of Roof Battens Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 38...
- Page 39 Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 39...
- Page 40 Exploded view of all parts necessary to complete the Roof Section. Identify all parts prior to starting. Outer Plywood Roof Panels (4) Outer Centered Short Roof Side Roof and 1/4” Panel 48” back. wide. 2 3/4” past rafter Slightly past Center Panel ridge board. 45 1/5” wide. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 40...
- Page 41 Outside Panel 48” wide. Outside Panel 48” wide x 37 1/2” long. Small Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 41...
- Page 42 Center Short Panel 45 1/2” wide Completed Polygal Side Roof Panels Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 42...
- Page 43 D. Polygal Roof Section - Cedar/Metal/Plywood Exploded view of all parts necessary to complete the Polygal Roof Section. Identify all parts prior to starting. Polygal Panels (6) Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 43...
- Page 44 Centre on supports Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 44...
- Page 45 Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 45...
-
Page 46: Miscellaneous Section
When installing trim, sort pieces according to color and pieces that are most pleasing to the eye. Start with least visible side and use the least desirable pieces first. Install trim to most visible sides as your skill installing trim improves. Vertical Trim 79” (8) Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 46... - Page 47 Gap in corner 3 pieces of Bottom Skirting per side Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 47...
- Page 48 Triangular Gable Trim Same vertical height as Wide Corner Trim. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 48...
- Page 49 87” Rear Wall Narrow Trim Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 49...
- Page 50 Outside (2) 2 1/2” wide 4 1/2” wide so it is even with 5 1/2” wide outside of plywood on roof. Cap overhangs rafter end by approx. 1” Plywood and cap evenly aligned. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 50...
- Page 51 Edge of plywood roof. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 51...
- Page 52 Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 52...
- Page 53 Bottom Door 3/8” gap at bottom.Evenly spaced on sides. 2” Black Bottom Skirting Screws 1/4” gap on inside. Slight gap. Top Trim overlaps bottom trim to prevent water from getting in. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 53...
- Page 54 Important: Drill pilot holes with 1/8” drill bit prior to securing with screws to prevent wood splitting. On 3/4” screw, drill shallow pilot hole only. 3/4” Screws 3/4” Screws 3/4” Screw Door Stops Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 54...
- Page 55 Requires sides of window. a large amount. Trim dado sits in flange. Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 55...
- Page 56 Completed Potting Shelf Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 56...
- Page 57 Outdoor Living Today Flower Box Assembly Instructions Exploded Side Trims (D) View Front Trim (C) End Caps (B) 1 1/4” Parts Lists: Nails (G) A - Base, Rear & Front Box Frames (3pcs) 3/4” x 5 1/2” x 23” B - End Cap Frames (2pcs) 3/4”...
- Page 58 Please call, write or email us at: Canadian Address United States Address 9393 287th Street P.O. Box 96 Maple Ridge, British Columbia Sumas, Washington Canada V2W 1L1 98295 Toll Line: 1.888.658.1658 Fax: 1.604.462.5333 sales@outdoorlivingtoday.com Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com Page 58...
